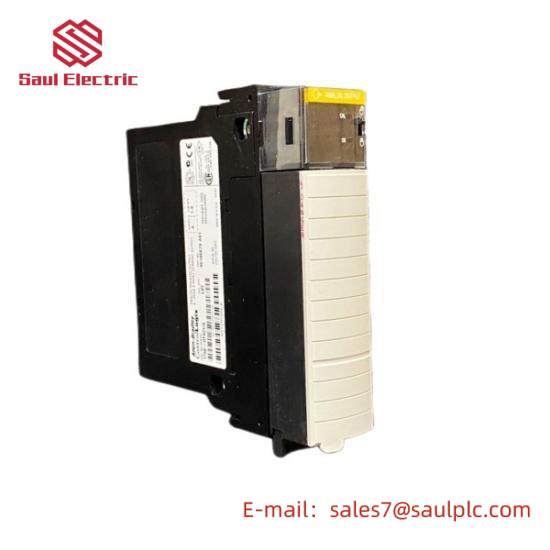

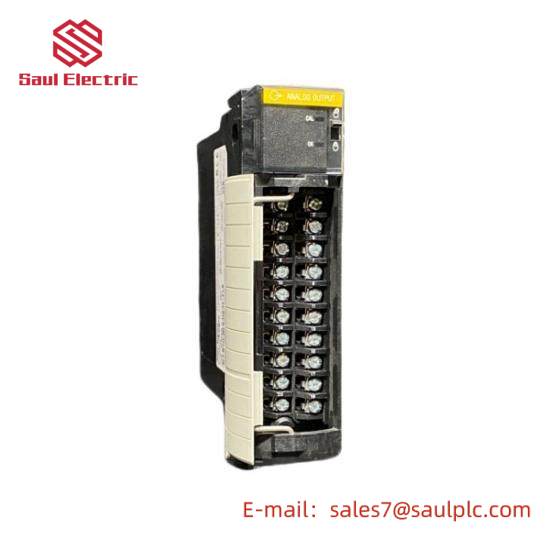

AB 1756-OF6C1 Analog Isolated Output Module, 4-20mA, 6 Point

Number of Points:6

Output Type:Analog, 4-20mA Current Loop

Power Supply Range:24V DC

Signal Accuracy:±1% of Full Scale

Environmental Rating:IP20, Non-Exempted

Operating Temperature:-20°C to +60°C

Dimensions (WxHxD):56mm x 44mm x 91mm

Mounting Type:Panel Mount

Connection:DIN Rail

Communication Interface:No Communication Interface

    The AB 1756-OF6C1 module is meticulously engineered for seamless integration into advanced industrial control systems. Its robust design ensures reliable performance under various environmental conditions, making it suitable for use in demanding manufacturing environments.

    Each channel of the module supports 4-20mA current output, enabling precise control over actuators, sensors, and other devices. The internal isolation circuitry provides protection against electrical noise and interference, ensuring stable data transmission.

    Equipped with a wide supply voltage range from 10 to 32V DC, this module offers flexibility in power sourcing. It can handle loads up to 25mA per channel, facilitating the control of a diverse array of industrial devices.

    With an operating temperature range of -20°C to +70°C, the AB 1756-OF6C1 can withstand extreme environmental conditions without compromising its performance. Its IP20 enclosure protects the module from dust and light splashes, enhancing durability and reliability.

    This module is compatible with major communication protocols such as ControlNet, DeviceNet, and EtherNet/IP, ensuring seamless connectivity within complex industrial networks. Additionally, it adheres to international safety and compliance standards, including UL listing, CE marking, and CSA certification.
