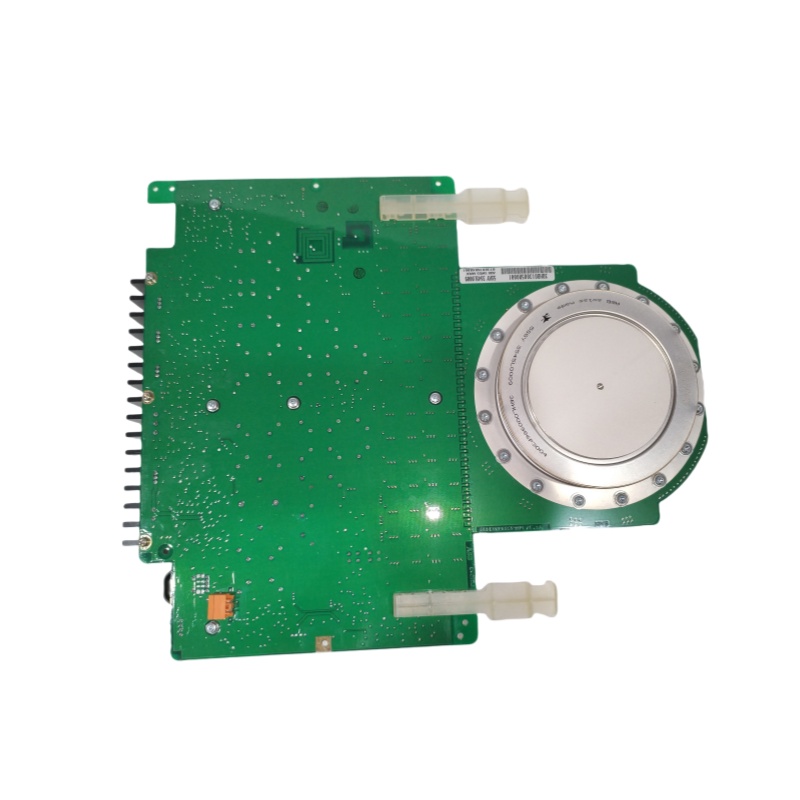

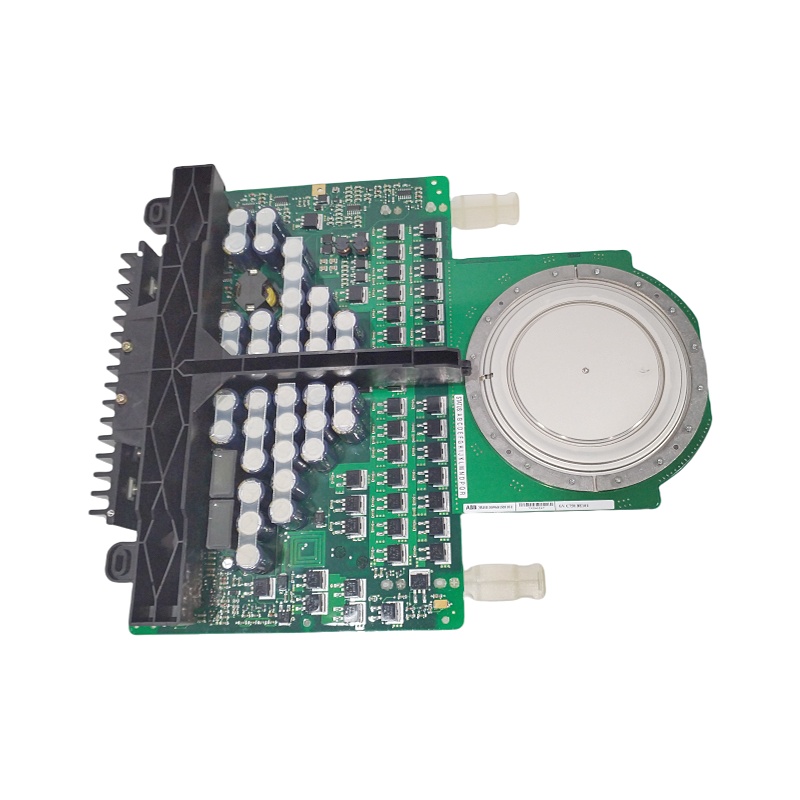

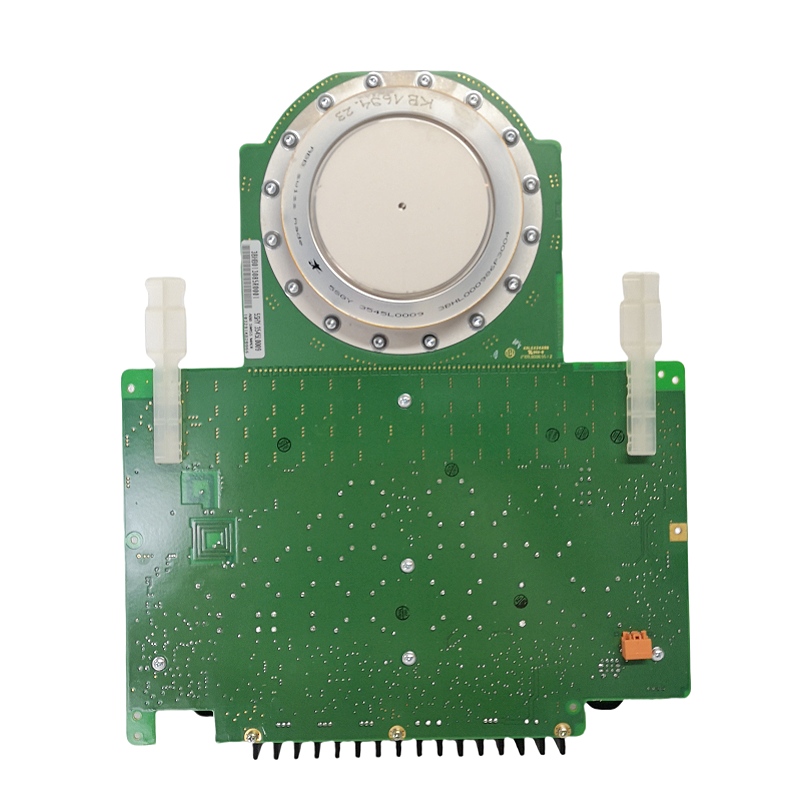

ABB 5SHY3545L0009
ABB 5SHY3545L0009 Overview
Product Type:
Integrated Gate-Commutated Thyristor (IGCT) module, part of ABB’s 5SHY series of high-voltage, high-current power semiconductor devices.
Main Function:
Provides high-speed, low-loss power switching for HVDC transmission, power inverters, traction drives, and large industrial motor control systems.
Key Technical Specifications (Typical Values)
| Parameter | Typical Value / Range |
|---|---|
| Rated Voltage | 4.5 kV |
| Rated Current | 3 500 A |
| Peak Turn-Off Current | 6 000 A |
| Switching Frequency | ≤ 20 kHz |
| On-State Voltage Drop | ≤ 2.5 V @ 3 500 A |
| Operating Temperature | –40 °C ~ +85 °C |
| Protection Rating | IP67 |
| Dimensions | Approx. 180 mm × 90 mm × 50 mm |
| Weight | Approx. 2.5 kg (also available in 60 kg version) |
| Rated Power | Approx. 21 MW (based on 6 kV, 3 500 A) |
Note: Specifications such as voltage, dimensions, and weight may vary slightly among suppliers or datasheet revisions. It is recommended to confirm the exact model (e.g., 3BHB013085R0001, 3BHE009681R0101, GVC750BE101) before procurement.
Typical Application Fields
- High-Voltage Direct-Current (HVDC) Transmission – Used as a converter valve module for high-power DC transmission.
- Renewable Energy Grid Integration – Serves as a high-voltage, high-current switching device in wind and photovoltaic inverters.
- Railway Traction Systems – Enables efficient power conversion in traction motor drives.
- Large Industrial Drives – Supports high-power motor control in industries such as metallurgy, chemical processing, and paper manufacturing.
Associated Components (Common Matching Parts)
- 3BHB013085R0001 – Main IGCT module body
- 3BHE009681R0101 – Gate driver unit
- GVC750BE101 – Cooling or control board
These components are often integrated within the same IGCT control system to provide a complete power-switching solution.
Summary
The ABB 5SHY3545L0009 is a high-voltage, high-current IGCT module rated around 4.5 kV (6 kV in some versions) and 3 500 A. It offers fast switching, low conduction losses, and IP67 protection, making it widely used in HVDC, renewable energy, rail traction, and large-scale industrial drive systems.
