ABB 5SHY3545L0016 GVC736CE101
ABB Components – Brief Overview

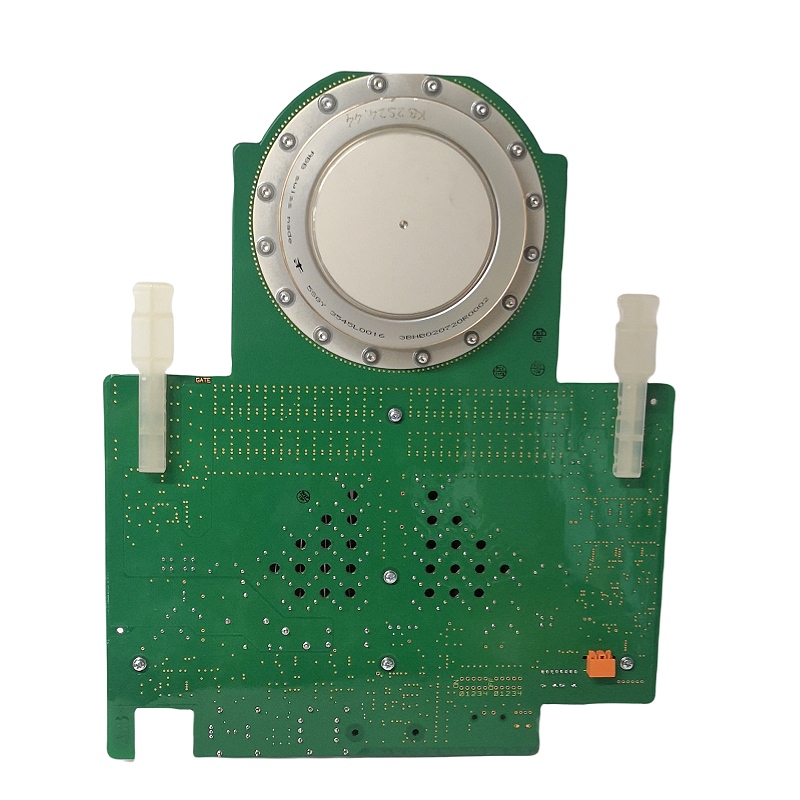

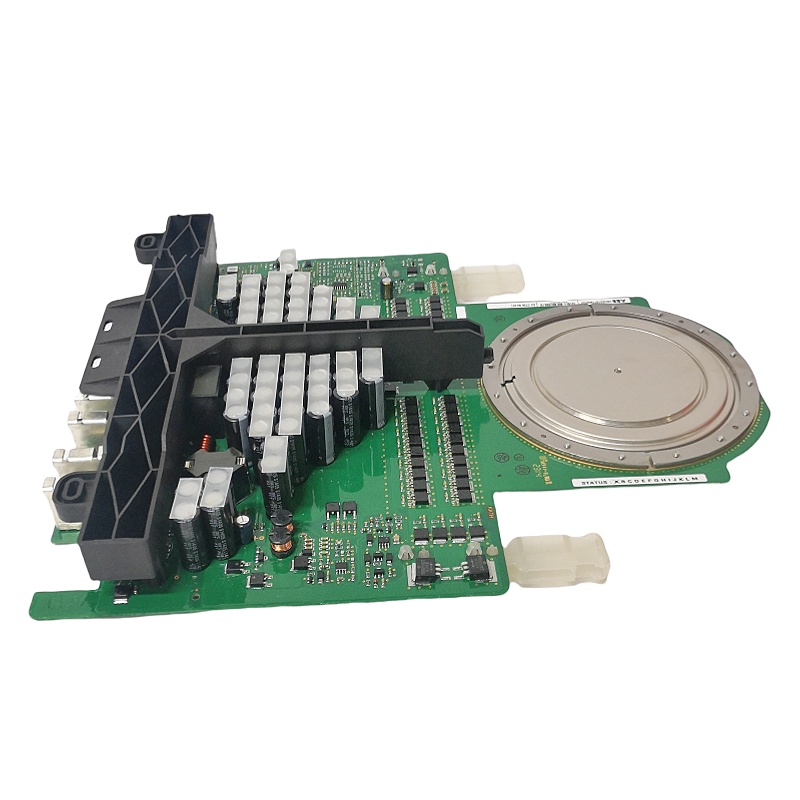

1️⃣ 5SHY3545L0016
Product Positioning:
A high-power Silicon Controlled Rectifier (SCR) / IGCT module from the ABB Ability™ Relay and Protection series, designed for industrial power control and regulation applications.
Main Technical Specifications:
| Parameter | Typical Value | Description |
|---|---|---|
| Rated Current | 16 A ~ 35 A | Some documents list 16 A, while others specify 35 A depending on version |
| Rated Voltage | 230 V ~ 400 V AC | Commonly 230 V AC or 400 V AC |
| Short-Circuit Breaking Capacity | 10 kA | Reference value |
| Package Dimensions | 32 mm × 18 mm × 81 mm | |
| Operating Temperature Range | –40 °C ~ +125 °C | |
| Protection Level | IP20 ~ IP40 | |
| Compatible Modules | 3BHB020720R0002, 3BHE019719R0101, GVC736BE101, etc. | Common companion components |
Typical Applications:
- AC/DC motor speed control systems, inverters, UPS units, wind power generation, and railway traction drives.
- Electric arc furnaces, metallurgical smelting, lighting dimming systems, and industrial robot power control circuits requiring fast switching and high reliability.
- As a high-power switching device, it allows small control signals to manage large power loads in automation control systems (SCR/IGCT function).
2️⃣ GVC736CE101
Product Positioning:
An ABB IGCT (Integrated Gate Commutation Thyristor) / Excitation Control Module, widely used in high-current, high-power electrical and automation systems.
Main Technical Specifications:
| Parameter | Typical Value | |
|---|---|---|
| Rated Current | 736 A | |
| Rated Voltage | 1200 V | |
| Operating Temperature Range | –40 °C ~ +125 °C | |
| Protection Level | IP40 | |
| Input/Output | 24 V DC power supply; Digital/Analog I/O (e.g., 8 DI + 4 AI, 4 DO + 2 AO) | |
| Communication Interfaces | Modbus, Profibus DP, Ethernet/IP, etc. | |
| Main Functions | SCR/IGCT switching, precise excitation current control, fast response, low EMI |
Typical Applications:
- Excitation control and current regulation in power plants and substations.
- High-power inverters, welding machines, UPS systems, wind power generators, and railway traction systems requiring high-current fast switching.
- Digital input/output modules in industrial automation systems for monitoring and controlling production lines, packaging, and conveying equipment.
📌 Summary
The ABB 5SHY3545L0016 is a high-reliability SCR/IGCT module suited for various high-power motor and power electronic control applications.
The GVC736CE101 is a higher-current IGCT/excitation control module designed for power systems requiring large current capacity and fast switching.
In many systems, the two are used together:
- 5SHY3545L0016 handles medium-power switching control,
- GVC736CE101 manages main power regulation or excitation control at higher current levels.
