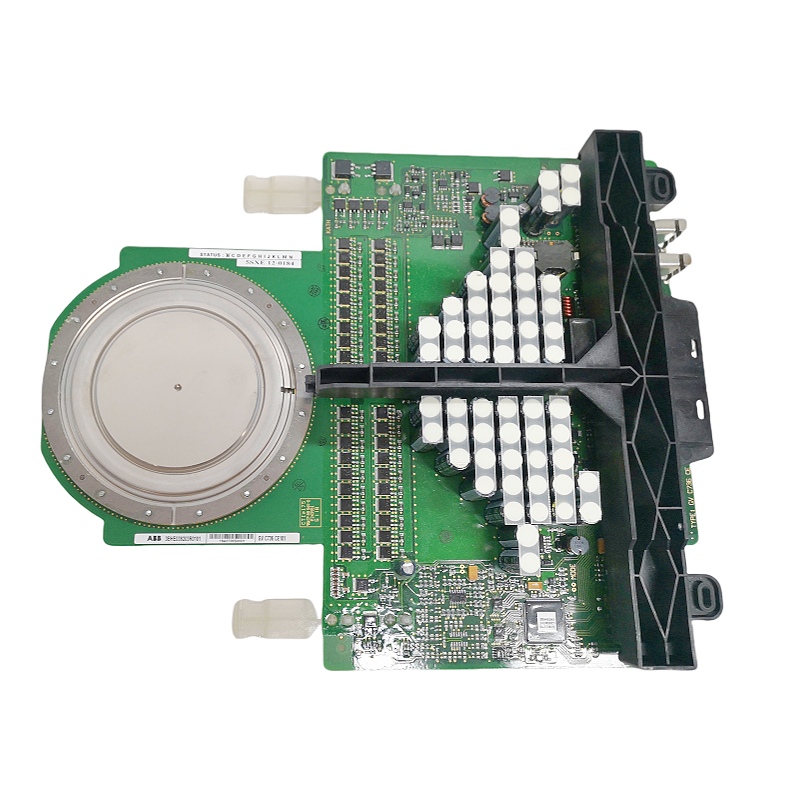

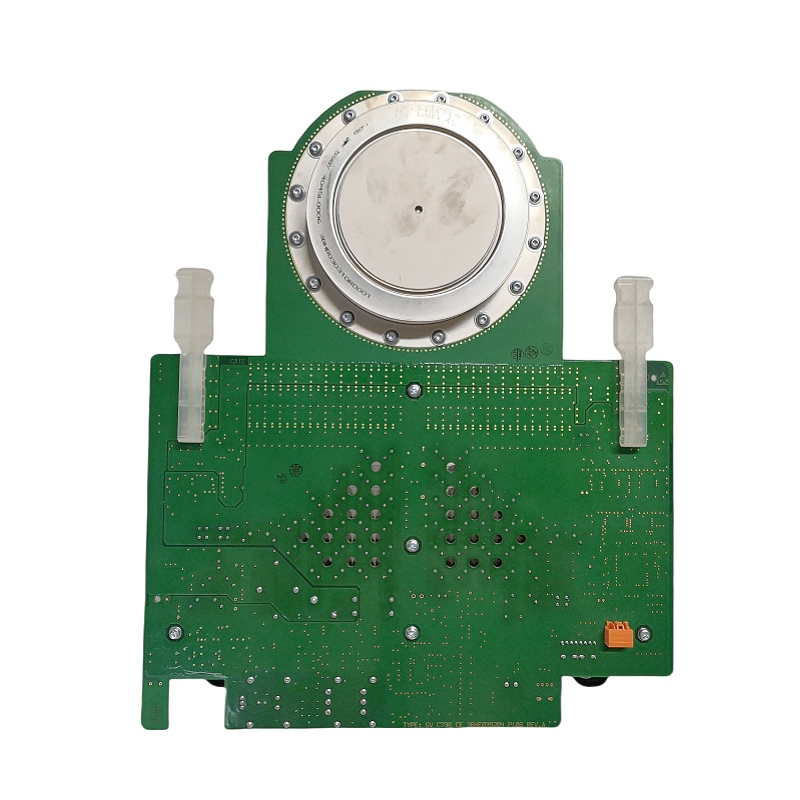

ABB 5SHY4045L0006 3BHB030310R0001 IGCT module

ABB 5SHY4045L0006 / 3BHB030310R0001

---

1. Product Overview

Type: High-voltage IGCT (Integrated Gate-Commutated Thyristor) module, part of the ABB Power Semiconductors series.
Ordering information:

• Main model: 5SHY4045L0006
• Sub-part number: 3BHB030310R0001 – identifies the specific package or assembly version of this module.

---

2. Key Technical Specifications

Note: Some distributors list a lower-power variant (e.g., 91 A), but ABB’s official datasheet specifies 4000 A as the maximum rated current for the 5SHY4045L0006 model.

---

3. Typical Applications

• HVDC (High-Voltage Direct Current) transmission: Core switching device in converter valves for AC-DC power conversion.
• Large industrial drives (e.g., wind turbines, water pumps, compressors): Provides reliable high-efficiency motor power control.
• Medium-voltage drives (ABB ACS800 series): Used in ABB inverter modules to enhance power density and switching performance.
• Renewable-energy inverters: Serves as the high-voltage power switch in photovoltaic and wind-power inverter systems.
• Power-electronics research platforms: Key component for high-voltage/high-current experimental setups.

These applications benefit from the IGCT’s high-voltage tolerance, large-current handling capability, low conduction losses, and fast turn-off performance.

---

4. Summary

The ABB 5SHY4045L0006 / 3BHB030310R0001 is a 4500 V, up-to-4000 A high-voltage IGCT module engineered for high-power power-electronic systems such as HVDC converters, industrial drives, and renewable-energy inverters. It offers high switching frequency, low power loss, and a wide operating-temperature range.
With a standard package size of approximately 225 mm × 100 mm × 75 mm and a weight of about 3 kg, it is fully compatible with ABB ACS800 series and other high-voltage variable-frequency platforms.
