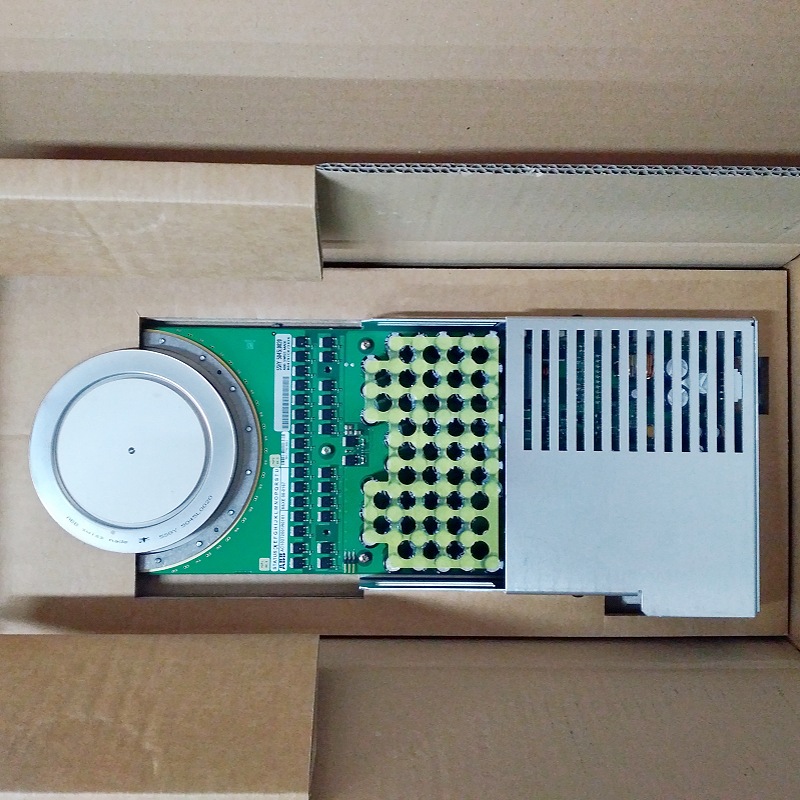

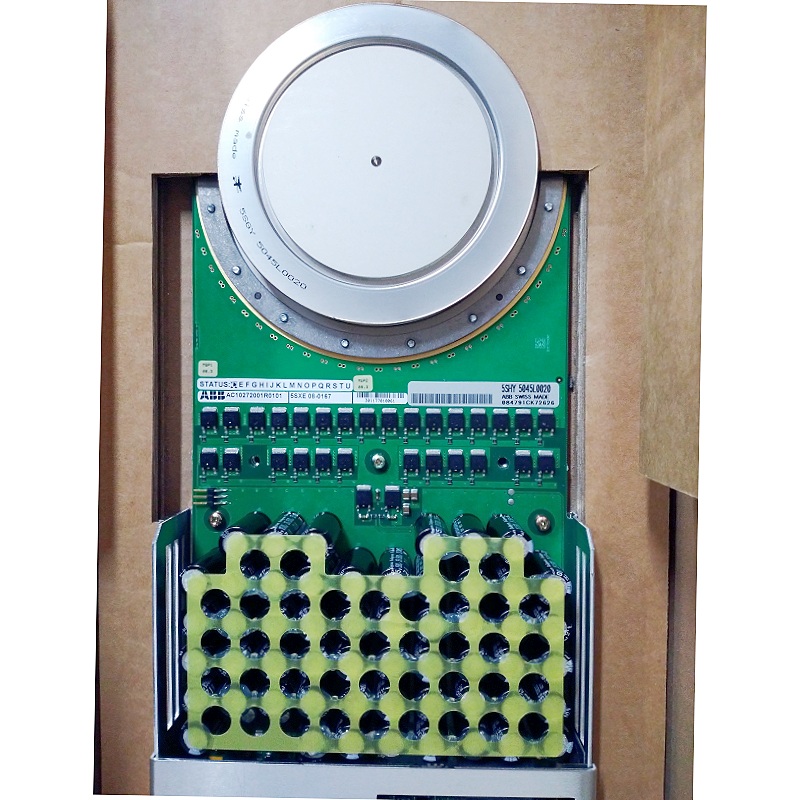

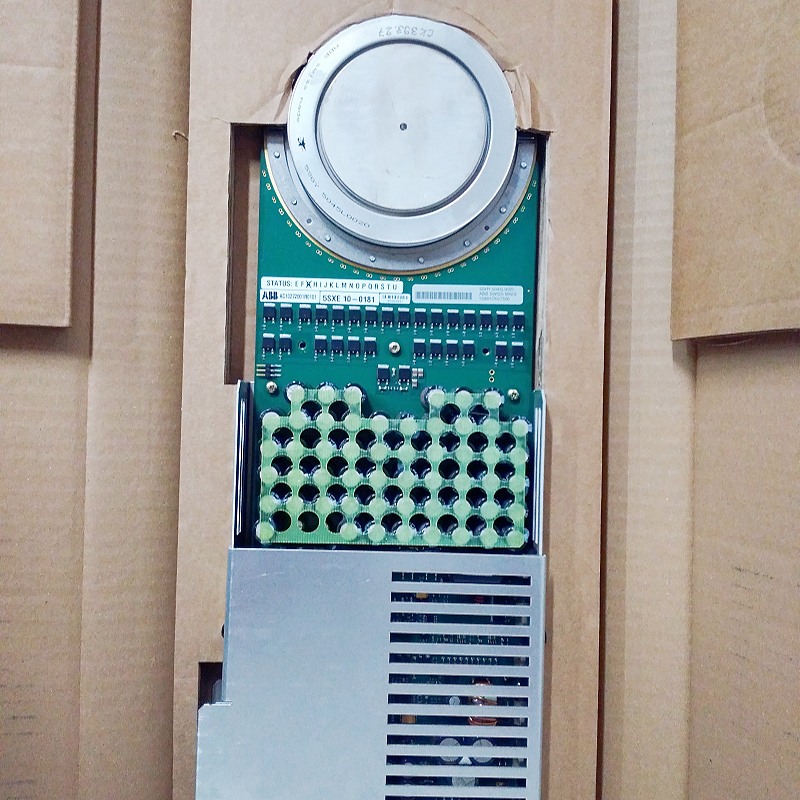

ABB 5SHY5045L0020 IGCT Power Module Overview
The ABB 5SHY5045L0020 is an IGCT (Integrated Gate-Commutated Thyristor) module from ABB’s 5SHY series, primarily designed for high-voltage DC (HVDC) systems and medium-/high-voltage power electronic converters.
Key Technical Specifications (as per official datasheet)
- Rated Voltage: 4500 V (with gate drive enabled); DC link voltage rated at 2800 V
- Rated Current: 4000 A; short-term surge current up to 35 kA
- On-state Voltage Drop V(T₀): approx. 1.15 V; on-state resistance rT ≈ 0.21 mΩ
- Maximum Turn-off Current: approx. 6250 A (HVDC specification)
- Switching Losses: approx. 125 J; conduction losses approx. 62.5 J
- Operating Temperature Range: -40 °C to +55 °C; water cooling optional
- Mechanical Dimensions (typical): Length 439 mm, Width 173 mm, Height 40 mm; Weight ≈ 18 kg
Main Application Areas
- Converter stations in HVDC transmission systems
- Power plants, steel mills, cement plants, marine, and pulp & paper industries
- Medium-voltage drives, power inverters, and other high-power electronic systems
Product Features
- High power density, fast switching, and low on-state voltage drop, improving overall system efficiency
- IGCT technology combines the high-speed characteristics of IGBT with the high-voltage capability of GCT
- Built-in redundancy and fault diagnostics, enhancing operational reliability
- RoHS compliant, suitable for demanding industrial environments
Summary:
The ABB 5SHY5045L0020 is a high-voltage, high-current IGCT power module engineered for demanding power conversion applications, widely used in HVDC converter stations and large-scale industrial power systems.
