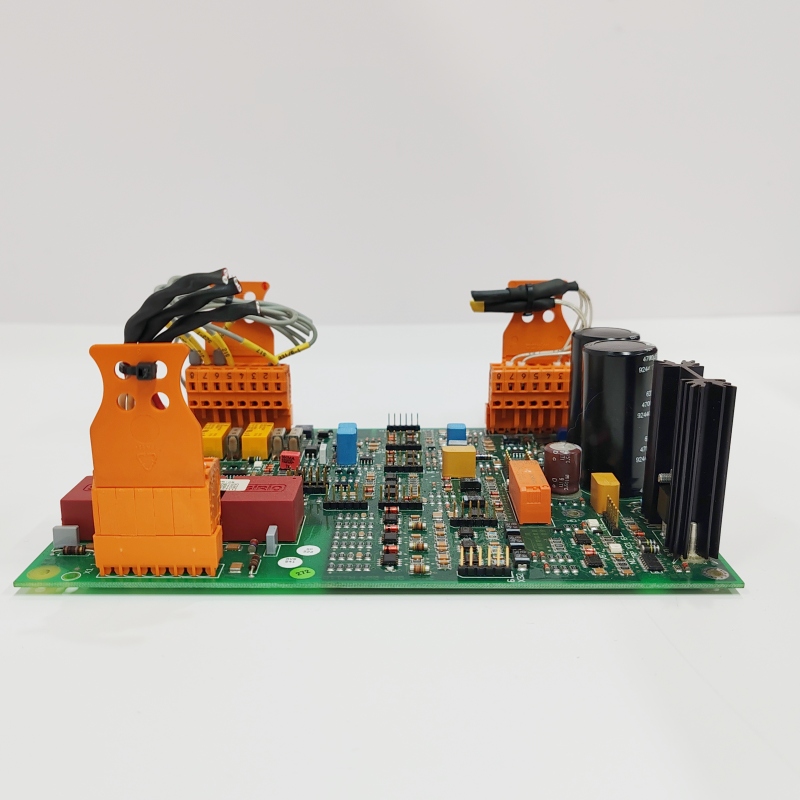

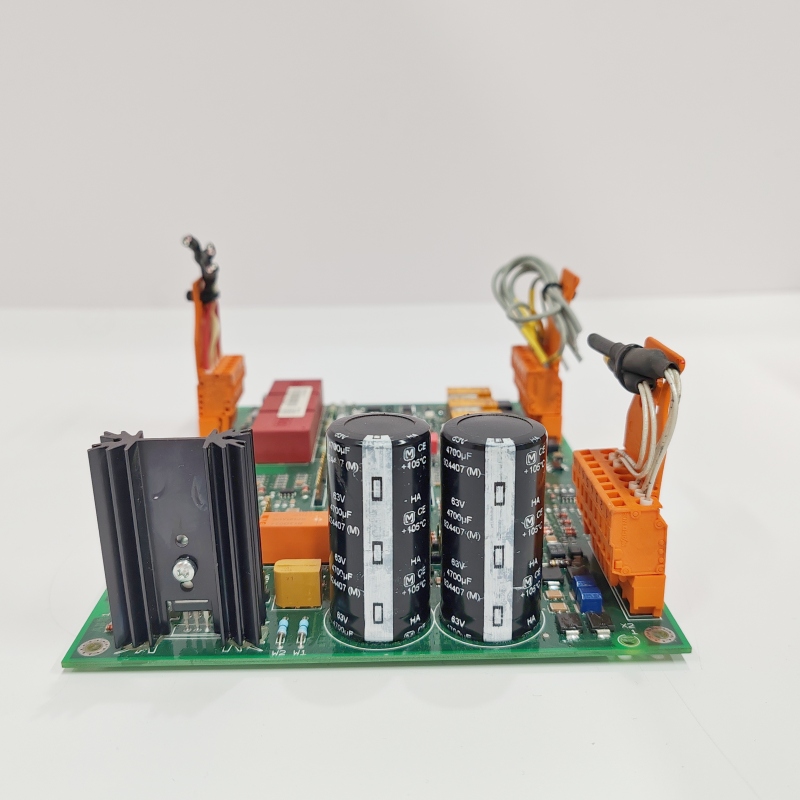

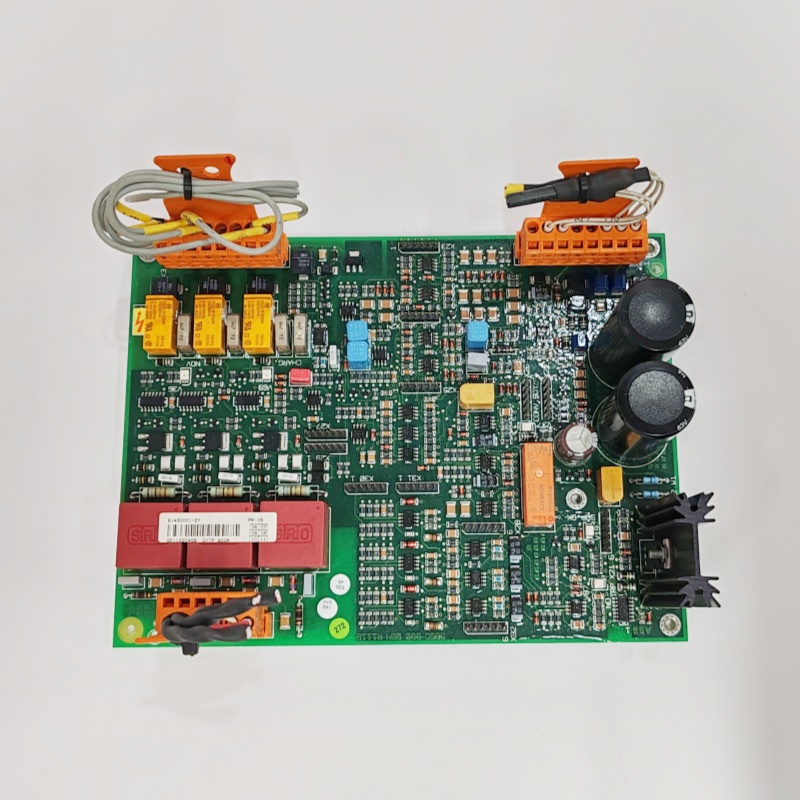

ABB DYTP600A 61430001-ZY protection relay

The ABB DYTP600A 61430001-ZY is a high-performance motor protection relay designed for industrial and power applications. Below are its key technical parameters:

General Specifications:

• Model: DYTP600A (Part No.: 61430001-ZY)
• Type: Digital Motor Protection Relay
• Application: Protects motors from faults like overload, short-circuit, phase loss, etc.

Electrical Parameters:

• Rated Current (Iₙ): Adjustable range (typically up to 600A, depending on CT rating)
• Supply Voltage:
  • AC: 110-240V AC (50/60Hz)
  • DC: 24-48V DC (optional)
• Relay Outputs:
  • Trip Relay: 2 NO + 2 NC (Changeover contacts)
  • Auxiliary Relays: Programmable for alarms/control
• Inputs:
  • Current Input: 3-phase + neutral (via CTs)
  • Binary Inputs: 4-8 programmable digital inputs

Protection Functions:

1. Overload Protection (Thermal Model)
2. Short-Circuit Protection (Instantaneous & Time-Delayed)
3. Phase Unbalance & Loss of Phase
4. Earth Fault Protection (Residual Current)
5. Locked Rotor / Stall Protection
6. Undercurrent / Underpower Protection
7. Start Supervision & Restart Inhibit
8. Temperature Monitoring (via PTC/RTD inputs, if supported)

Communication & Interfaces:

• Protocols: Modbus RTU (RS485), Profibus (optional)
• HMI Interface: LCD display with keypad for settings
• LED Indicators: Status & fault indications

Environmental & Mechanical:

• Operating Temperature: -20°C to +60°C
• Enclosure Rating: IP20 (panel-mounted)
• Mounting: DIN rail or panel-mounted

Certifications & Standards:

• Standards: IEC 60255, IEC 60947, UL 508
• EMC Compliance: IEC 61000-4 (Immunity & Emissions)

Typical Applications:

• Industrial motors (pumps, fans, compressors)
• HVAC systems
• Mining & cement industry

Main Brand:

ABB      Allen-Bradley      Alstom      Bently         Emerson     Foxboro

GE       MOOG       Schneider       Woodward       HIMA        Honeywell

ABB 5SHY series hot selling//large inventory//brand new//affordable price

First hand source, affordable price. Spot inventory!

•Shipping Port: Xiamen

•Ship to you via Fedex/DHL/TNT/UPS/EMS

•Package: Original packing with cartons

ABB 5SHY series hot selling//large inventory//brand new//affordable price

FAQ

Q:What is the earliest time when you can make delivery?

A:We will make delivery once received your payment.

Q:If the product can’t work, can it be returned?

A:We provide one year warranty.

Q:How easy is it to obtain items?

A:New are no longer continuously manufactured, and therefore supply is scarce.

However, at SAUL we specialize in sourcing hard-to-find products, and although

the lead time varies, the average is between 5-7 business days.

Q:What is the typical price for the items?
A:SAUL ELECTRIC always gives customers excellent service and prices that are highly competitive.Requirements for delivery and availability do affect pricing.
