ABB G3EA HENF315754R1

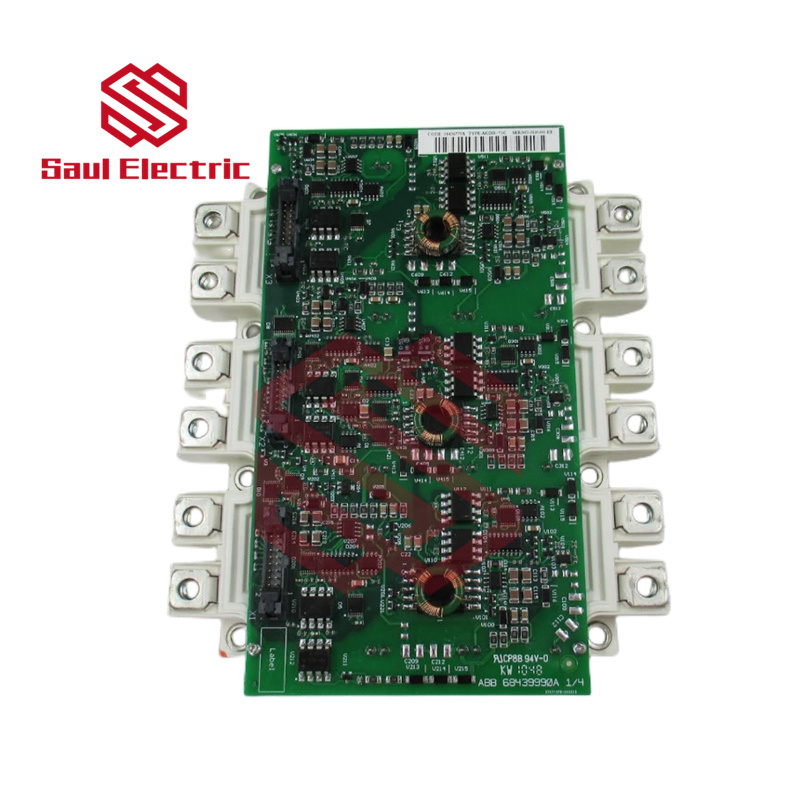

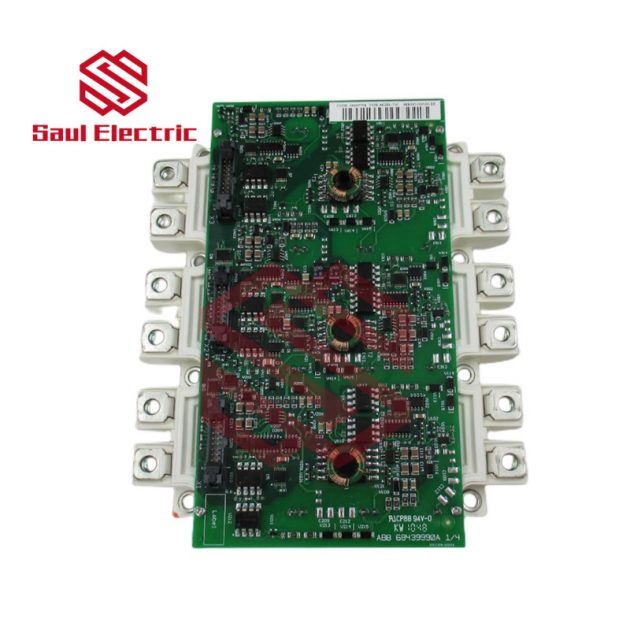

The ABB G3EA HENF315754R1 is a high-efficiency IGBT (Insulated Gate Bipolar Transistor) power module, commonly used in industrial drives, renewable energy systems, and traction applications. Below are its key technical parameters:
General Specifications:
- Manufacturer: ABB
- Model: G3EA HENF315754R1
- Type: IGBT Power Module (3rd Generation)
- Voltage Class: 1700V (typical for medium-voltage drives)
- Current Rating: ~300–600A (exact value depends on cooling & configuration)
- Configuration: Dual or HybridPack™ (Press-Pack IGBT)
Electrical Parameters:
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V<sub>CES</sub>) | 1700V |
| Nominal Current (I<sub>C</sub> at 80°C) | ~450A (varies with cooling) |
| Max. Pulsed Current (I<sub>CM</sub>) | 900–1200A (short-time) |
| Gate-Emitter Voltage (V<sub>GE</sub>) | ±20V (standard) |
| On-State Voltage (V<sub>CE(sat)</sub>) | ~2.1V (typical at rated current) |
| Switching Frequency | 1–10 kHz (optimized for efficiency) |
| Turn-On/Off Time | <1 µs (fast switching for reduced losses) |
Thermal & Mechanical Parameters:
| Parameter | Value |
|---|---|
| Junction Temperature (T<sub>j</sub>) | -40°C to +150°C |
| Thermal Resistance (R<sub>th(j-c)</sub>) | ~0.05–0.1 K/W (depends on cooling) |
| Cooling Method | Liquid cooling or forced air |
| Module Weight | ~2–3 kg (Press-Pack design) |
| Isolation Voltage (V<sub>ISO</sub>) | ≥4000V |
