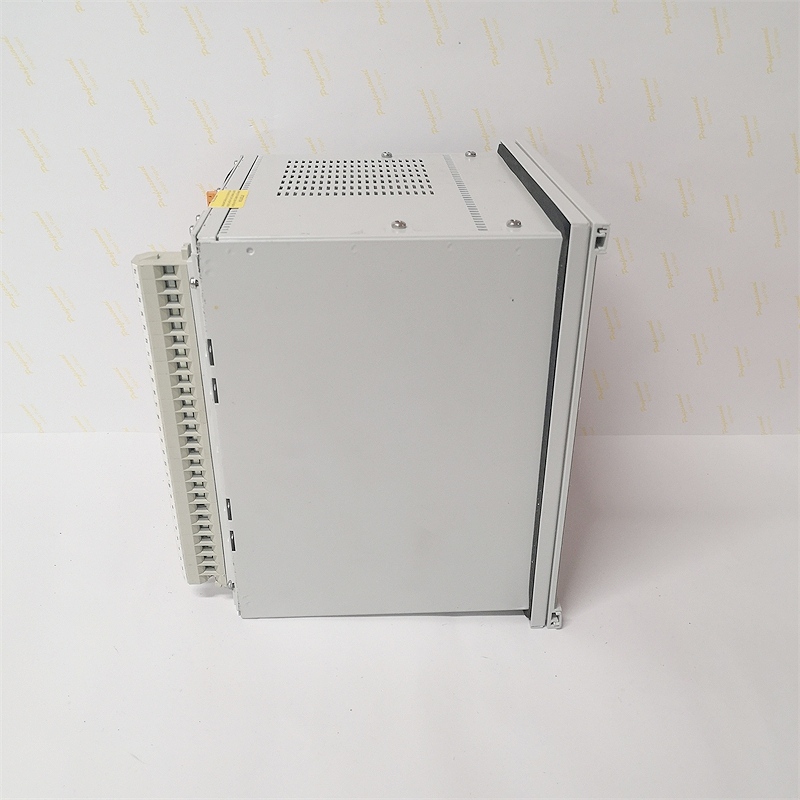

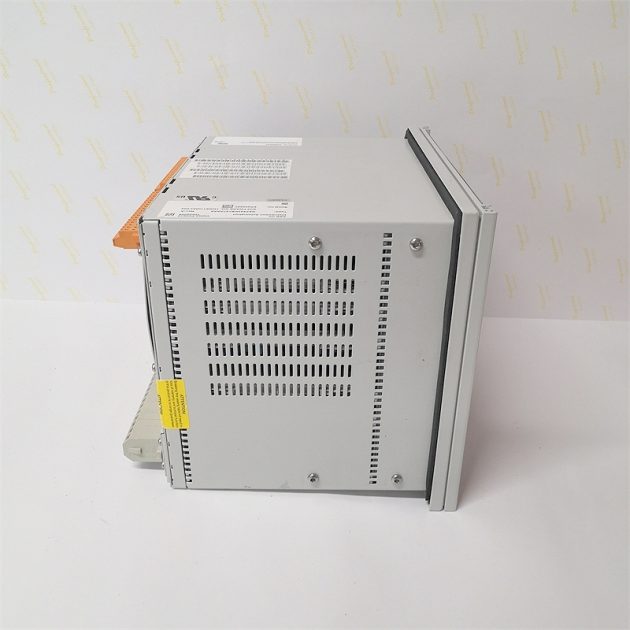

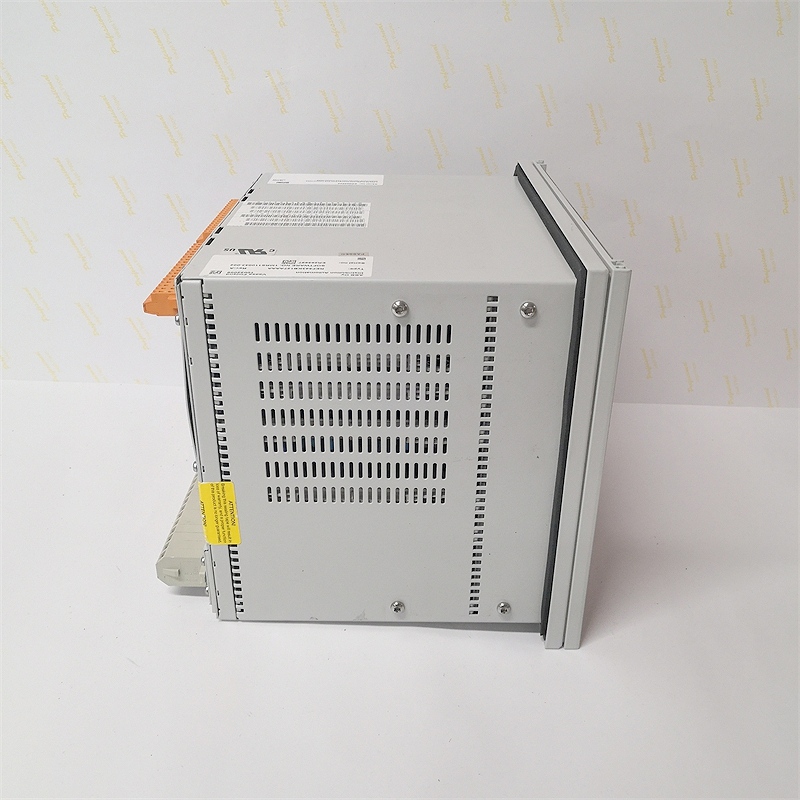

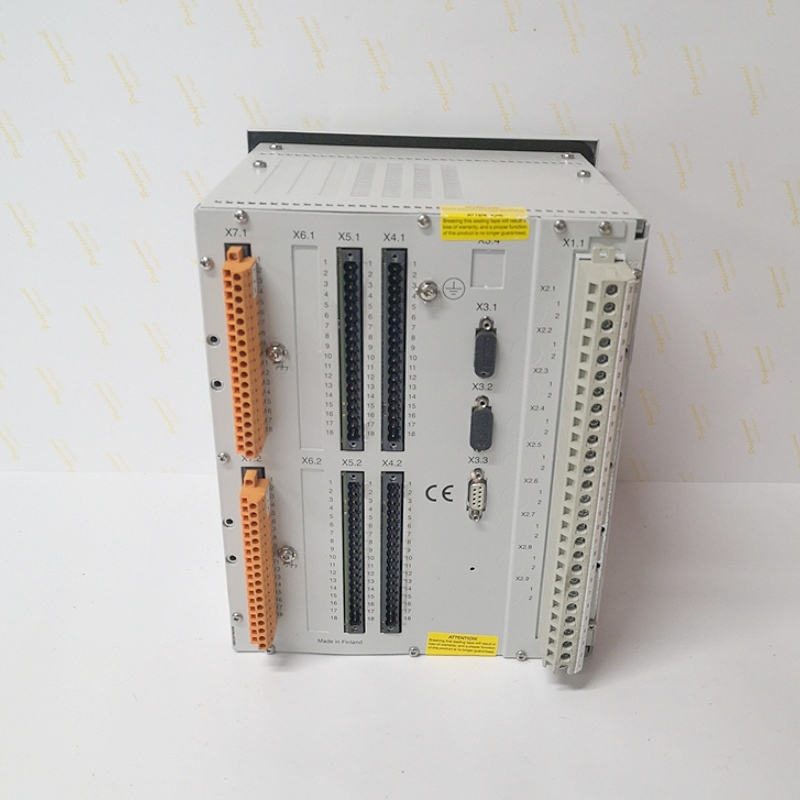

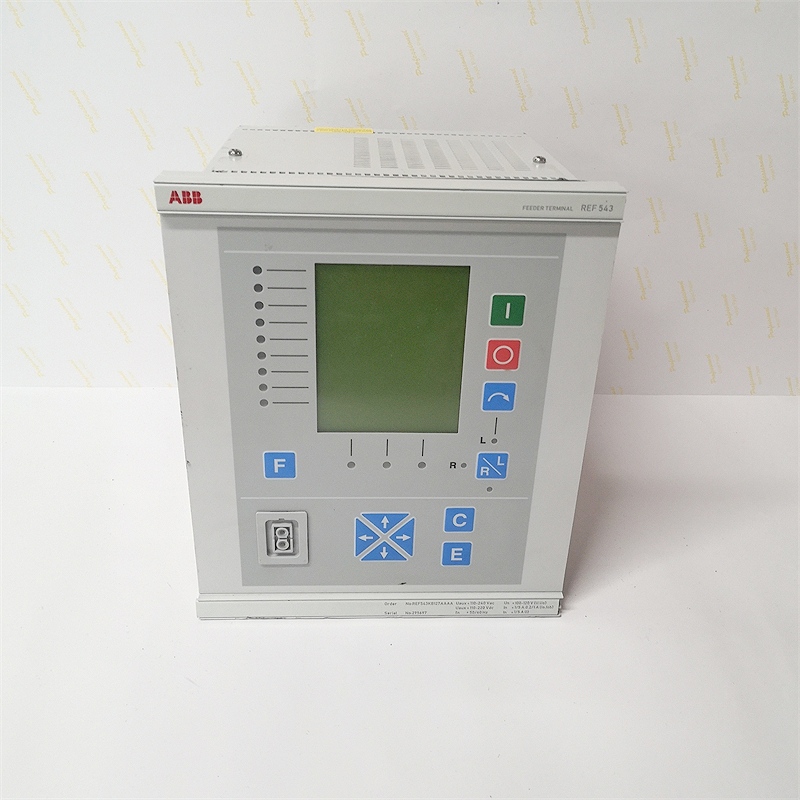

ABB REF543KB127AAAA control relay

The ABB REF543 is a versatile protection and control relay used in medium-voltage (MV) and low-voltage (LV) power systems. The REF543KB127AAAA is a specific variant designed for feeder protection, motor protection, or general-purpose automation. Below are its key technical parameters:

General Specifications:

• Manufacturer: ABB
• Model: REF543KB127AAAA
• Type: Numerical Protection Relay (IED – Intelligent Electronic Device)
• Application: Feeder protection, motor protection, earth fault protection, and automation in power distribution.

Electrical Parameters:

Power Supply:

• Rated Voltage: 110-240V AC/DC (or 24-48V DC, depending on variant)
• Power Consumption: Typically <10W

Inputs:

• Analog Inputs (Current/Voltage):
  • Current (I): 1A or 5A (configurable)
  • Voltage (U): Up to 690V AC (via VT)
• Binary Inputs: Typically 8-12 digital inputs (24V/48V/110V DC configurable)

Outputs:

• Relay Outputs:
  • 4-8 programmable NO/NC contacts (rated 250V AC/30V DC, 5A)
• Trip/Close Commands: For circuit breakers or contactors

Protection Functions:

• Overcurrent (50/51, 50N/51N): Phase & earth fault
• Directional Overcurrent (67, 67N): For grid selectivity
• Thermal Overload (49): Motor protection
• Under/Overvoltage (27/59): Voltage protection
• Breaker Failure (50BF): Backup tripping
• Arc Protection (optional): With external sensors

Communication & Protocols:

• Standard Interfaces:
  • RS485 (Modbus RTU)
  • Ethernet (IEC 61850, Modbus TCP) (optional)
• Protocols Supported:
  • IEC 60870-5-103
  • DNP3.0 (optional)
  • Profibus DP (optional)

Mechanical & Environmental:

• Housing: Compact, IP40/IP52 protection (front panel)
• Mounting: DIN rail or panel mounting
• Operating Temperature: -25°C to +70°C
• Humidity: 5-95% (non-condensing)

Certifications & Standards:

• EMC: Complies with IEC 60255-26 (immunity)
• Safety: IEC 60255-27 (insulation)
• Industry Standards: IEC 61850, IEEE C37.90

Additional Features:

• Event Logging: Stores 1000+ events
• Disturbance Recorder: Captures waveforms for fault analysis
• LCD Display: For local settings & monitoring
• Password Protection: Secure access control

Typical Applications:

✔ Industrial power distribution (switchgear, MCCs)
✔ Motor protection (pumps, fans, conveyors)
✔ Renewable energy systems (solar/wind farms)
✔ Microgrid & substation automation
