ABB S-093N 3BHB009885R0021

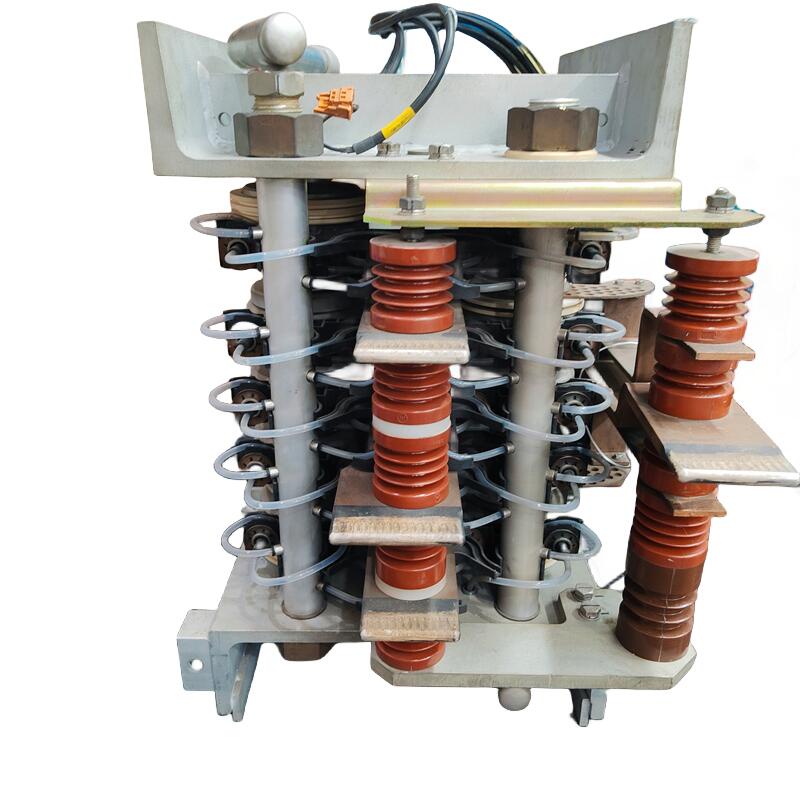

ABB S-093N Overview
Product Type:
High-voltage inverter phase module adopting IGCT (Integrated Gate-Commutated Thyristor) technology.
Order Code: 3BHB009885R0021
Manufacturer: ABB (Switzerland) — a core component of the ACS-series medium-voltage drives.
Key Technical Specifications
| Parameter | Value / Description |
|---|---|
| Rated Voltage | 3.3 kV (max. DC 4.5 kV) |
| Power Range | 4 – 40 MVA (per module), scalable up to 120 MVA in parallel |
| Topology | Three-level NPC (Neutral Point Clamped), bidirectional four-quadrant operation |
| Switching Device | 4500 V reverse-conducting IGCT |
| Efficiency | > 98 % (at full load, 50 Hz) |
| Cooling Method | Forced air cooling (standard) / Deionized water cooling (optional) |
| Control Interface | Optical fiber ST port, compatible with AC 800 PEC |
| Communication Protocols | Profibus DP, Modbus TCP, EtherCAT |
| Dimensions (L × W × H) | 320 × 190 × 130 mm |
| Weight | ≈ 9.5 kg |
| Protection Functions | Overload, short circuit, overvoltage, low-voltage ride-through, anti-islanding |
| Certifications | CE, UL, IEC 61800-4, RoHS |
Key Technical Highlights
- Press-pack IGCT without bonding wires:
Withstands short-circuit currents up to 10 × rated (10 ms); fatigue lifetime is approximately 3 times longer than conventional IGBT modules. - Three-level NPC + soft busbar design:
Stray inductance < 5 nH; turn-off overvoltage reduced by 15 %; dv/dt optimized to 3 kV/µs, reducing motor winding stress. - Four-quadrant energy recovery:
During braking or load reduction, energy is automatically fed back to the grid—no braking resistor required—saving 3–5 % energy annually. - Dual-mode cooling:
Air-cooling thermal resistance 0.08 K/W; water-cooling can reduce cabinet height from 2.2 m to 1.8 m, saving ≈ 20 % installation space.
Typical Application Scenarios
| Industry | Application Example | Value Added |
|---|---|---|
| Wind Power | 14 MW offshore unit (Inner Mongolia) using 3 parallel S-093N modules achieved 75 % voltage dip ride-through for 625 ms, meeting latest State Grid connection standards. | Improved grid connection reliability; reduced downtime risk. |
| Metallurgy | Hebei 2250 mm hot-strip mill (F4 finishing stand) upgraded with 6 S-093N modules (10 MW total). Rolling speed increased by 12 %; power consumption per ton of steel reduced by 6 %; annual energy savings ≈ 12 million kWh. | Higher productivity, significant energy savings. |
| STATCOM / Reactive Compensation | 14 MW offshore wind-farm STATCOM system using S-093N four-quadrant modules kept voltage fluctuations within ±2 %. | Ensures high-voltage ride-through and improves grid power quality. |
Selection & Procurement Recommendations
- Voltage and Power Matching:
Choose single or parallel modules based on system rated voltage (3.3 kV or 4.16 kV) and required output power. - Cooling Mode:
For space-constrained or high-dissipation environments, prefer deionized water cooling; for standard cabinets, forced air cooling is sufficient. - Control Compatibility:
Ensure use of ABB AC 800 PEC controllers or compatible fiber-optic interfaces to enable complete protection and monitoring functions.
