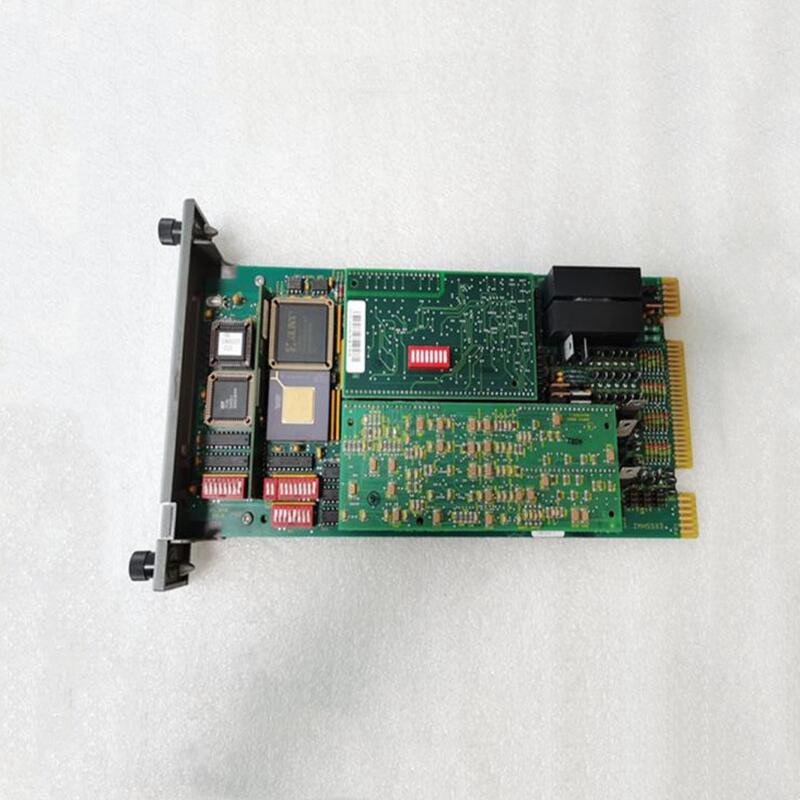

The ABB SPNPM22 is a high-performance network processing module developed by ABB, primarily designed for the industrial automation sector. This module offers a range of features and capabilities, making it suitable for various industrial applications.

Product Overview

The ABB SPNPM22 is part of ABB’s SPNP series of network processing modules, specifically engineered for data communication, remote control, and device integration within industrial automation systems. It supports a variety of communication protocols, including Modbus, Ethernet/IP, and Profibus, enabling seamless data transfer and control between devices.

Technical Specifications

• Processor: 32-bit RISC processor, with a clock speed of 200 MHz.
• Memory: 128 MB SDRAM and 2 MB ROM.
• Power Supply: 24 V DC, with a power consumption of 10 W.
• Dimensions: 89 x 106 x 30 mm, weight approximately 0.12 kg.
• Protection Class: IP67, compliant with IEC 60068-2-6 and IEC 60068-2-7 standards.
• Operating Temperature Range: -20°C to +60°C, with a storage temperature range of -40°C to +85°C.

Features

• Modular Design: Allows for easy expansion and flexible configuration, with additional communication interfaces available based on specific needs.
• High-Speed Processing: Capable of efficiently handling large volumes of data packets and traffic, ensuring smooth network operation.
• Multiple Communication Interfaces: Supports Ethernet, RS232, and serial communication, providing seamless connectivity between different devices.
• Reliability and Durability: Designed to withstand harsh industrial environments, with vibration and shock resistance.
• Security: Includes critical data protection features to safeguard against network threats.

Applications

The ABB SPNPM22 is widely used in industrial automation systems, including but not limited to the following areas:

• Data acquisition and monitoring
• Remote device control
• Industrial network communication
• Smart buildings and transportation systems
• Process control, power industry, etc.

The ABB SPNPM22 is a high-performance, highly reliable industrial network processing module, ideal for a range of industrial automation scenarios. Its modular design and flexible communication capabilities make it an essential component in industrial control systems.
