Model:1756-OB16E
Series:ControlLogix
Type:Digital DC Output
No. of Outputs:16
Output Voltage Range:10-31.2 VDC
Nominal Output Voltage:24 VDC
Electronically Fused Voltage:12-24 Volts DC
Module Type:PLC
Power Supply:3 MA at 24 VDC
Mounting:Chassis
Communication Speed:10/100 MBPS
Communication Protocol:Ethernet/IP Bridge
Enclosure:Open Type
Temperature Rating:0 – 60 DEG C
Power Dissipation:5.1 W
Isolation:30 V Continuous
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Interface:Ethernet
USB Port:N/A

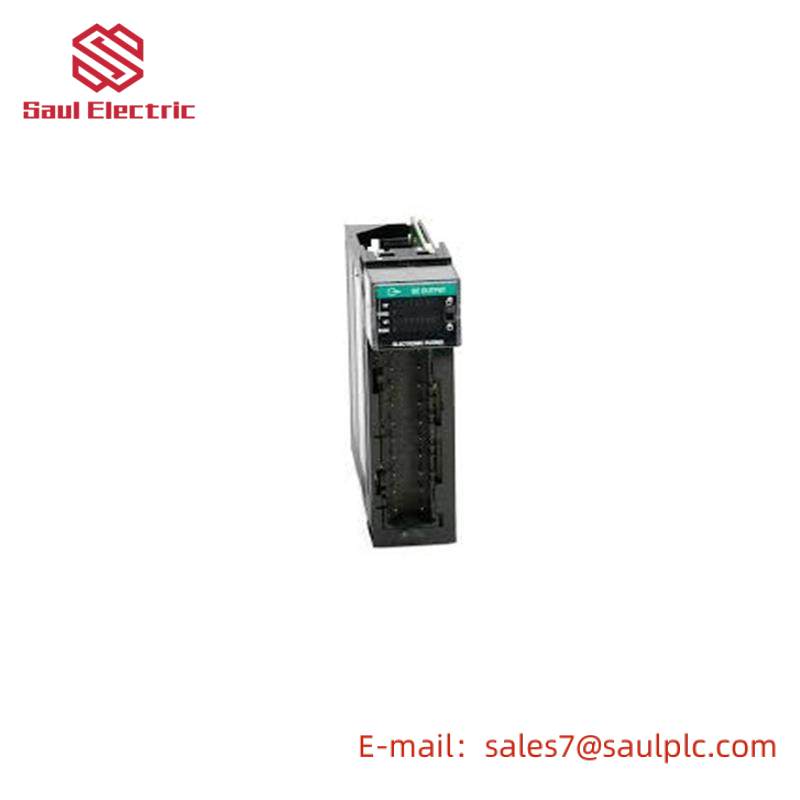

The AllenBradley AB 1756-OB16E ControlLogix 16-Point Digital DC Output Module is designed to meet the demands of high-performance industrial automation systems. With its robust 16-point output capability, it ensures precise control over processes, making it an indispensable component in modern manufacturing and process control environments.
Featuring a wide output voltage range of 10-31.2 VDC, this module offers flexibility to accommodate various application requirements. Its nominal output voltage of 24 VDC ensures stable performance across different loads, providing a consistent power supply that enhances system reliability.
Equipped with electronically fused voltage of 12-24 Volts DC, the module safeguards against short circuits and overloads, ensuring the longevity and safety of the connected equipment. The chassis mounting option facilitates seamless integration into existing systems, minimizing downtime and maximizing efficiency.
The inclusion of Ethernet/IP Bridge communication protocol enables seamless data exchange with other devices on the network, streamlining operations and enhancing overall system integration. This feature supports both 10/100 MBPS speeds, ensuring compatibility with a wide range of network configurations.
Designed with an open type enclosure, the module is built to withstand varying environmental conditions, including temperatures ranging from 0 to 60 DEG C and humidity levels up to 95% non-condensing. This robust construction allows it to perform reliably in harsh industrial settings, contributing to increased productivity and reduced maintenance costs.
