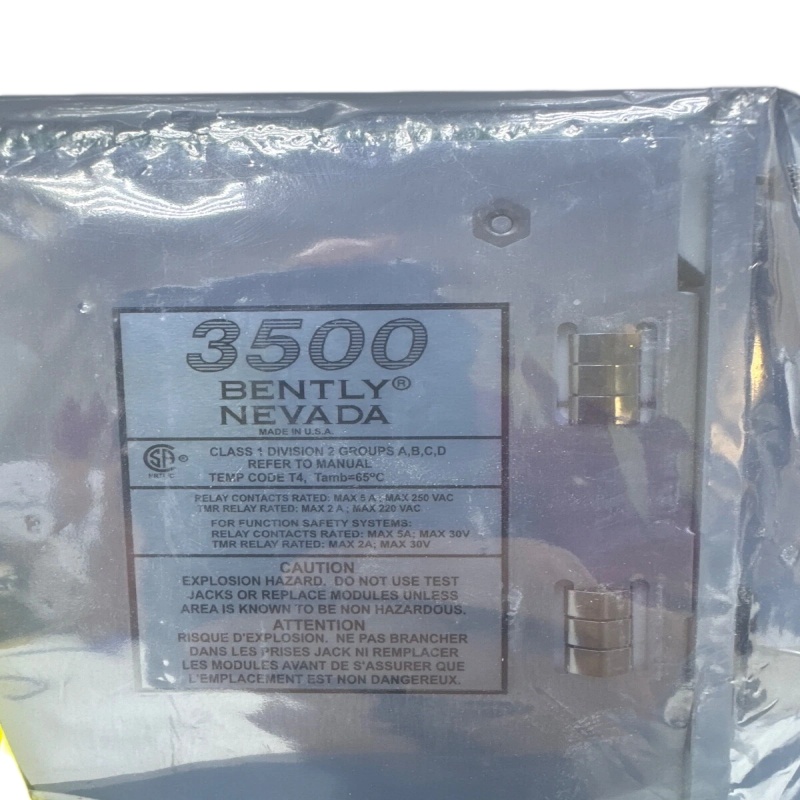

Bently Nevada 3500/22M 138607-01
Transient Data Interface (TDI) Module for 3500 Monitoring System
Product Overview
The Bently Nevada 3500/22M 138607-01 is a high-performance Transient Data Interface (TDI) Module designed for the 3500 Machinery Protection System. It serves as the primary communication gateway between the 3500 rack and external monitoring software such as System 1.
This module combines the functionality of a Rack Interface Module (RIM) with advanced data acquisition capabilities, enabling real-time transmission of both steady-state and transient data for critical rotating machinery.
Key Features
- Integrated Rack Interface & Data Acquisition in one module
- High-speed Ethernet communication (up to 100 Mbps)
- Supports transient waveform and static data collection
- Compatible with all major 3500 series monitoring modules
- Enables predictive maintenance and condition monitoring
- Supports Modbus and proprietary communication protocols
- Hot-swappable design for easy maintenance
Technical Specifications
| Parameter |
Details |
| Model Number |
3500/22M 138607-01 |
| Product Type |
Transient Data Interface (TDI) Module |
| Power Supply |
24 VDC |
| Power Consumption |
Approx. 10 W |
| Communication |
Ethernet, Serial |
| Data Transfer Rate |
Up to 100 Mbps |
| Operating Temperature |
-30°C to +65°C |
| Installation |
3500 Rack System |
Functions
- The 3500/22M TDI Module plays a central role in the system by:
- Acting as the main interface between hardware and software
- Collecting and transmitting vibration, position, and waveform data
- Supporting real-time monitoring and diagnostics
- Enabling advanced fault detection and analysis
Applications
- Oil & Gas Industry (compressors, turbines, pumps)
- Power Generation Plants
- Petrochemical Facilities
- Heavy Industrial Machinery Monitoring
Advantages
- Improves equipment reliability and uptime
- Supports early fault detection
- Enhances plant safety and efficiency
- Reduces maintenance costs through predictive analytics
