Bently Nevada 3500/93 135785-02 System Display Unit
Product Overview

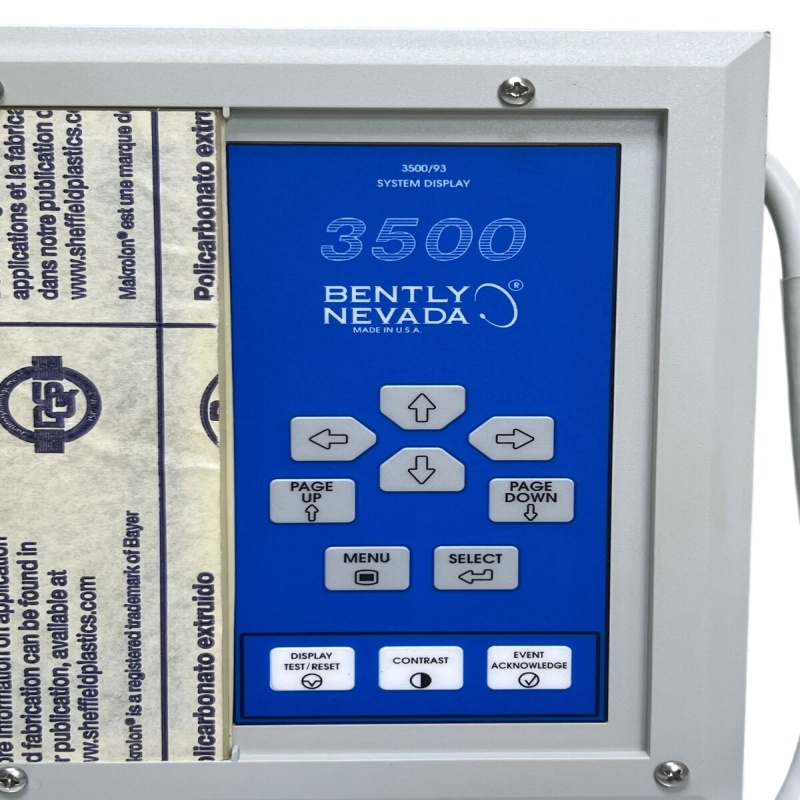

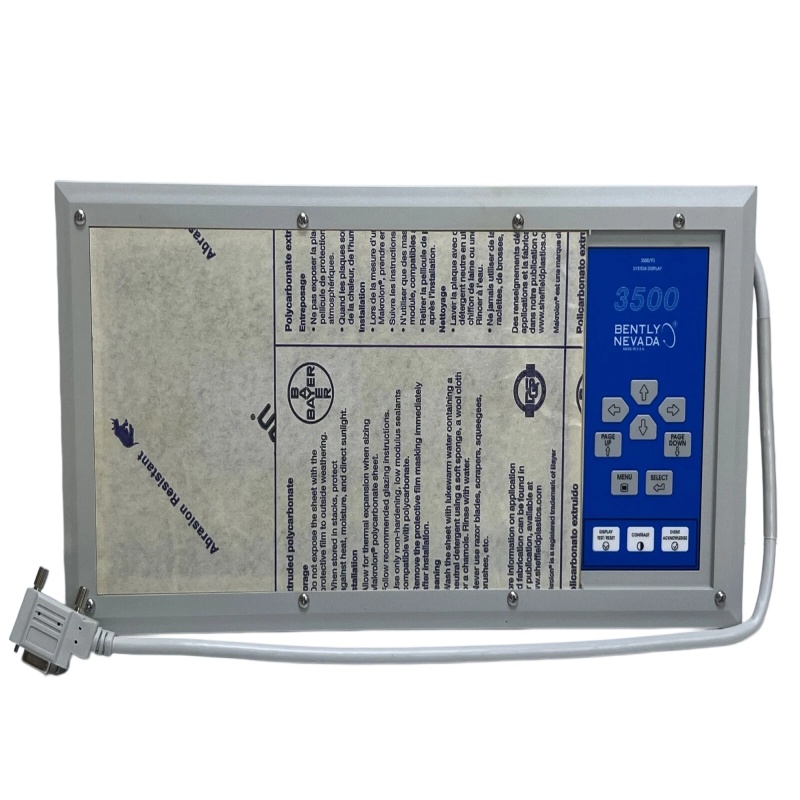

The Bently Nevada 3500/93 135785-02 is a System Display Unit / Interface Panel Display designed for the 3500 Machinery Protection System. It provides real-time visualization of machine condition monitoring data, including alarms, events, and operational status.
This module plays a key role in the human-machine interface (HMI) of the Bently Nevada 3500 system, allowing operators to quickly assess equipment health and respond to faults.
Key Features
- Real-Time Data Display
Displays system data such as:
- Alarm and event lists
- Channel and monitor data
- Relay, Keyphasor, and tachometer information
- Local or Remote Monitoring
Supports both on-site and remote visualization of system status
- Multiple Mounting Options
- Panel mount
- Rack mount (19-inch)
- Face mount
- Independent installation
- Backlit Display
Ensures clear visibility in low-light industrial environments
- API 670 Compliance
Designed to meet API 670 standards for machinery protection systems
Technical Specifications
- Display Type: LCD (backlit / transflective)
- Resolution: Typically 640 × 200 or 640 × 480
- Display Size: ~7 inches (varies by configuration)
- Power Consumption: ~15.5 W max
- Operating Temperature:
- Approx. -40°C to +85°C (industrial grade)
- Dimensions: ~41.5 × 20.5 × 5 cm
- Weight: ~2.1–2.15 kg
Function in 3500 System
The 3500/93 module acts as a display interface, meaning:
- It does NOT process vibration signals directly
- It visualizes processed data from monitoring modules
- It outputs:
- System status
- Alarm conditions
- Trend data
- Configuration information
Typical Applications
Widely used in condition monitoring of rotating machinery, including:
- Steam turbines
- Compressors
- Pumps
- Generators
- Fans
Industries:
- Power generation
- Oil & gas
- Petrochemical
- Heavy manufacturing
Advantages
- Improves operational visibility
- Enables faster fault diagnosis
- Enhances equipment safety and reliability
- Supports predictive maintenance strategies
