B&R 3CP360.60-1

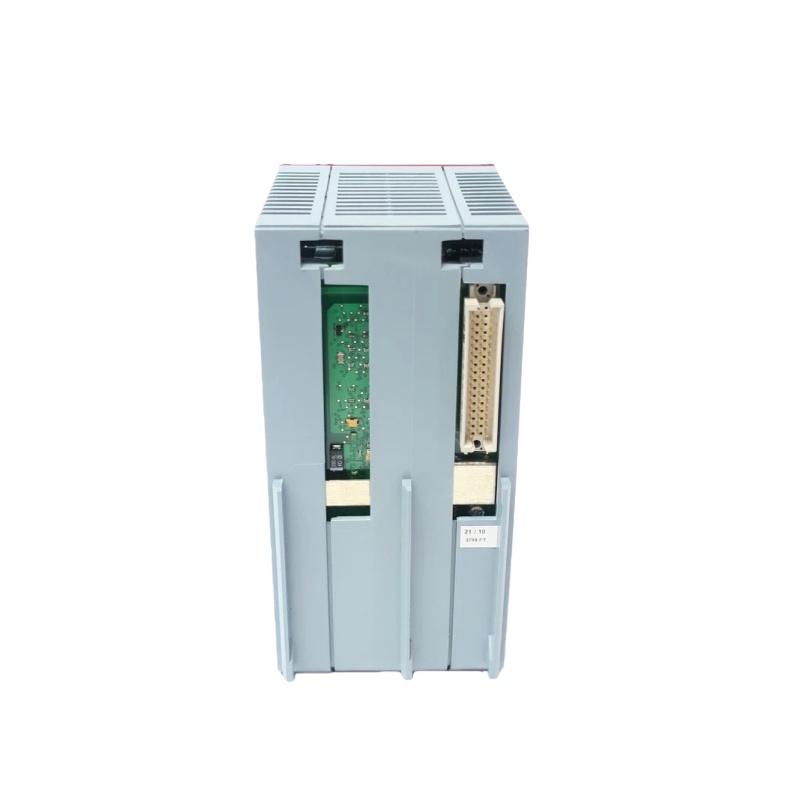

B&R 3CP360.60-1 is a CPU module manufactured by B&R Automation. It is typically used in the B&R System 2005 or X20 series controllers, where it serves as the core central processing unit (CPU).

B&R 3CP360.60-1

Below is a summary of the key technical specifications and features of this model:

1. Basic Information

Product Type: CPU Module (Central Processing Unit)
Brand: B&R Automation
Country of Origin: Austria

2. Core Technical Specifications

CPU Core: Pentium 266 processor
Memory Configuration:
- DRAM: 32 MB (for program and data storage)
- SRAM: 496 KB
- L1 Cache: 2 × 16 KB (for data and program code)
- L2 Cache: 512 KB
- Permanent Variable Memory: 256 KB
Floating-Point Processing: Integrated FPU (Floating Point Unit) supporting high-precision floating-point calculations
Data Backup: Built-in lithium battery providing a power-off data retention time of at least 3 years, with battery monitoring support

3. Interfaces and Expansion

Communication Interfaces:
- RS232: For serial communication
- Ethernet: 10/100 Mbit/s Ethernet interface
- USB: USB 1.1 interface
Storage and Expansion:
- CompactFlash: CF card slot for program storage
- PCI Slot: One PCI slot for installing high-speed interface modules such as the IF7xx series

4. Typical Applications

This module is widely used in industrial automation equipment to execute PLC programs, control I/O modules, handle communication tasks, and perform data processing. It serves as a core control unit for building reliable and efficient automation control systems.
