B&R 3NC154.60-2
1. Product Overview

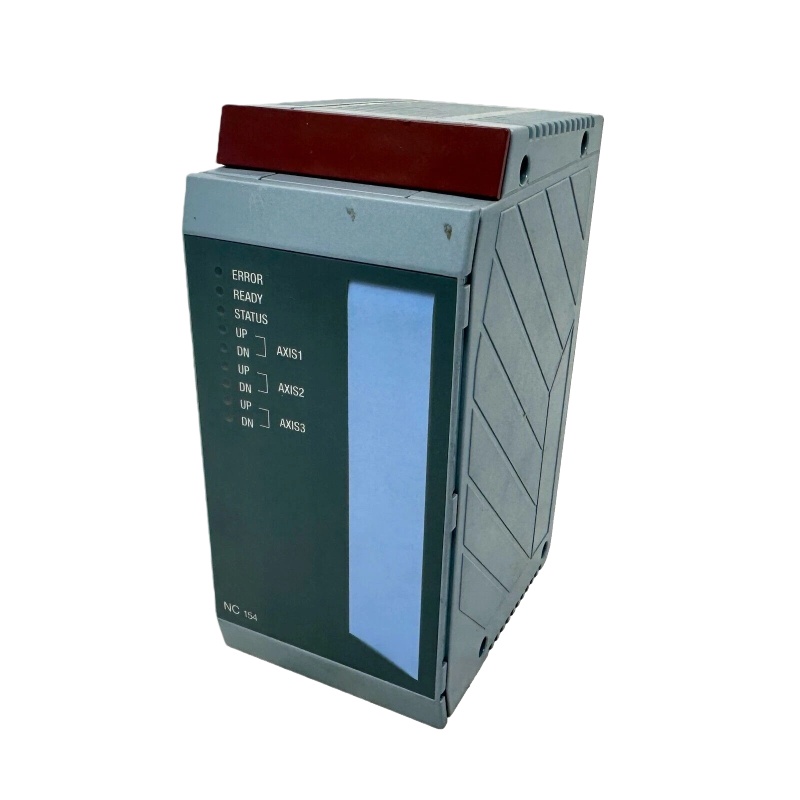

The B&R 3NC154.60-2 is a compact Axis Controller within the B&R 2005 system. Designed specifically to control three axes, this module is typically used in automation control applications for small machines or equipment.
2. Key Technical Specifications & Features
This module integrates various axis control functions. Its core parameters are as follows:
(1) Axis Control Capability
- Number of Axes: Supports control of 3 axes (NC154 denotes a 3-axis controller, with 154 indicating the 2005 series).
- Axis Functions: Supports incremental or absolute encoder input.
- Input Frequency: Up to 150 kHz (counter frequency up to 600 kHz).
- Precision & Stiffness: Utilizes a hysteresis-free, predictable PI closed-loop controller, offering high dynamic stiffness and excellent path accuracy.
(2) I/O Interfaces
- Digital Inputs (DI): 5 digital inputs per axis, totaling 15 DIs.
- Relay Output: 1 relay output per axis, supporting 24 VAC/24 VDC at a rated current of 1 A.
- Analog Output (AO): 1 analog output per axis, with an output range of ±10 V and a resolution of 12 bits.
(3) Power Supply
- Supply Voltage: 24 VDC.
- Power Consumption: Approximately 6 W (actual consumption depends on configuration and load).
(4) Encoder Support
- Encoder Supply: Supports 5 VDC or 24 VDC.
- Signal Types: Supports A, B, Z counting signals, as well as quadrature decoding (Grayscale) and binary encoding.
- Absolute Encoders: Supports Gray code and binary encoding, with support for up to 31 bits.
(5) Connections & Accessories
- Terminal Block: The module typically requires three TB162 terminal blocks (one per axis) for electrical connection.
- Software Compatibility: Compatible with the B&R 2005 system’s standard operating system (e.g., positioning software 1A3502.01).
3. Typical Applications
Due to its compact size, this module is commonly used in automation equipment requiring control of a small number of axes and where space is limited, such as:
- Small packaging machines
- Simple conveyor systems
- Small testing equipment
