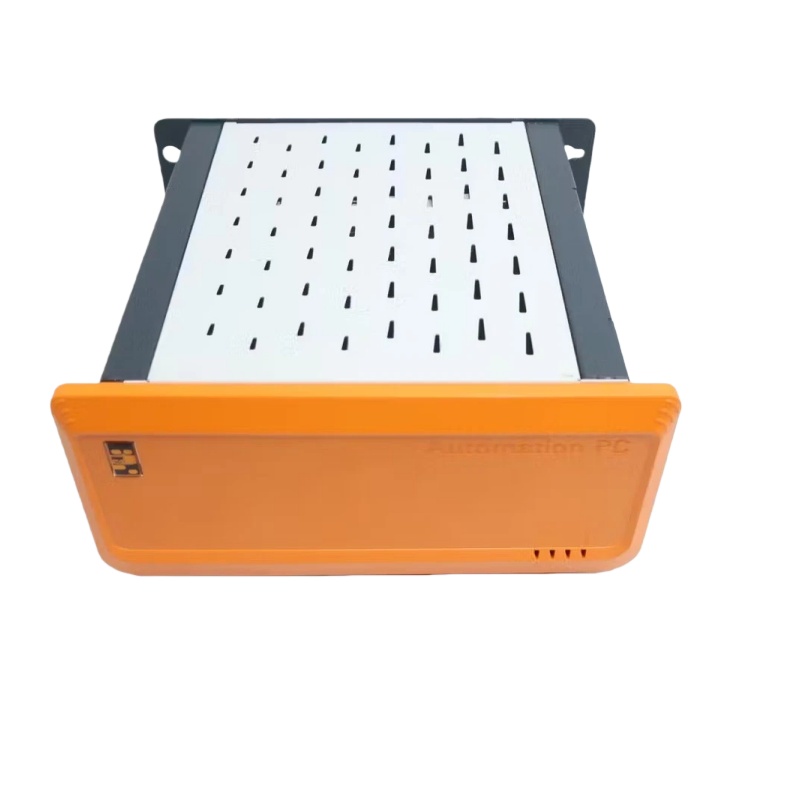

B&R Automation 5PC910.SX02-00 is a 2-slot system unit in the B&R Automation PC 910 series, commonly referred to as the APC910.

Below are the key technical specifications and features of this model:

1. Core Positioning and Purpose

• Industrial Control Computer:
  Part of the B&R Automation PC family, this modular system unit is designed for building industrial automation control systems.
• 2-Slot Expandability:
  Equipped with two expansion slots (PCI/PCIe), making it suitable for small- to medium-scale control applications. It is typically used in combination with B&R X20 series modules, such as I/O and communication modules.

2. Main Technical Specifications

Dimensions and Form Factor

• Dimensions: 120 mm (H) × 250 mm (W) × 270 mm (D)
  Designed to standard industrial cabinet dimensions for easy installation in control cabinets or racks.

• Weight: Approx. 6.0 kg

Power Supply and Consumption

• Operating Voltage: 24 V DC
• Power Consumption: Approx. 2.3 A (about 55 W)

Interfaces and Expansion

• Expansion Slots:
  Two standardized PCI/PCIe slots (e.g., for 5PC600 series CPU motherboards or I/O modules), supporting flexible modular configurations.
• Communication Interfaces:
  Typically includes RJ45 Ethernet ports, USB interfaces (USB 2.0/3.0), and a DVI-D display interface, depending on the specific CPU motherboard configuration.

Compatibility

• Module Compatibility:
  Fully compatible with B&R X20 series I/O modules, bus modules, and drive modules, such as 5PC600 series CPU motherboards.

3. Typical Application Scenarios

• Machine Control:
  Suitable for machinery requiring high reliability and real-time control, such as injection molding machines, packaging machinery, and printing equipment.
• Process Automation:
  When combined with B&R’s process automation product portfolio, it can be used in process control systems for industries such as chemicals and food & beverage.
• Industrial Networking:
  Acts as a core node in industrial Ethernet networks (e.g., EtherNet/IP or PROFINET), connecting a wide range of field devices.

4. Key Advantages

• Modular Design:
  Based on the B&R X20 modular architecture, allowing easy expansion or reduction of modules according to application needs.
• High Reliability:
  The B&R enclosure design meets industrial protection standards (IP ratings), making it suitable for harsh industrial environments.
• Strong Ecosystem:
  Fully compatible with the B&R Automation Studio engineering environment, supporting advanced functions such as integrated motion control and vision systems.

Summary

The 5PC910.SX02-00 is a compact 2-slot industrial PC system unit. Its core strengths lie in its robust modular expandability and seamless integration within the B&R ecosystem, making it an ideal “central hub” for industrial control systems.
