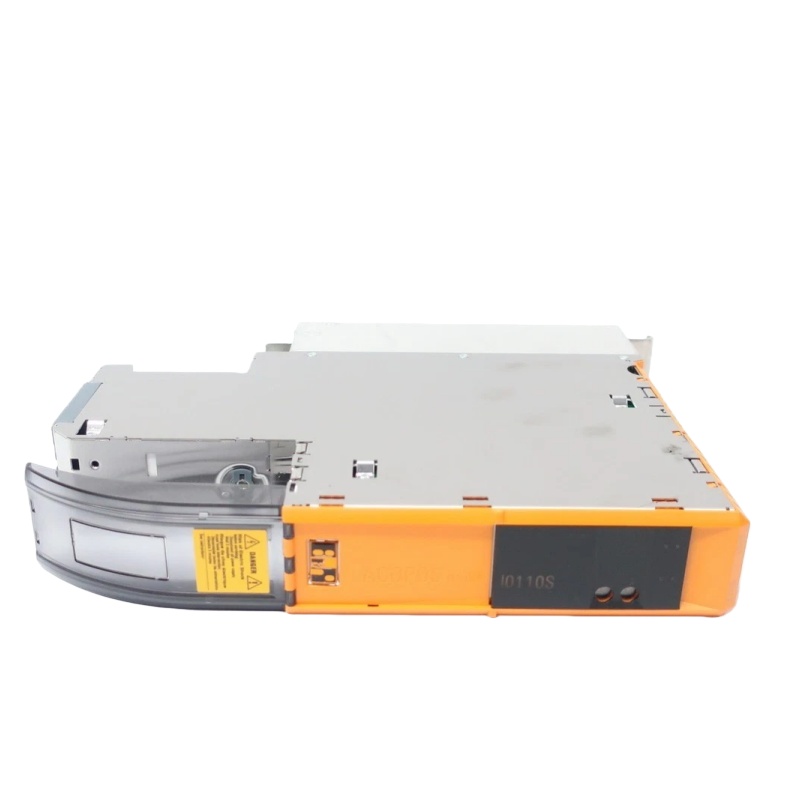

This is a motor drive (frequency inverter) module from the Austrian company B&R (Bernecker & Rainer), model 8BVI0110HWS0.000-1.

1. Device Overview

This is a modular variable frequency drive (VFD) typically installed in industrial control cabinets. It is used to control the speed and torque of AC motors, such as servo motors or induction motors.

2. Main Technical Features

Integrated functionality:
In addition to basic variable frequency control, this module integrates Stop without Control and Safe Stop functions. This means that when a fault or emergency condition is detected, the module can immediately cut off power or switch to a safe state, preventing unsafe motor motion.

Modular design:
The module supports ACOPOS multi plug-in modules (such as servo power modules). It is responsible for control and signal processing, while power conversion (the high-power section) is realized through different plug-in modules. This provides flexible power configuration options.

Multi-protocol compatibility:
It supports B&R’s X-Series bus and is compatible with multiple industrial communication protocols, such as PROFIBUS, EtherCAT, and Ethernet/IP, enabling easy integration with PLCs and other automation devices.

Safety and diagnostics:
Built-in self-diagnostic functions for short circuit, overvoltage, undervoltage, and other faults allow real-time fault reporting, significantly improving system reliability.

3. Dimensions and Installation

This is a compact module typically mounted on standard control cabinet rails. Detailed dimensions and mounting drawings are available in the product manual.

Summary

The 8BVI0110HWS0.000-1 is a highly integrated industrial variable frequency drive module designed for applications requiring precise control and high safety standards, such as CNC machine tools, packaging machinery, and automated production lines.
