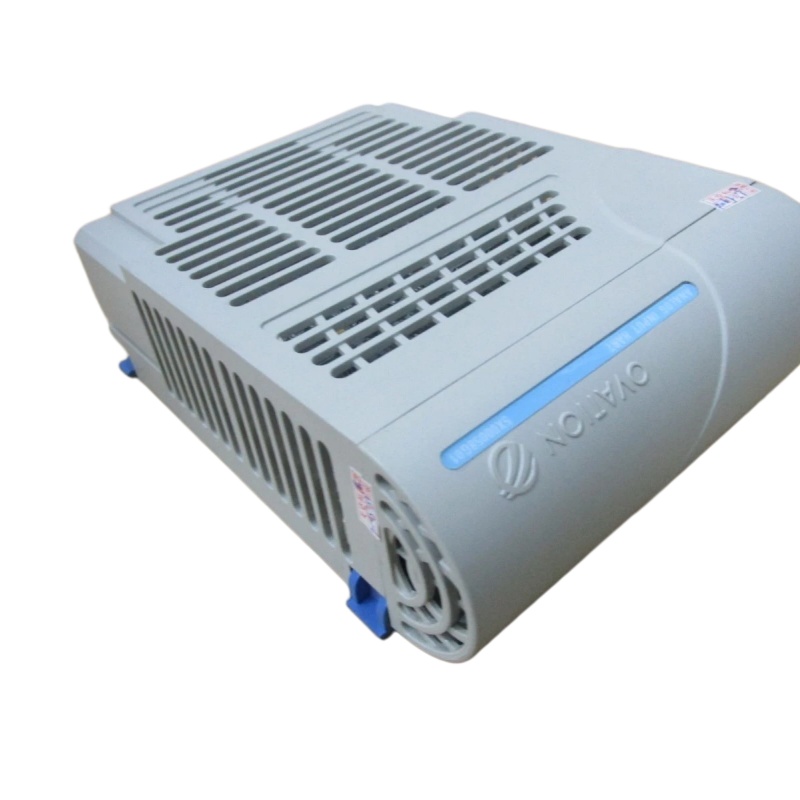

Emerson 5X00058G01 is a HART Analog Input module used in the Ovation system developed by Emerson Electric.

Below are the core features and technical specifications of this module:

1. Core Functions and Features

Protocol Support:
The module supports the HART (Highway Addressable Remote Transducer) protocol, a widely used bidirectional communication standard in industrial process control. It enables two-way data exchange between field instruments and the host control system.

Channel Configuration:
Typically equipped with 8 HART analog input channels.

Input Type:
Supports 4–20 mA current loop inputs, making it suitable for a wide range of process variable measurements.

2. Technical Specifications

Model Series:
Part of the modular components of the Ovation system. The model prefix 5X indicates its module category, while the suffix G01 generally represents a specific hardware revision or version number.

Data Transmission:
Designed with relatively high data transmission capability, making it suitable for industrial applications that require fast and reliable process data acquisition.

3. Application Areas

This module is widely used in high-demand industrial process control systems, including:

• Oil and gas
• Petrochemical and chemical industries
• Steel manufacturing
• Power generation (thermal and nuclear power plants)

It is primarily used to collect data from field instruments such as temperature transmitters, pressure transmitters, and flow meters.

Summary

If you are configuring an Emerson DCS control system, the 5X00058G01 serves as a key interface module for connecting field HART sensors (such as temperature transmitters) to the Ovation control platform.
