EMERSON FLOBOSS S600+

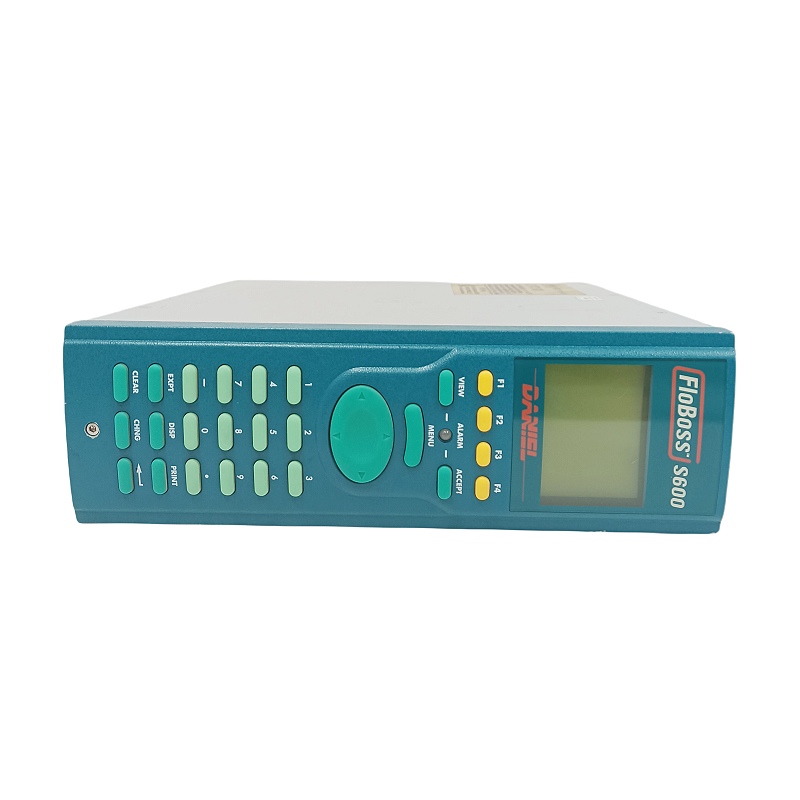

EMERSON FloBoss S600+ Flow Computer Overview
1️⃣ Product Positioning and Core Advantages
The FloBoss S600+ is a panel-mounted fiscal flow computer designed specifically for liquid and gas metering applications in industries such as oil & gas, refining, and city gas distribution. It combines high accuracy with strong field adaptability.
- Multi-Functionality: Supports metering, data processing, report generation, remote monitoring, and diagnostics. It can handle various operational needs, including custody transfer, batch loading, and meter proving.
- High Reliability: Uses 64-bit double-precision floating-point calculations, ensuring a total metering error within ±0.15 % of full scale, compliant with API, ISO, and AGA international standards.
2️⃣ Key Technical Specifications
| Parameter | Description |
|---|---|
| Measurement Range | 0.005 ~ 3000 m³/h (liquid/gas) |
| Accuracy | ±0.15 % of full scale (higher-precision mode optional) |
| Operating Temperature | –40 °C ~ +85 °C |
| Protection Rating | IP67 (dustproof and waterproof) |
| Display & Operation | 8-line LCD + 29-key keypad, supports Chinese/English character sets |
| Input/Output | Up to 16 analog inputs (4-20 mA), multiple digital I/O and pulse inputs; supports multi-stream metering |
| Communication Interfaces | Standard RS-485 and Ethernet; supports Modbus RTU/TCP, DNP3, OPC UA, with optional 4G/LTE or satellite modules for remote monitoring |
| Data Storage | Triple register (Tri-reg) cumulative counting; supports SD card expansion |
| Power Supply | 24 V DC, approx. 7 W (depending on I/O configuration) |
3️⃣ Supported Measurement Standards
- Gas: AGA, ISO, GPA, GERG, GOST, etc.
- Liquid: API, ASTM, GPA, NORSOK, etc.
4️⃣ Typical Application Scenarios
- Fiscal flow measurement (custody transfer, pipeline metering)
- Batch loading and metering (refinery and chemical production lines)
- Meter proving and calibration
- Remote monitoring and data integration (SCADA, MES, ERP systems)
- Multi-stream metering – one device can simultaneously process multiple pipeline streams
5️⃣ Selection and Deployment Recommendations
- Field Conditions: For dusty, wet, or extreme-temperature environments, choose IP67 and –40 °C ~ +85 °C specifications (standard configuration already compliant).
- Communication Requirements: Use standard Ethernet/Modbus interfaces for existing networks; select 4G/LTE or satellite modules for remote or isolated sites.
- Flowmeter Compatibility: Supports various flowmeter types including orifice, turbine, Coriolis, Annubar, Venturi, and V-Cone, ensuring compatibility with existing field instruments.
- Software Configuration: Use Emerson’s dedicated Windows-based configuration software for parameter setup, algorithm configuration, and data access. Offline SD card storage and post-processing data analysis are supported.
✅ Summary
The EMERSON FloBoss S600+ is a high-precision, modular, and communication-rich panel-mounted flow computer designed for oil, gas, and other industrial fluid metering. It supports multiple metering standards and field instruments, offers robust remote connectivity, and is ideal for both single-stream and multi-stream metering applications.
