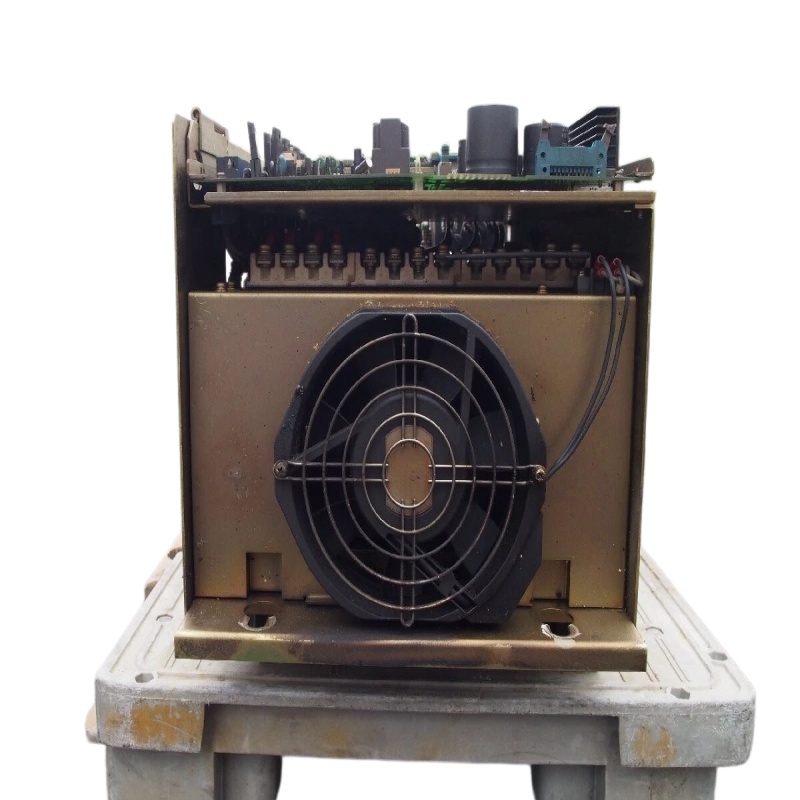

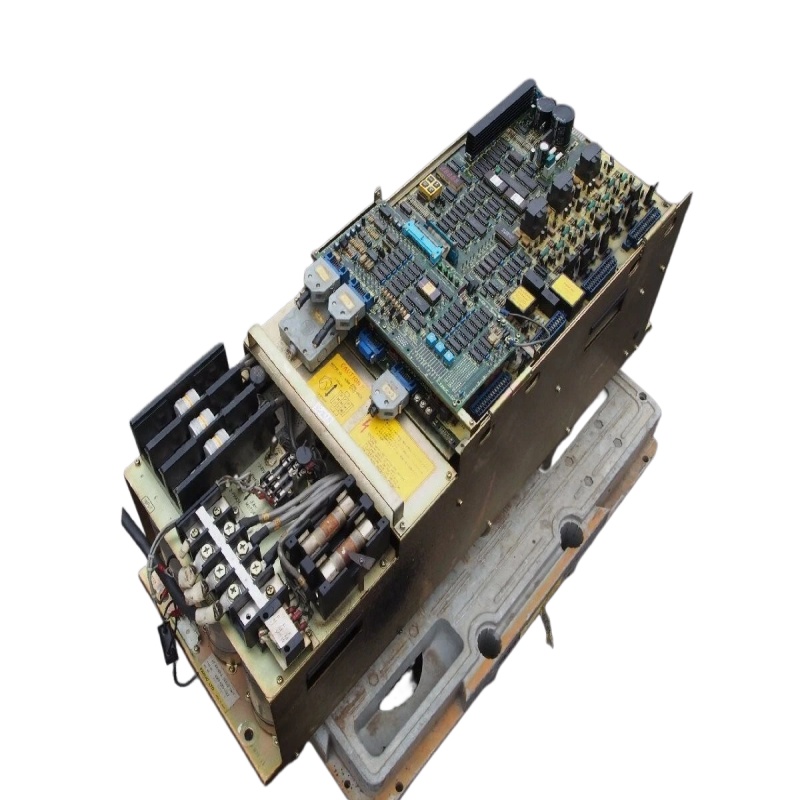

FANUC A06B-6055-H222 is an AC digital spindle drive manufactured by FANUC, widely used in CNC machine tools to control spindle motor speed and torque. It is an important drive unit in CNC control systems.

1. Product Overview

• Model: A06B-6055-H222
• Product Type: AC Spindle Servo Drive
• Series: A06B-6055 Series
• Model Version: Model 22
• Main Function: Controls the start, stop, speed regulation, and torque output of CNC machine tool spindle motors.

This drive unit is typically used together with FANUC CNC control systems and is commonly installed in CNC milling machines, machining centers, and lathes to provide stable and precise spindle control.

2. Key Features

Digital Control Technology
The module uses digital control technology to achieve high-precision speed regulation and stable spindle operation.

High Reliability Design
Designed for harsh industrial environments, ensuring stable performance during long-term continuous operation.

Seamless CNC Integration
Fully compatible with FANUC CNC controllers, enabling spindle speed adjustment, load control, and system monitoring.

Maintenance Support
The module supports repair, refurbishment, and replacement services, helping extend the service life of industrial equipment.

3. Typical Applications

The A06B-6055-H222 spindle drive is widely used in:

• CNC machining centers
• CNC lathes
• Automated production lines
• Metal processing equipment
• High-precision machining systems

4. System Integration

In a typical CNC system, this module connects to:

• CNC Controller – sends control commands and speed signals
• Spindle Motor – performs the mechanical rotation
• Power and control circuits – provide the necessary electrical power and control interface
• The drive converts control signals into electrical power to drive the spindle motor, ensuring precise spindle operation.

✅ Summary:
The FANUC A06B-6055-H222 is a Model 22 AC digital spindle drive unit designed for CNC machine tools, providing precise spindle speed and torque control with high reliability and seamless integration with FANUC CNC systems.
