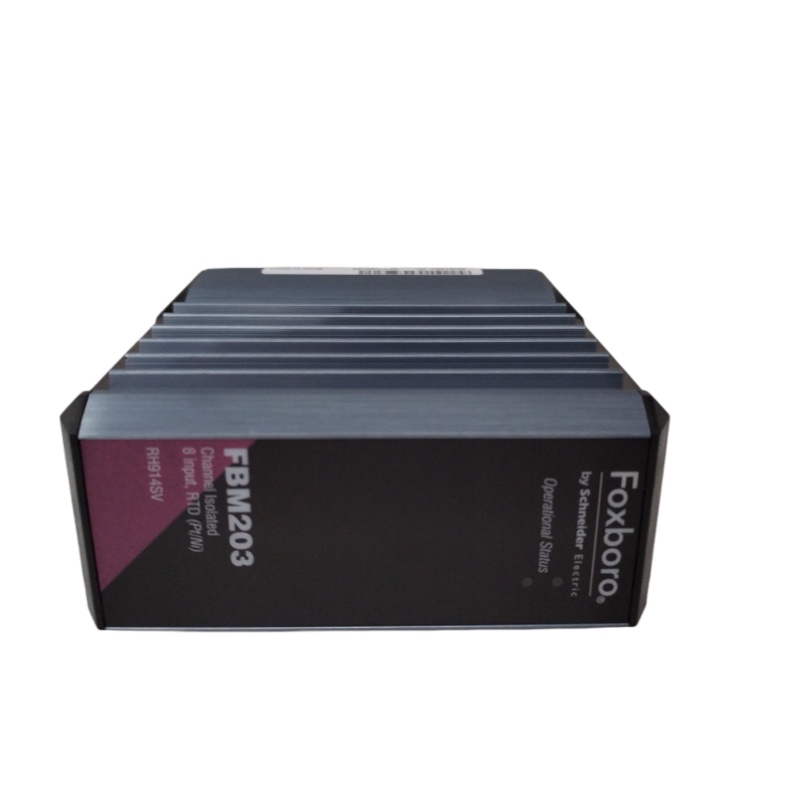

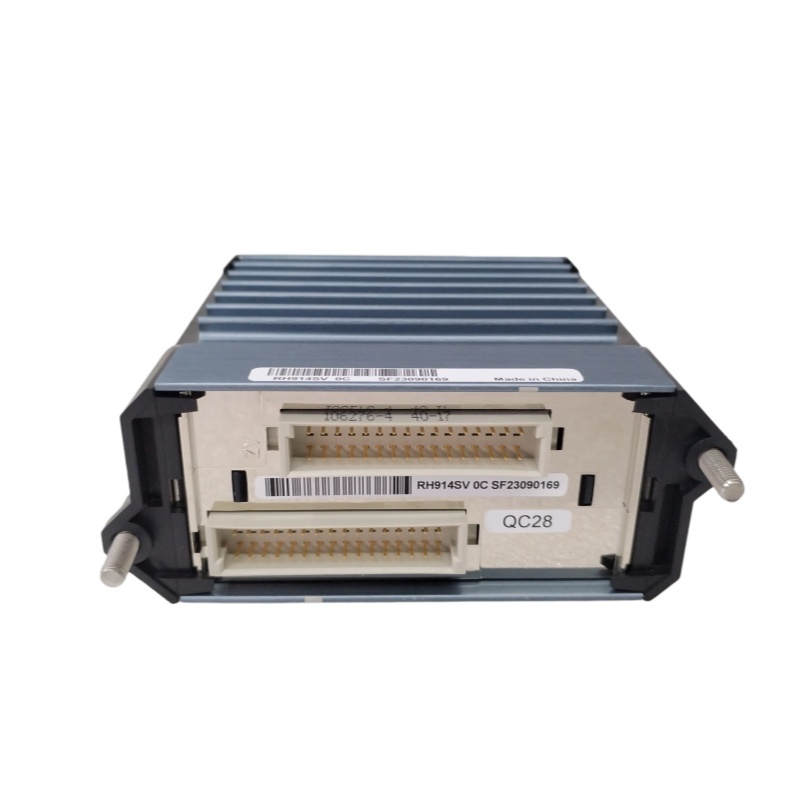

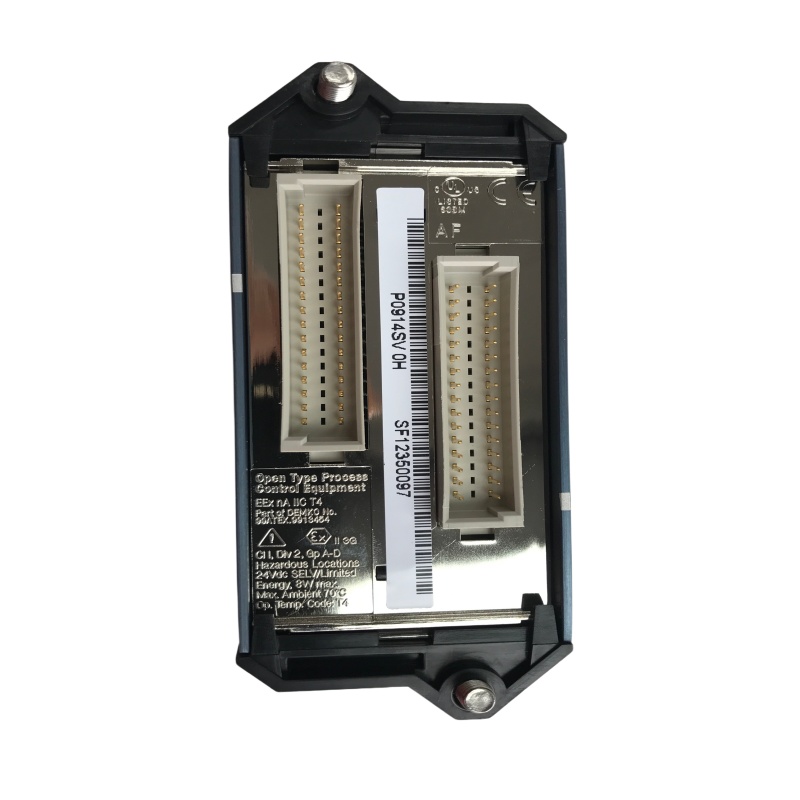

Foxboro FBM203 RTD Input Module – Overview
The Foxboro FBM203 is a high-precision RTD (Resistance Temperature Detector) input module designed for the Foxboro I/A Series Distributed Control System (DCS). It is widely used in industrial automation applications to accurately measure temperature signals from field sensors and convert them into digital data for process control.
Key Features
- 8 Independent RTD Input Channels
Provides eight fully isolated channels for simultaneous multi-point temperature measurement. - High Accuracy Measurement
Delivers precision up to ±0.03% of span, ensuring reliable temperature monitoring. - Multi-Sensor Compatibility
Supports Platinum, Nickel, and Copper RTDs, including:- Pt100 (DIN/IEC)
- Ni sensors
- Cu sensors
- Flexible Wiring Options
Compatible with:- 2-wire RTD
- 3-wire RTD
(4-wire supported in FBM203D variant)
- Galvanic Channel Isolation
Each channel is electrically isolated to eliminate ground loops and improve signal integrity. - Advanced Signal Conversion
Uses Sigma-Delta A/D conversion for high-resolution and noise-resistant measurements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 8 isolated RTD inputs |
| Input Range | 0–320 Ω (standard FBM203) |
| Accuracy | ±0.03% of span |
| Sensor Current | ~0.19 mA DC |
| Power Supply | 24 VDC |
| Power Consumption | ~3 W |
| Operating Temperature | –40°C to +70°C |
| Humidity | 5–95% non-condensing |
| Conversion Method | Sigma-Delta |
Functions
- Temperature signal acquisition from RTD sensors
- Analog-to-digital signal conversion
- Data transmission via fieldbus to control processors
- Continuous temperature monitoring and alarm support
Applications
The FBM203 module is widely used in:
- Oil & Gas / Petrochemical plants
- Power generation systems
- Manufacturing & industrial automation
- Water & wastewater treatment
- Pharmaceutical and food processing industries
Advantages
- High reliability in harsh environments (G3-rated)
- Modular design for easy installation and maintenance
- Strong noise immunity (>125 dB common-mode rejection)
- Redundant fieldbus communication support
Conclusion
The Foxboro FBM203 RTD Input Module is a robust, high-accuracy temperature input solution for industrial DCS systems. With its multi-channel isolation, flexible sensor compatibility, and precise signal conversion, it is ideal for mission-critical process control applications requiring dependable temperature monitoring.
