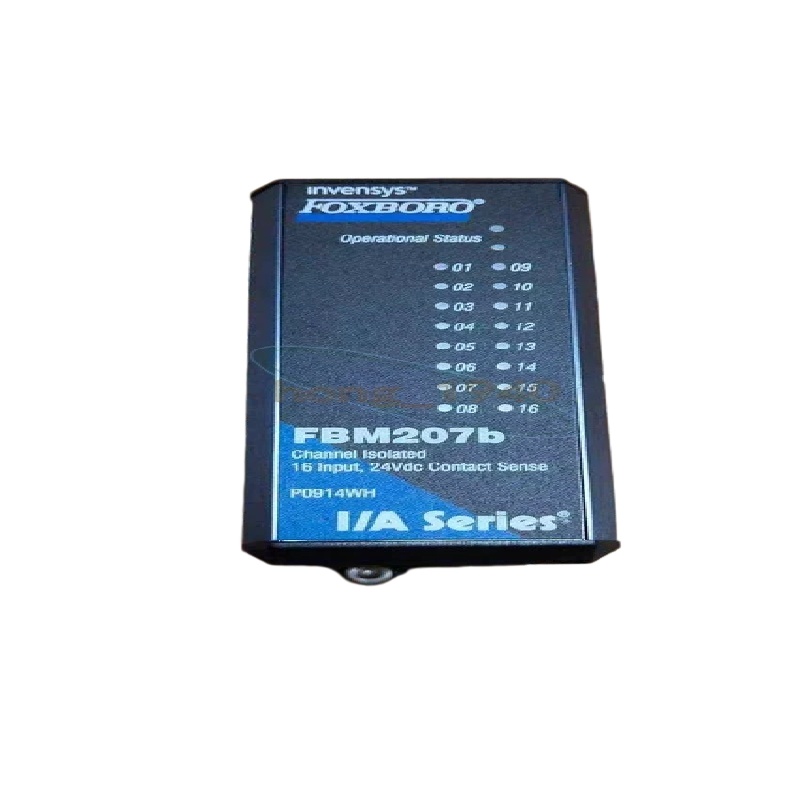

Foxboro FBM207B Contact Sense Input Module – Overview

The Foxboro FBM207B is a 16-channel discrete input module designed for the Schneider Electric Foxboro I/A Series distributed control system (DCS). It is specifically engineered for 24 V DC contact sensing applications, providing reliable signal acquisition from field devices in demanding industrial environments.

Key Features

• 16 Isolated Input Channels
  Each channel is fully galvanically isolated, ensuring high noise immunity and system safety.
• 24 V DC Contact Sense Input
  Optimized for dry contact or solid-state switch inputs with internal wetting voltage.
• High Reliability & Redundancy
  Supports redundant configuration for mission-critical applications.
• Flexible Signal Processing
  • Pulse counting up to 250 Hz
  • Configurable debounce/filter time (4–32 ms)
• Robust Industrial Design
  Suitable for harsh environments (ISA Class G3), with strong vibration and EMC resistance.
• Fieldbus Communication
  Communicates via redundant 2 Mbps Fieldbus with control processors (FCP/FCM).

Technical Specifications

Functional Description

The FBM207B acts as an interface between field devices (such as limit switches, pushbuttons, and relays) and the DCS. It converts discrete signals into digital data transmitted over the Fieldbus for monitoring and control.

Each channel can detect:

• Contact open/close states
• Voltage presence
• Pulse signals for event counting

Applications

The module is widely used in industries such as:

• Oil & Gas
• Power Generation
• Chemical Processing
• Manufacturing Automation

Typical uses include:

• Equipment status monitoring
• Alarm and trip signals
• Switch and relay input acquisition
• Sequence of events (SOE) recording

Advantages

• High input isolation for safety
• Reliable operation in harsh environments
• Flexible configuration and filtering
• Redundant architecture support
• Easy integration into Foxboro DCS systems
