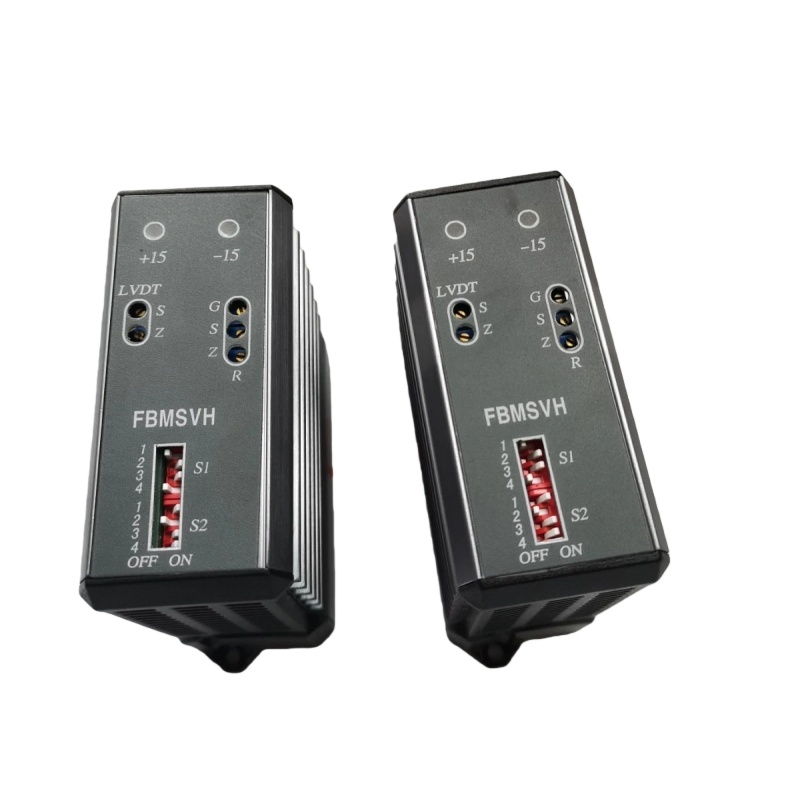

Foxboro FBMSVH High-Precision Servo Control & Analog Interface for I/A Series DCS
Product Overview
The Foxboro FBMSVH is a high-performance industrial control module designed for seamless integration into the Foxboro I/A Series Distributed Control System (DCS). It is widely used for servo valve control, analog signal processing, and precise feedback regulation in demanding industrial environments.
Combining LVDT-based position control with flexible analog I/O capabilities, the FBMSVH ensures accurate, stable, and real-time control in critical applications such as power generation, oil & gas, and chemical processing.
Key Features
🔹 Precision Servo Valve Control
- Supports closed-loop control of pneumatic and hydraulic servo valves
- Accepts command inputs:
- 4–20 mA
- 0–10 V DC
- Processes LVDT feedback signals for accurate valve positioning
- Outputs ±27 mA drive current for actuator control
🔹 High-Density Analog Signal Handling
- Up to 16 configurable channels (depending on configuration)
- Supports multiple signal types:
- 4–20 mA / 0–20 mA
- ±10 V / 0–5 V / 1–5 V
- Each channel can be independently configured
🔹 Advanced Control Algorithms
- Built-in P / PI control modes
- Adjustable:
- Gain
- Zero & span
- Integration time
- Ensures fast response and stable control loops
🔹 Industrial-Grade Reliability
- Operating temperature: 0°C to 60°C
- High noise immunity with galvanic isolation (up to 1500 VAC)
- Designed for continuous operation in harsh environments
🔹 Seamless DCS Integration
- Fully compatible with Foxboro I/A Series architecture
- Communicates via system bus for:
- Real-time monitoring
- Data acquisition
- Process control
- Supports diagnostics and predictive maintenance
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | FBMSVH |
| Manufacturer | Foxboro (Schneider Electric) |
| Input Signals | 4–20 mA, 0–10 V |
| Feedback | LVDT (0–10 V) |
| Output | ±27 mA (servo drive) |
| Channels | Up to 16 |
| Accuracy | ±0.1% FS |
| Isolation | 1500 VAC |
| Power Supply | ±15 VDC or 24 VDC |
| Operating Temp | 0°C to 60°C |
Applications
The FBMSVH module is widely used in:
- ⚡ Steam turbine control systems (DEH systems)
- 🛢️ Oil & gas processing plants
- 🏭 Petrochemical industries
- 💧 Water & wastewater treatment
- 🔧 General industrial automation systems
Advantages
- 🎯 High-precision valve positioning
- 🔄 Real-time feedback and control stability
- 🔌 Flexible multi-signal compatibility
- 🧩 Easy integration into existing DCS systems
- 🛡️ Robust design for harsh industrial conditions
Conclusion
The Foxboro FBMSVH is a versatile and reliable control module that combines servo valve control, analog signal acquisition, and advanced process regulation. Its high accuracy, flexible configuration, and seamless DCS integration make it an ideal choice for mission-critical industrial automation applications.
