Product Overview

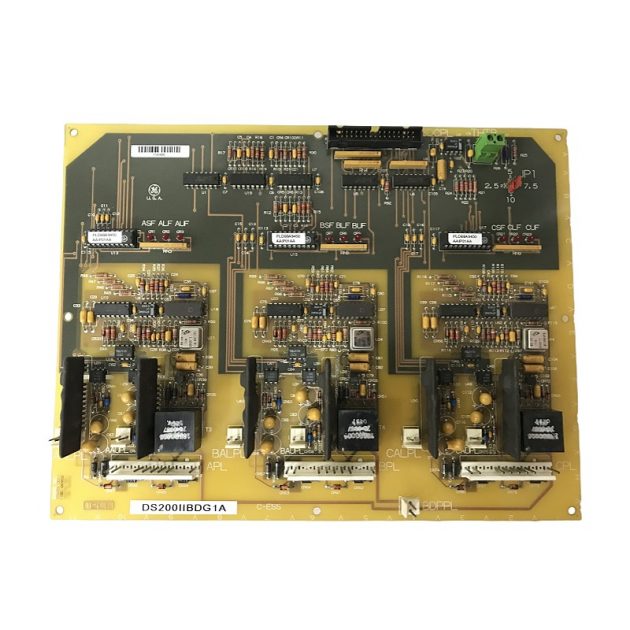

The GE DS200IIBDG1A is an I/O Interface Board designed for the Mark V Turbine Control System. This critical component serves as a communication interface between the turbine control system and various input/output devices, ensuring precise monitoring and control of industrial gas and steam turbines.

Technical Specifications

Parameter Specification
Manufacturer General Electric (GE)
Part Number DS200IIBDG1A
Series Mark V DS200
Product Type I/O Interface Board
Input Voltage 125 VDC (typical)
Operating Temperature 0°C to 65°C (32°F to 149°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Communication Interface Proprietary GE Mark V protocol
Connector Type High-density industrial connectors
Board Dimensions Approx. 10.5 x 6.5 inches
Compatibility GE Mark V Turbine Control System
Certifications UL, CE, ISO standards compliant

Functional Description

The DS200IIBDG1A serves as a critical interface within the Mark V control system, managing communication between the central processing unit and various field devices. It processes analog and digital signals, providing accurate data acquisition and control signal distribution essential for turbine operation and protection.

Installation & Maintenance

Installation should only be performed by qualified technicians familiar with GE turbine control systems. Proper ESD precautions must be observed during handling. Regular maintenance includes visual inspection for physical damage, connector integrity checks, and verification of proper communication functionality through system diagnostics.
