Product Overview

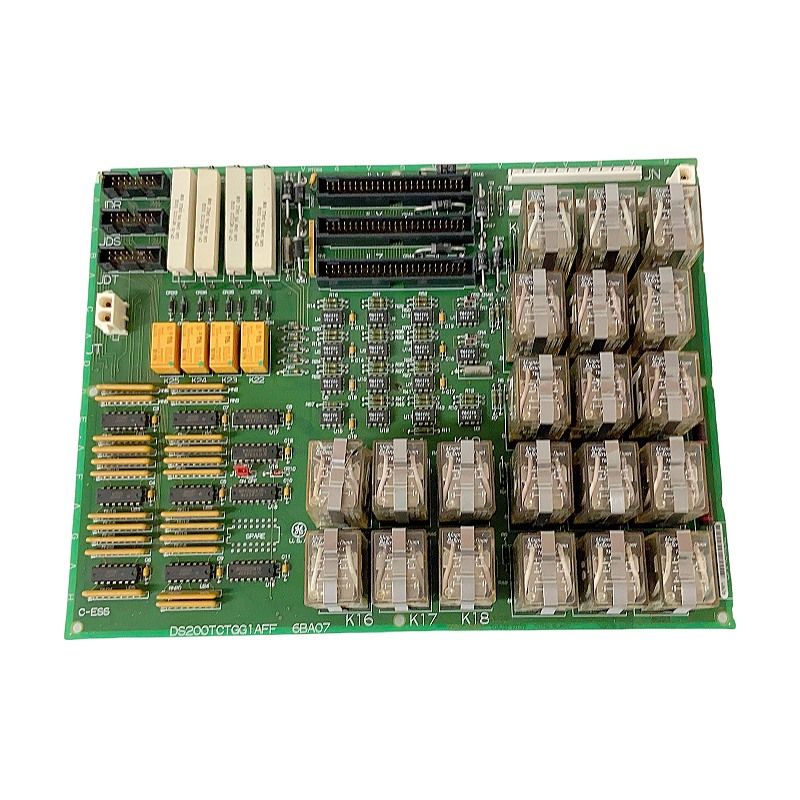

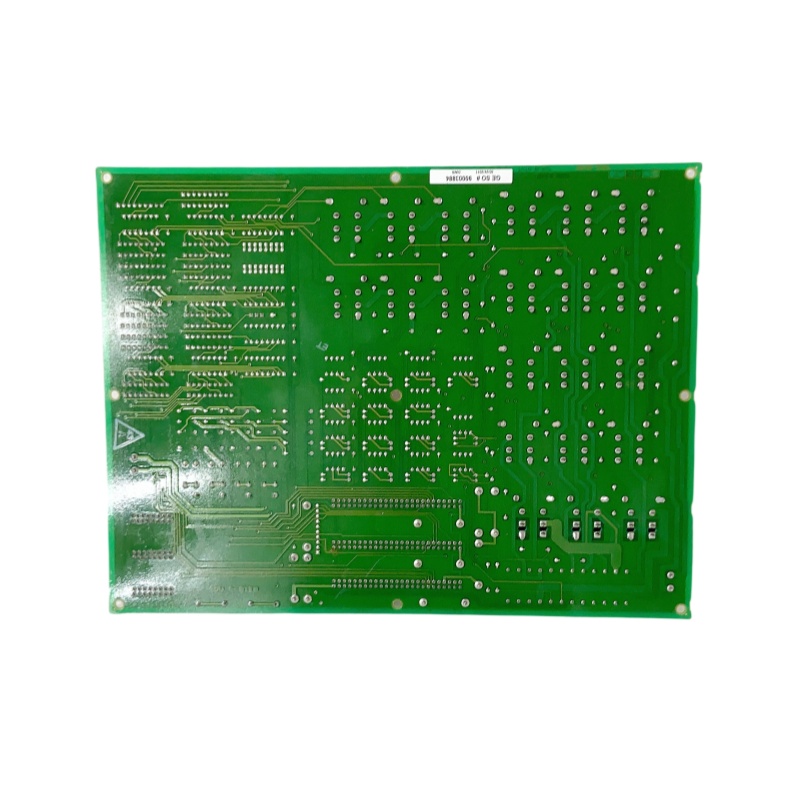

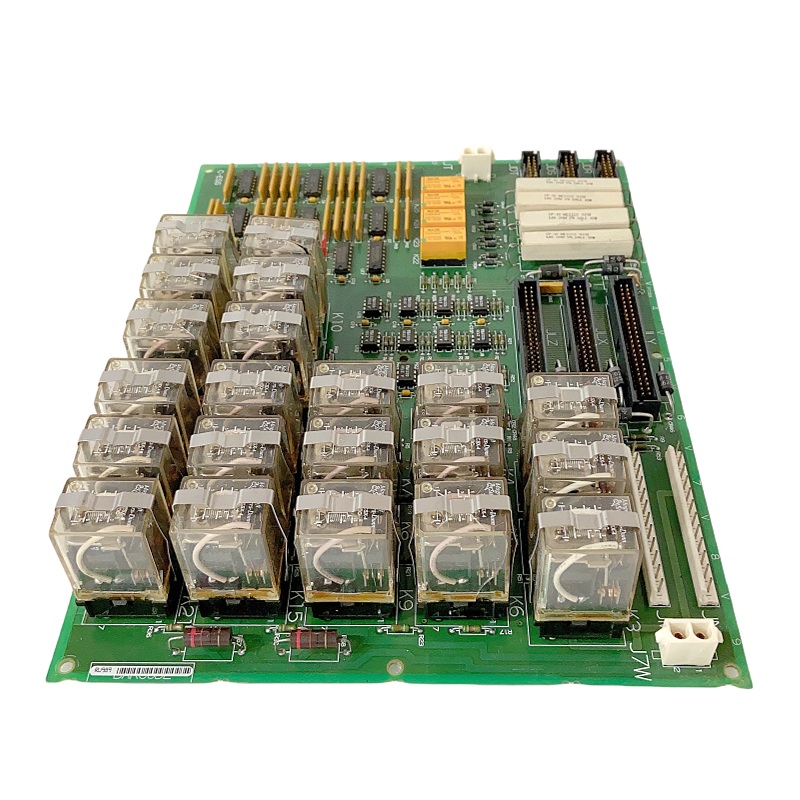

The GE DS200TCTGG1AFF is a terminal control board designed for the General Electric Mark-V turbine control system. This high-performance board serves as a critical interface component, providing signal conditioning and termination for various sensors and control devices in industrial gas and steam turbine applications.

Key Specifications

Manufacturer: General Electric (GE)

Part Number: DS200TCTGG1AFF

Product Type: Terminal Control Board

Compatible Systems: Mark-V Turbine Control System

Application: Industrial Automation and Turbine Control

Technical Specifications

Parameter Specification
Input Voltage 24V DC ±10%
Operating Temperature -40°C to +85°C (-40°F to +185°F)
Storage Temperature -55°C to +105°C (-67°F to +221°F)
Humidity Range 5% to 95% Non-condensing
Connector Type High-density industrial connectors
Isolation Voltage 1500V AC minimum
Board Dimensions Approx. 8.5 x 6.5 inches (216 x 165 mm)
Compliance CE, UL, RoHS

Key Features

  • High-density signal termination for analog and digital I/O
  • Advanced signal conditioning capabilities
  • Robust EMI/RFI protection
  • LED status indicators for channel monitoring
  • Designed for harsh industrial environments
  • Hot-swappable design for easy maintenance
  • Compatible with various sensor types (RTD, thermocouple, 4-20mA)

Applications

  • Gas turbine control systems
  • Steam turbine control systems
  • Power generation plants
  • Industrial process control
  • Energy management systems

Compatibility

The DS200TCTGG1AFF is designed for seamless integration with GE’s Mark-V speedtronic control system. It is compatible with various I/O boards and can interface with multiple sensor types commonly used in turbine control applications.
