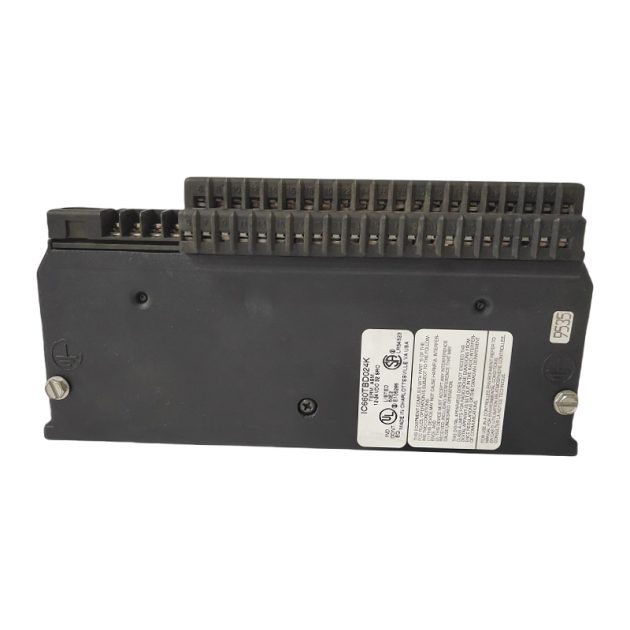

GE IC660TBD024

Quick Overview

The IC660TBD024 is a 24V DC Sink/Source (Universal) Input Block designed for the GE Series 90-30 PLC system. It is part of the VersaMax line of I/O modules but is packaged in a form factor that plugs directly into a Series 90-30 rack.

---

Detailed Technical Specifications

Parameter Category	Specification
Manufacturer	GE Fanuc, now part of GE Intelligent Platforms (and currently part of Emerson Automation under the RX3i platform).
Module Type	Digital Input Module
Input Type	24V DC, Sink/Source (Universal). Can be wired with either a positive or negative common.
Number of Points	24 points (divided into three groups of 8).
Rated Input Voltage	24V DC
Operating Voltage Range	10V to 30V DC
“On” Signal Level	15V to 30V DC (Minimum)
“Off” Signal Level	0V to 5V DC (Maximum)
Input Current	Typically 5 mA per point at 24V DC.
Isolation	500V AC between field side and logic side. 1500V AC between field side and chassis ground.
Point-to-Point Isolation	Points are not isolated from each other; they are grouped into commons.
Number of Commons	3 commons (one for each group of 8 points).
Status Indicators	One green LED per point to indicate the ON (logic 1) state.
Power Dissipation	Typically 2.5 Watts.
Backplane Current Load	5V DC: 80 mA (powered by the backplane) 24V DC: 0 mA (all power is sourced from the field side)
Connection Method	Removable screw-terminal connector block (IC660CHS024 is a common part number for the connector).
Compatible PLC Racks	GE Series 90-30 PLC. Also compatible with Series 90-70 racks when used with appropriate adapters.

---

Key Features and Notes:

1. Universal (Sink/Source) Input: This is a crucial feature. It means the module can be wired in either configuration:

• • Sinking (NPN): The field device provides the ground (0V) to the input point. The common is connected to +24V.
  • Sourcing (PNP): The field device provides the +24V to the input point. The common is connected to 0V (Ground).
  • This flexibility simplifies design and spare parts inventory.

2. Grouping: The 24 points are organized into three isolated groups of 8. Each group has its own common terminal. This allows you to use different power supplies for different groups if needed for safety or noise isolation.

3. LED Indicators: Each point has a green LED that lights up when the input is active (ON), providing excellent visual diagnostics for troubleshooting.

4. Part of the VersaMax Line: While used in Series 90-30 systems, this module shares its design with the VersaMax product family, known for its modularity and reliability.

Typical Applications

This module is used to interface with a wide variety of industrial 24V DC control devices, including:

• Push buttons
• Limit switches
• Proximity sensors (PNP or NPN)
• Selector switches
• Photoelectric sensors
• Relay contacts
