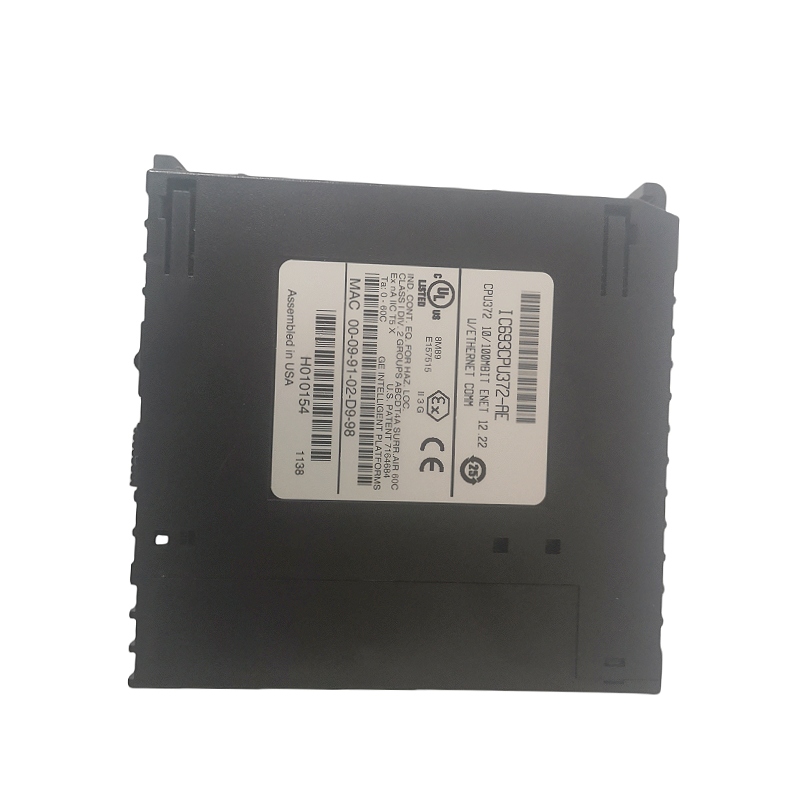

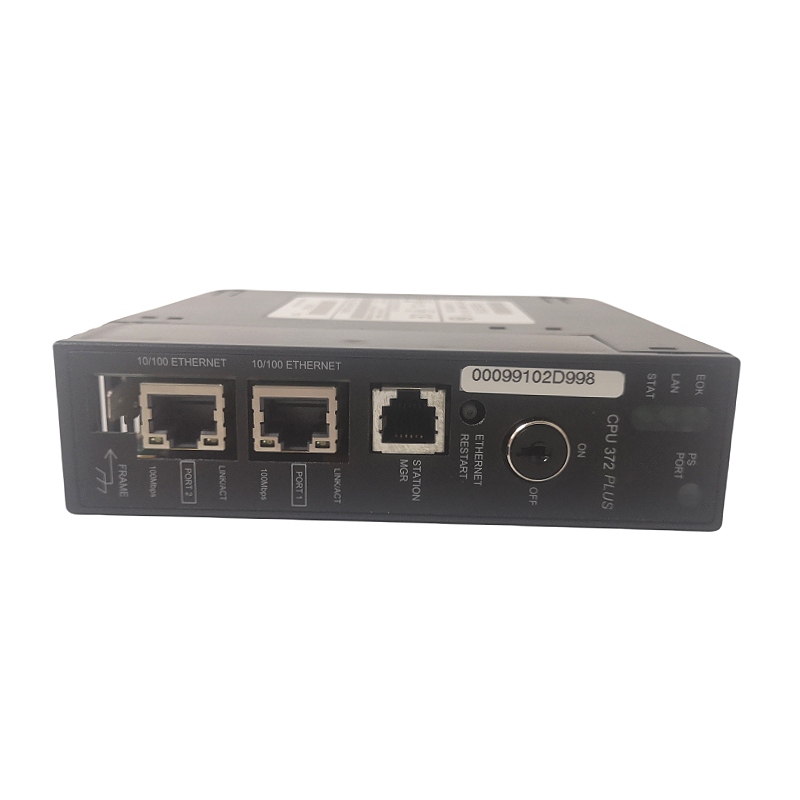

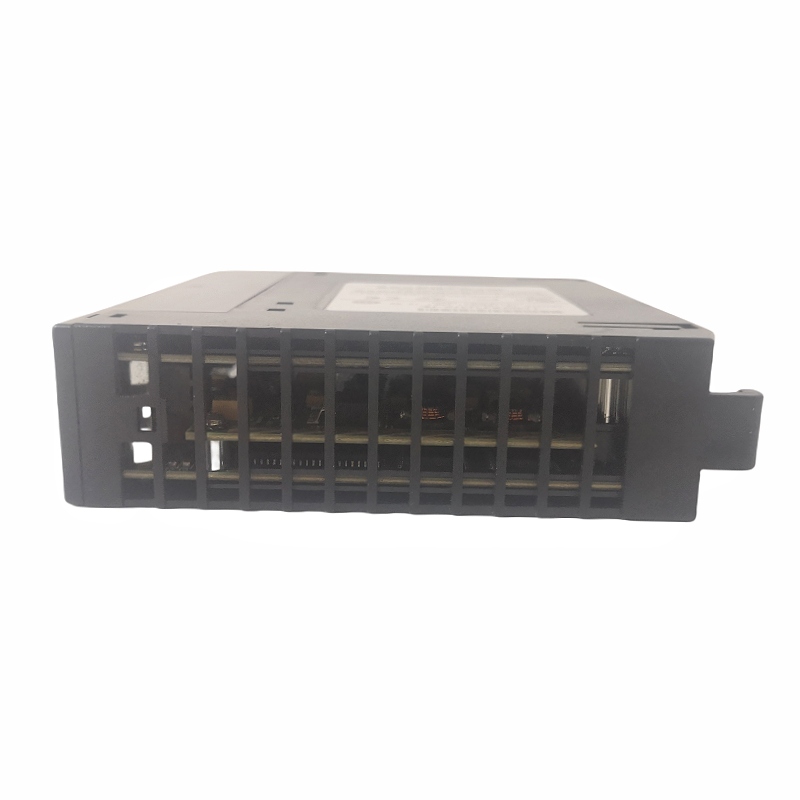

GE IC693CPU372-AE
Overview
The IC693CPU372-AE is a CPU (Central Processing Unit) module for the Series 90-30 PLC system. It is a mid-range, high-performance processor designed for complex automation applications requiring fast scan times, large memory capacity, and extensive I/O and network support.
Key Technical Specifications
| Parameter Category | Specification |
|---|---|
| Product Line | GE Fanuc Series 90-30 (Now part of Emerson’s PACSystems portfolio) |
| Module Type | CPU (Central Processing Unit) |
| Key Identifier | The “-AE” suffix indicates a specific firmware version or regional release. |
| Status | Discontinued (Active legacy product, no longer manufactured. Supported under Emerson’s Legacy product support). |
Processor & Performance
| Parameter | Specification |
|---|---|
| Processor Type | 32-bit microprocessor |
| Clock Speed | 24 MHz |
| Logic Execution | 0.333 ms/K for Boolean instructions (typical) |
| Memory Type | Flash RAM (for program storage and data retention) |
| Battery Backup | Supported (via separate battery module, IC693ACC302) for data retention during power loss. |
Memory Capacity
| Parameter | Specification |
|---|---|
| User Logic Memory | 96 Kbytes |
| Data Register Memory | 64 Kbytes (can be configured to expand logic memory at the expense of registers) |
| Total Available Memory | 160 Kbytes (configurable split between logic and registers) |
I/O Capacity
| Parameter | Specification |
|---|---|
| Discrete I/O | Up to 2,048 points |
| Analog I/O | Up to 128 channels |
| Maximum Number of Drops | Supports up to 31 I/O drops (racks) on the Genius LAN. |
Communications & Ports
| Parameter | Specification |
|---|---|
| Built-in Serial Port | 1 x RS-485 port (on the front face). Used for programming (SNP/SNP-X protocol), operator interface, or modem connection. |
| Genius Bus Controller | Integrated. This is a key feature. It allows the CPU to communicate with up to 32 Genius devices (I/O blocks, drives, etc.) on a high-speed (153.6 kbaud) token-passing LAN. |
| Expansion Bus | Connects to the Series 90-30 backplane to communicate with local I/O modules in the same rack. |
Physical & Environmental
| Parameter | Specification |
|---|---|
| Power Consumption | 750 mA @ 5V DC (from the backplane) |
| Operating Temperature | 0° to 60° C (32° to 140° F) |
| Storage Temperature | -40° to 85° C (-40° to 185° F) |
| Relative Humidity | 5% to 95% (non-condensing) |
Software & Programming
| Parameter | Specification |
|---|---|
| Programming Software | Proficy Machine Edition (PME) with Logic Developer-PLC software. Earlier versions were programmed with VersaPro or Logicmaster 90-30 software. |
| Programming Languages | Ladder Logic (LL), Structured Text (ST), Instruction List (IL), C Blocks (for custom C functions). |
| Firmware | Firmware is field-upgradable via the programming software. |
