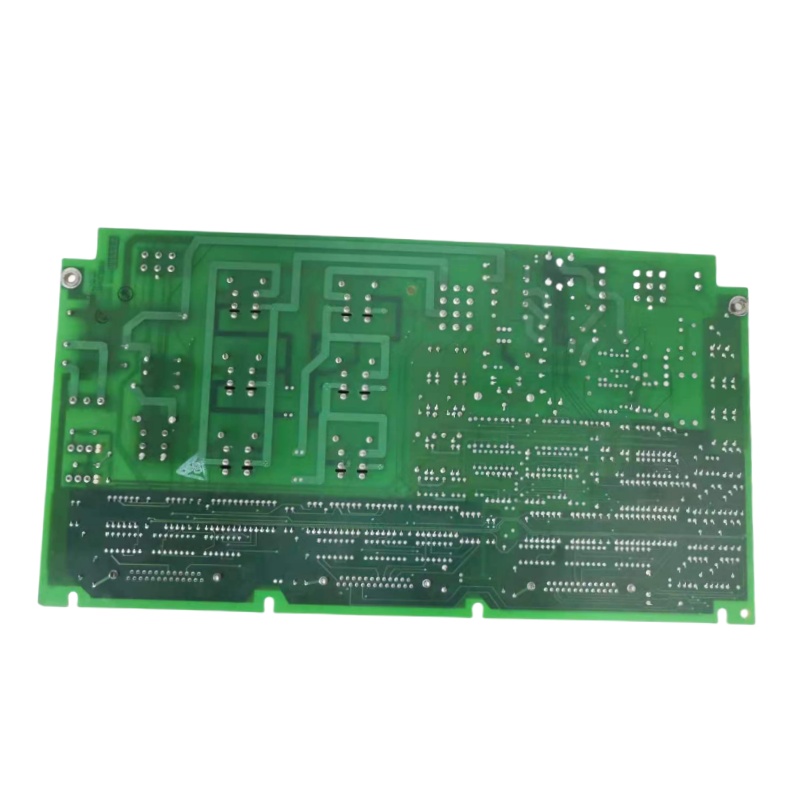

The GE IS200EXHSG3AEC is a high-speed relay driver board designed for industrial automation and control systems, particularly within General Electric’s EX2100 static exciter and Mark VI turbine management systems. Below is a detailed technical specification sheet based on the search results:
📊 1. General Overview
- Manufacturer: General Electric (GE) .
- Model: IS200EXHSG3AEC .
- Primary Function: Serves as a high-speed relay driver board for DC contactors and pilot relays in field-flashing and de-excitation sequences within EX2100 systems. It provides 12 high-speed relay drivers for critical operations .
- Application: Used in industrial automation, power generation (gas/steam turbines), oil and gas, process control, and other high-reliability environments .
⚙️ 2. Technical Specifications
- Input Voltage:
- Relay coils driven by 125 VDC (operating range: 100–140 V) via connector J9 .
- Output Ratings:
- Contacts switch 24 VDC loads: up to 2 A resistive or 1 A inductive (L/R 7 ms) .
- Power Consumption: ≤ 6 W (125 VDC coil max 50 mA, 24 VDC contact supply) .
- Operating Temperature: –30 °C to +70 °C .
- Frequency Range: DC to 20 Hz (relay operate/release) .
- Communication Interfaces: Supports RS485, Modbus, EtherNet/IP .
- Dimensions:
- 8.26 cm (H) × 4.19 cm (W) × 12.1 cm (D) or approximately 170 mm × 105 mm × 32 mm .
- Weight: ≈ 0.18 kg .
- I/O Points: 50 .
- Processing Speed: 150/60 Hz .
- Program Capacity: 50000 .
- Data Capacity: 100 .
🔧 3. Hardware Components

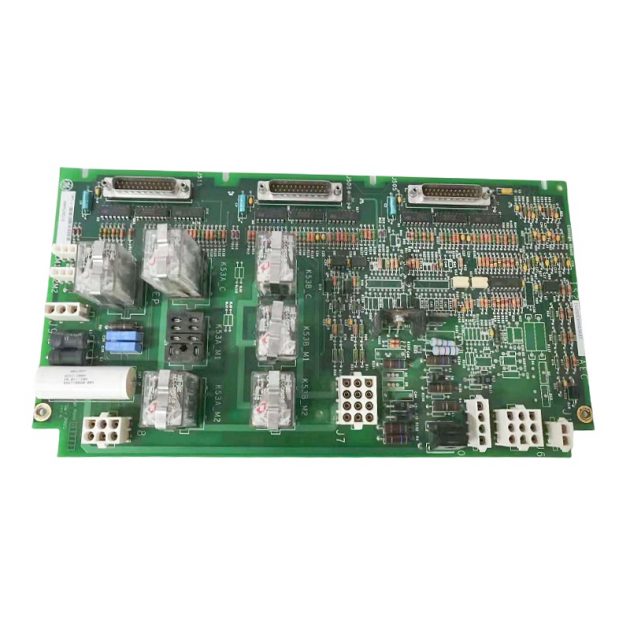

- Key Components: Includes (solid-state relay driver), (heat sink), seven relays, integrated circuits, transistors, capacitors, and resistors made of metal film and carbon composite materials .
- Connectors:
- Three D-type vertical pin connectors and eight plug connectors of varying sizes .
- Jumpers: Several factory-installed jumpers (e.g., J1, J2 for mA output selection; J5, J6 for configuring mA output current range up to 20 mA or 200 mA; J7 for card testing via RS232; J8 for oscillator startup) .
- Design Features: Modular structure for easy installation and maintenance; drilled board edges with conductive material; notched corners .
📋 4. Functional Features
- Relay Control: Controls switching states of relays to open/close circuits, suitable for high-current applications .
- Monitoring & Protection: Monitors parameters like current and voltage; triggers protection mechanisms during anomalies .
- Redundancy & Diagnostics: Supports redundant systems and fault diagnostics; hot-swappable via surface-mount DIN-rail design (replacement in <2 minutes) .
- Signal Conditioning: Conditions analog signals (e.g., LVDT inputs, servo valve outputs, thermocouples, 4–20 mA I/O) .
🏭 5. Applications
- Primary Use:
- EX2100 static exciter systems for gas/steam turbines and hydro generators .
- Mark VI turbine management systems .
- Industries: Power generation, oil and gas, chemical engineering, steel, paper, and textile industries .
🔩 6. Installation & Maintenance
- Installation: Modular design for easy integration; hot-swappable with external suppression reconnection required to maintain SIL rating .
- Maintenance: High reliability with fault diagnosis and remote monitoring; 1-year warranty .
