Technical Specifications

Parameter Value
Manufacturer General Electric (GE)
Part Number IS200STCIH6AED
Series Mark VI Turbine Control System
Product Type I/O Pack
Input Voltage 24V DC (Nominal)
Operating Temperature -40°C to +70°C (-40°F to +158°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Humidity Range 5% to 95% (Non-condensing)
Communication Protocol Ethernet, Genius Bus
I/O Channels 16 Analog Inputs, 8 Digital I/O
Resolution 16-bit
Isolation Voltage 1500V AC
Dimensions 200mm x 150mm x 80mm
Weight Approx. 0.8 kg (1.76 lbs)
Certifications UL, CE, cULus

Product Description

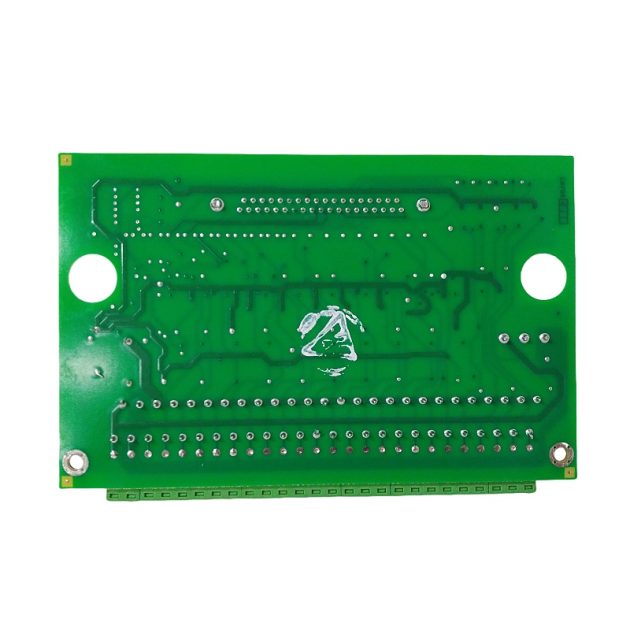

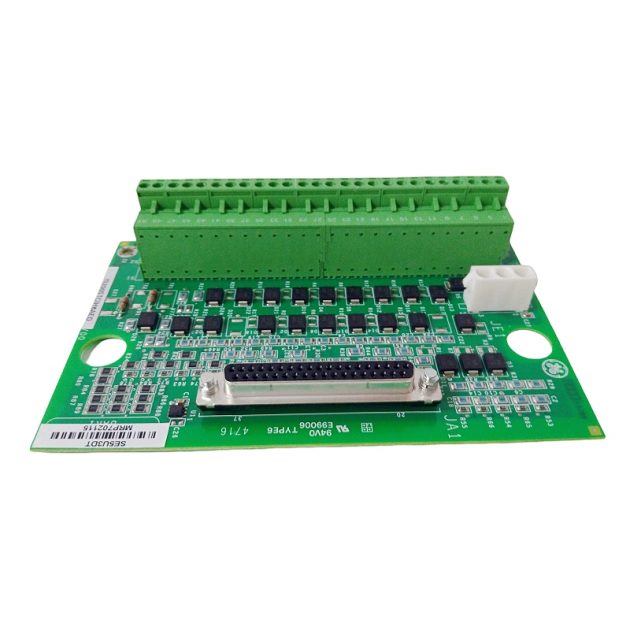

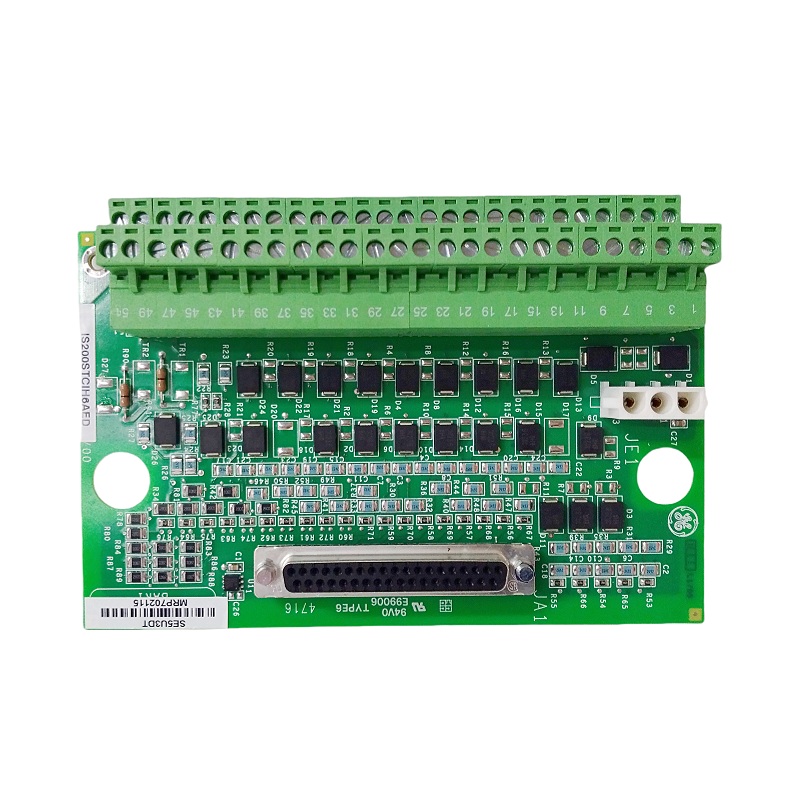

The GE IS200STCIH6AED is an I/O pack module designed for the Mark VI turbine control system. This industrial control module serves as a critical interface between the turbine control system and field devices, providing reliable data acquisition and control signal transmission.

This module features 16 analog inputs and 8 digital I/O channels with 16-bit resolution, ensuring precise measurement and control capabilities. With its rugged design and wide operating temperature range, the IS200STCIH6AED is suitable for demanding industrial environments including power generation facilities.

Compatibility

The IS200STCIH6AED is compatible with the GE Mark VI control system and can be integrated with various GE turbines and related equipment. It is designed to work seamlessly with other components in the Speedtronic series, providing a comprehensive control solution for industrial gas and steam turbines.
