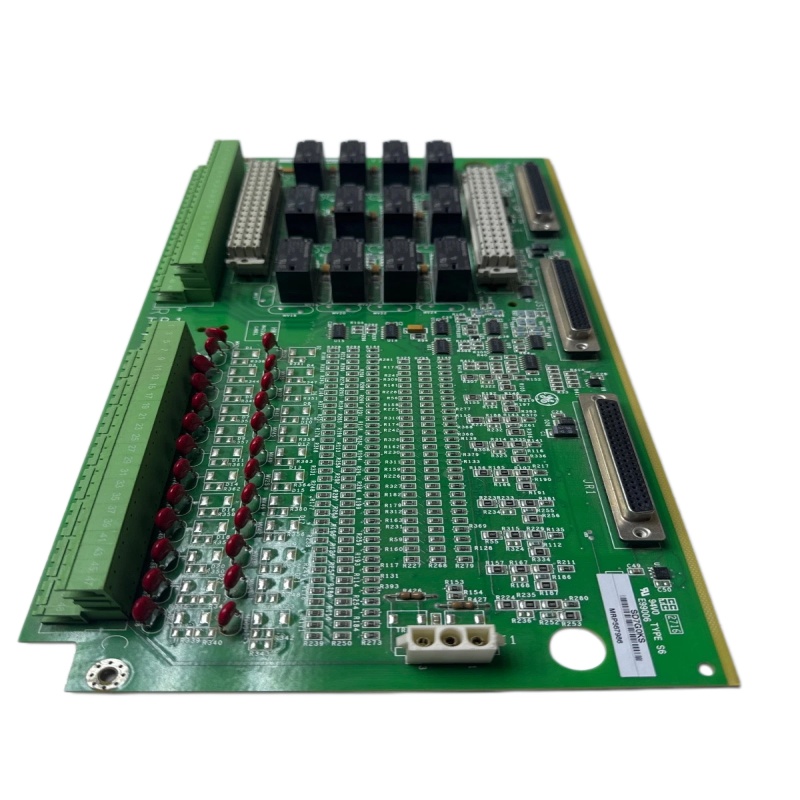

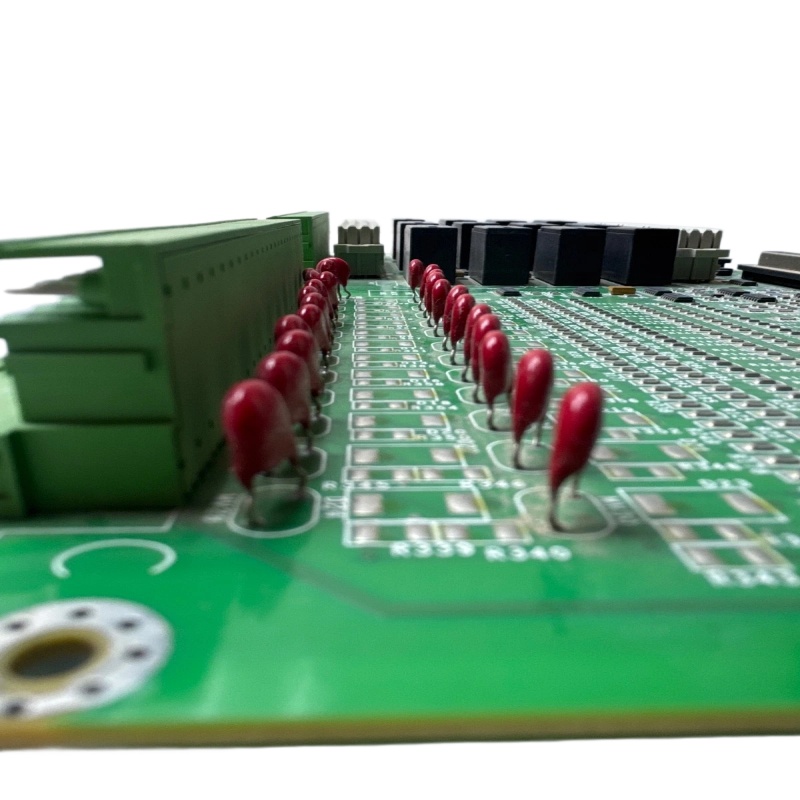

GE IS200TDBTH6ACD Discrete I/O Terminal Board – Full Product Guide

The IS200TDBTH6ACD is a high-reliability TMR discrete I/O terminal board designed for turbine control systems from General Electric. It is widely deployed in safety-critical gas and steam turbine applications and serves as a field wiring interface within the GE Mark VI and GE Mark VIe platforms.

This module provides fault-tolerant signal handling, surge protection, and isolation for discrete field devices such as limit switches, alarms, and trip circuits.

Overview of GE IS200TDBTH6ACD

The IS200TDBTH6ACD functions as a Discrete Input/Output Terminal Board used in Triple Modular Redundant (TMR) control architectures. It sits between field devices and turbine control processors, ensuring reliable signal transmission and voting logic support.

Main Purpose

• Interface between field wiring and control system I/O packs
• Provide electrical isolation and signal conditioning
• Support redundant turbine protection and shutdown systems
• Increase system reliability and reduce downtime

This board is critical in environments where continuous turbine operation and safety are mandatory.

Key Features and Benefits

1. Triple Modular Redundancy (TMR)

The board is designed for 2-out-of-3 voting logic, a core safety feature in turbine control.

Benefits include:

• Eliminates single-point failures
• Ensures safe turbine shutdown during faults
• Maintains operation even if one channel fails

This architecture is widely used in power plants and oil & gas facilities.

2. Discrete Signal Interface

The IS200TDBTH6ACD supports multiple discrete input channels for monitoring and control.

Typical field signals:

• Emergency stop pushbuttons
• Valve and breaker status
• Trip and alarm contacts
• Limit and proximity switches

The board ensures stable signal acquisition even in high-noise industrial environments.

3. Industrial-Grade Electrical Protection

The module integrates several protective features:

• Optical isolation between field wiring and system electronics
• RC filtering to remove electrical noise
• Surge suppression to protect against voltage spikes
• Ground loop protection

These features protect turbine control electronics and improve long-term reliability.

4. Designed for Harsh Environments

The IS200TDBTH6ACD is built for demanding industrial conditions.

Environmental capabilities:

• Operating temperature: −30°C to +65°C
• Humidity: 5–95% non-condensing
• Conformal coating for moisture, dust, and salt protection

This makes the board suitable for offshore, desert, and power plant environments.

Technical Specifications

Role in Mark VI / Mark VIe Systems

Within turbine control cabinets, the IS200TDBTH6ACD:

1. Receives discrete signals from field devices
2. Conditions and isolates signals
3. Sends triplicated data to I/O packs
4. Enables voting logic for turbine protection

This process is essential for:

• Turbine startup sequencing
• Overspeed protection
• Emergency shutdown systems
• Alarm and interlock processing

Typical Applications

Power Generation

• Gas turbine control systems
• Steam turbine protection
• Combined cycle plants

Oil & Gas

• Compressor turbine control
• Pipeline and refinery safety systems

Heavy Industry

• Large rotating machinery protection
• Critical plant automation

Why Choose IS200TDBTH6ACD?

Key advantages:

• Proven GE turbine control reliability
• TMR safety architecture
• Industrial noise immunity
• Long service life in harsh environments
• Essential for turbine protection and shutdown systems

Conclusion

The GE IS200TDBTH6ACD is a critical component for high-availability turbine control systems. By providing reliable discrete signal termination, isolation, and redundancy, it ensures safe and continuous operation in the most demanding industrial applications.
