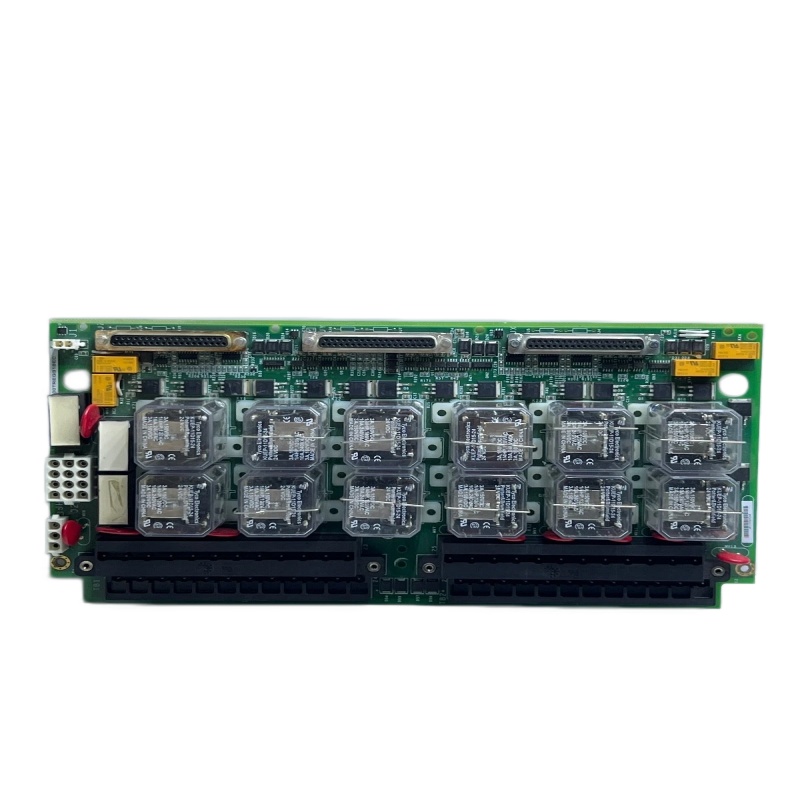

GE IS200TREGS1BEC Trip Emergency Termination Board
Mark VI / Mark VIe Turbine Control System
The GE IS200TREGS1BEC is a Trip Emergency Termination (TREG) terminal board designed for the Speedtronic Mark VI and Mark VIe turbine control platforms developed by General Electric. This board plays a critical role in turbine safety by providing a dedicated and independent emergency shutdown path for gas and steam turbines.
Product Overview
The IS200TREGS1BEC is a safety-critical PCB module used in industrial turbine control systems across power generation, oil & gas, and heavy industrial facilities. It forms part of the Emergency Trip System (ETS), ensuring turbines can be shut down quickly and reliably during abnormal operating conditions.
Key functions include:
- Emergency turbine shutdown control
- Trip solenoid power distribution
- Overspeed protection interface
- Relay voting logic for high reliability
- Independent protection layer separate from main control
Key Features and Benefits
1. Independent Turbine Protection Layer
The IS200TREGS1BEC provides an additional safety layer separate from the main turbine control processor. This redundancy is essential for preventing catastrophic turbine failures caused by:
- Overspeed events
- Lubrication system failure
- High temperature conditions
- Emergency stop activation
- Control system faults
By operating independently, the board ensures the turbine can still trip even if the primary controller fails.
2. 125 VDC Trip Power Distribution
The board supplies the positive side of the 125 VDC trip circuit, working alongside the TRPG board (which supplies the negative side) to energize turbine trip solenoids.
This design ensures:
- Fast shutdown response
- Reliable trip activation
- Safe turbine isolation during emergencies
3. Advanced Relay Voting Architecture
A standout feature of the IS200TREGS1BEC is its relay voting safety design:
- 12 onboard relays
- 9 relays arranged in 3 voting groups
- Powered by 28 VDC from the protection processor
Voting logic ensures that a turbine trip occurs only when valid trip conditions are confirmed, reducing false trips while maintaining high safety integrity.
Hardware Components
The board includes high-quality industrial components designed for harsh environments:
- Industrial relays
- Terminal blocks for field wiring
- D-sub connectors
- Metal Oxide Varistors (MOVs) for surge protection
- Integrated circuits and discrete components
- Capacitors, resistors, diodes, and transistors
This robust design ensures long-term reliability in demanding turbine applications.
Role in the Mark VI / Mark VIe System
Within the turbine protection architecture, the module operates in the Emergency Trip System chain:
Sensors → Protection Processor → TREG Board → Trip Solenoids → Turbine Shutdown
This positioning makes the IS200TREGS1BEC a mission-critical safety interface between protection logic and physical turbine shutdown hardware.
Technical Summary
| Parameter | Description |
|---|---|
| Model | IS200TREGS1BEC |
| Manufacturer | GE |
| Series | Mark VI / Mark VIe Speedtronic |
| Product Type | Trip Emergency Termination Board |
| Trip Power | +125 VDC trip solenoid supply |
| Relay Design | 12 relays with voting logic |
| Application | Gas & Steam Turbine Control Systems |
Typical Applications
- Gas turbine power plants
- Steam turbine power stations
- Oil & gas production facilities
- Industrial energy systems
- Heavy process industries
Why Choose the GE IS200TREGS1BEC
- Critical turbine safety module
- Designed for high-reliability industrial environments
- Provides independent emergency shutdown capability
- Proven technology used worldwide in turbine control systems
