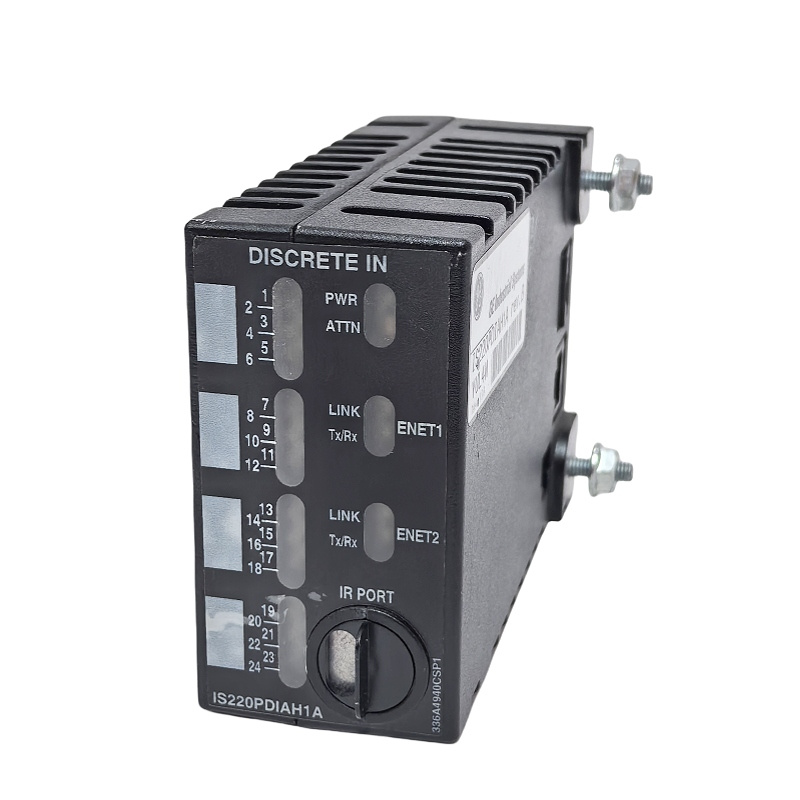

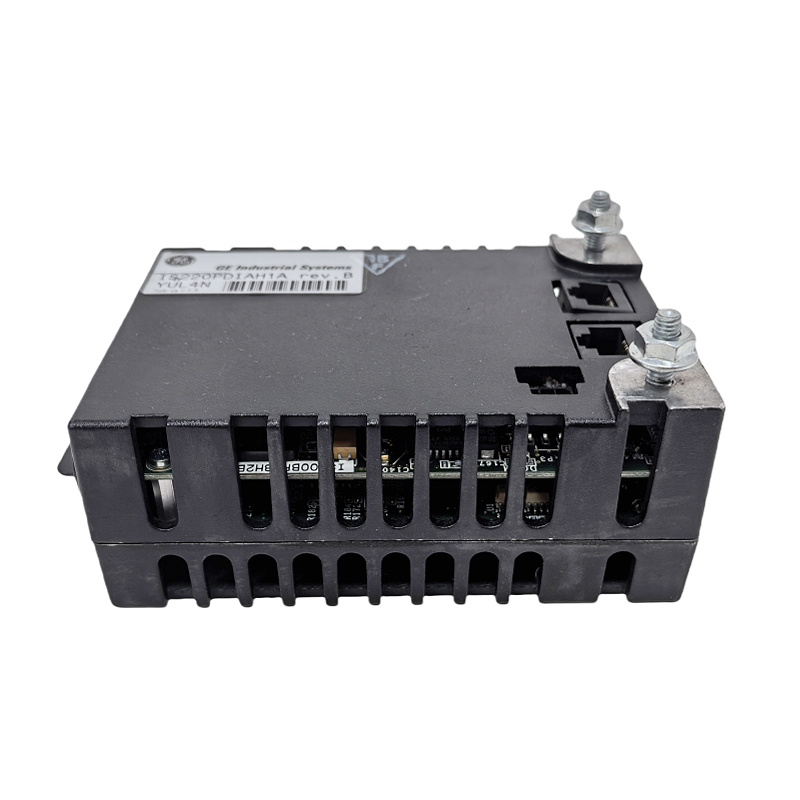

GE IS220PDIAH1A
1. Overview
The GE IS220PDIAH1A is a key component of the GE Speedtronic MK VI gas turbine control system, belonging to the I/O pack module family. It is designed for the acquisition and output of digital signals and supports connection to various terminal boards. The module is suitable for both non-hazardous and hazardous environments (e.g., Class I Zone 2 Group IIC and ATEX Zone 2 Group IIC). It features two Ethernet ports for high-speed, stable network communication, facilitating data exchange with other components in the control system.
2. Specifications
- Model: IS220PDIAH1A
- Type: I/O Pack Module
- Series: GE Mark VI
- Input Voltage: 24 VDC (nominal), maximum 28.6 VDC
- Number of Input Channels: 24 discrete inputs
- Operating Temperature Range: -30°C to +65°C (some sources note -20°C to +60°C or -40°C to +85°C)
- Communication Interfaces: Two Ethernet ports supporting high-speed data transmission
- Certifications: UL 60079-0 Ed. 5 and UL 60079-15 Ed. 3, suitable for Class I Zone 2 Group IIC and ATEX Zone 2 Group IIC environments
- Dimensions: Compact module design; dimensions vary slightly by source, e.g., 100 mm × 50 mm × 25 mm or 4.9″ × 7.2″ × 1.3″
- Weight: Approx. 200 g (some sources list 0.5 lbs or 0.23 kg)
3. Product Features
- High Reliability: Industrial-grade design ensures high reliability and stability for harsh industrial environments.
- Strong Anti-Interference Capability: Robust EMI resistance for stable operation in complex industrial settings.
- Flexible Configuration: Input and output points and types can be configured as needed for different applications.
- Local Processor: Built-in local processor executes complex control logic and data processing tasks, reducing the load on the main controller and improving overall system performance.
- Ease of Installation and Maintenance: Modular design allows for convenient system expansion and maintenance.
- Multiple Communication Protocols Supported: Supports Ethernet, RS232, and RS485 protocols for easy system integration.
4. Structure and Components
The GE IS220PDIAH1A consists of the following main parts:
- Power Module: Provides a stable 24 VDC supply to ensure proper operation.
- Local Processor: Handles data processing and logic control to enhance system responsiveness and processing capacity.
- Data Acquisition Board: Captures signals from external devices and converts them into digital signals for recognition by the control system.

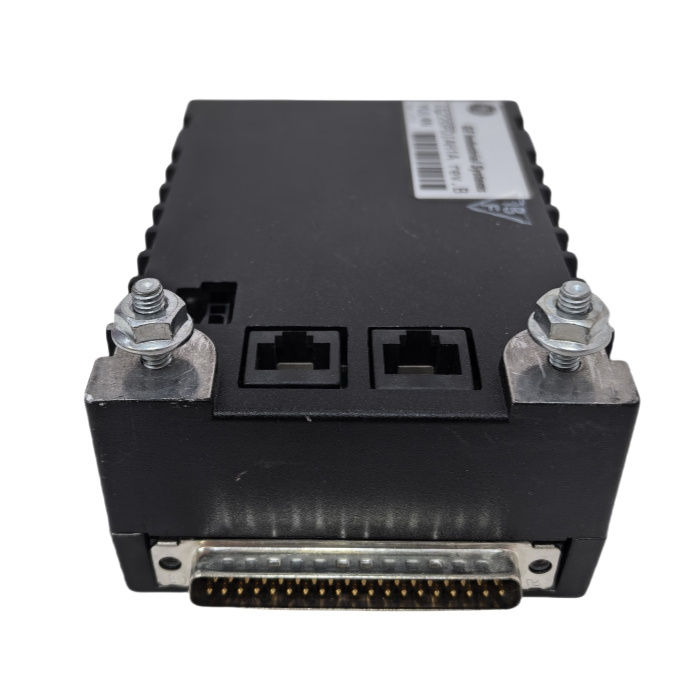

- Ethernet Ports: Two Ethernet ports for high-speed data transfer and communication with other control system components.
5. Application Fields
The GE IS220PDIAH1A is widely used in:
- Power Industry: Control and monitoring in power plants and substations.
- Petrochemical Industry: Process control, safety interlocks, and other critical control applications.
- Metallurgical Industry: Process control and equipment protection in metallurgy.
- Industrial Automation: Precise control and monitoring of various equipment in automation systems.
