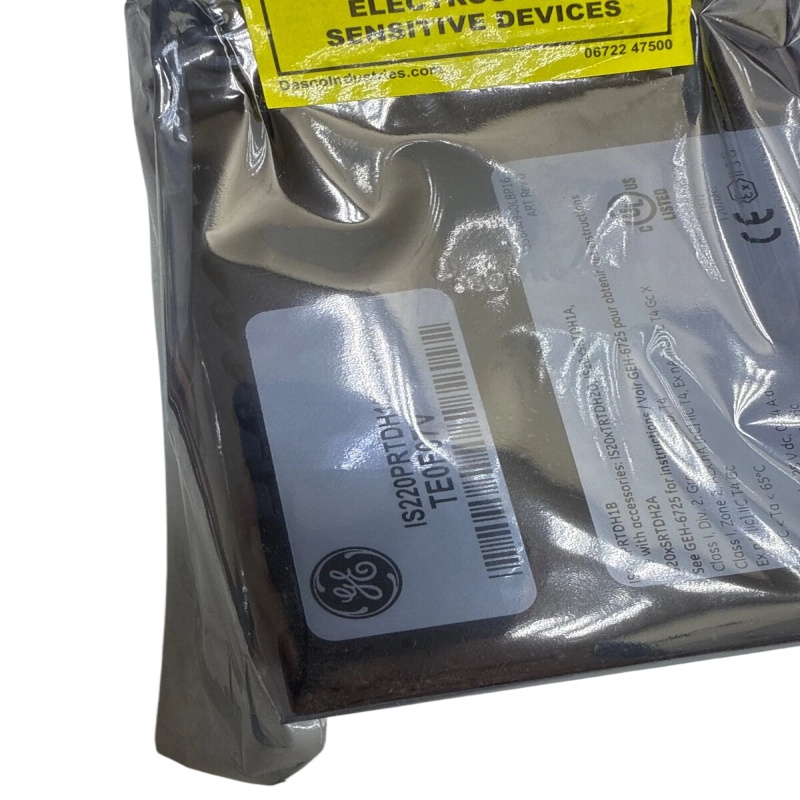

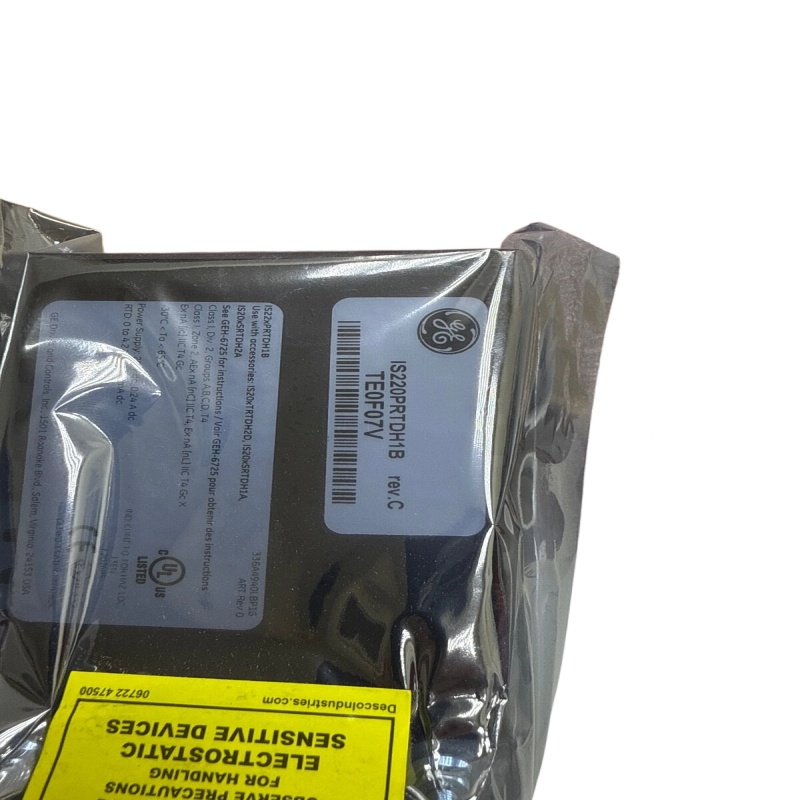

GE IS220PRTDH1B — Overview

GE IS220PRTDH1B is an RTD (Resistance Temperature Detector) input I/O pack designed for the GE Mark VIe / Mark VIeS turbine control system. It is widely used in gas turbines, steam turbines, power plants, and heavy industrial automation where accurate temperature monitoring is critical.

1) Basic Information

Manufacturer: General Electric (GE)
Model: IS220PRTDH1B
Series: Mark VIe / Mark VIeS
Product Type: RTD Input Module / I/O Pack
Function: Industrial temperature measurement & monitoring

This module collects temperature signals from RTD sensors and sends the data to the turbine control system for protection, monitoring, and control.

2) Main Functions

Temperature acquisition

Designed to read platinum RTDs such as:
- Pt100
- Pt200
- Pt500
- Pt1000

Industrial communication

Interfaces RTD terminal boards with the Mark VIe control network.
Connects to one or two I/O Ethernet networks.

Turbine protection role

Typical monitored temperatures:

Bearing temperature
Stator winding temperature
Lube oil temperature
Exhaust and process temperatures

These measurements are essential for trip protection and performance optimization.

3) Key Features

High-precision measurement

16-bit A/D conversion for accurate temperature monitoring
High measurement accuracy and noise immunity

Multiple RTD channels

Up to 8–10 RTD inputs per pack (depending on configuration)
Terminal boards can expand to 16 RTD inputs

Hot-swap capability

Can be replaced without shutting down the system, reducing downtime.

Industrial reliability

Galvanic isolation of RTD circuits
LED diagnostics and self-test functions
Designed for harsh environments

4) Technical Specifications (Typical)

Parameter	Value
RTD types	Pt100 / Pt200 / Pt500 / Pt1000
Wiring	2-wire & 3-wire
A/D resolution	16-bit
Network ports	Dual RJ45 Ethernet
Power consumption	~2 W
Operating temperature	approx. −30°C to +65°C
Mounting	DIN rail via terminal board
Certification	UL non-hazardous location approved

5) Compatible Terminal Boards
Commonly used with:
IS200TRTDH2D
IS200SRTDH1A
IS200SRTDH2A
These boards handle field wiring from RTD sensors.

6) Typical Applications
The IS220PRTDH1B is widely used in:
Power generation
Gas turbine temperature monitoring
Steam turbine protection
Oil & Gas / Petrochemical
Process temperature control
Equipment safety monitoring
Heavy Industry
Metallurgy
Chemical plants
Refining systems

7) Simple Summary
The IS220PRTDH1B is a high-reliability RTD temperature input module in GE’s Mark VIe turbine control platform. Its main job is to collect precise temperature data from RTD sensors and feed it to the turbine control system, ensuring safe and efficient operation of critical equipment.
