GE PAC8000

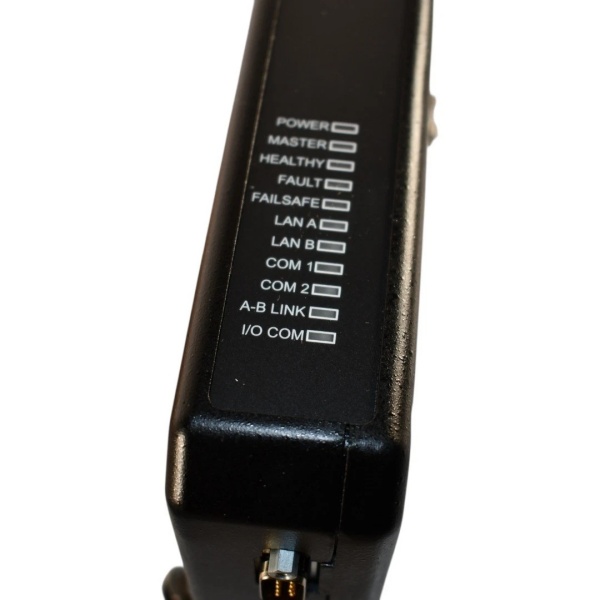

GE PAC8000 Series Overview
The GE PAC8000 is a modular process control system developed by GE Intelligent Platforms, combining the functions of both DCS (Distributed Control System) and PLC (Programmable Logic Controller). Designed for harsh industrial environments, the system adopts an open architecture that allows flexible combinations of controllers, I/O modules, communication buses, and safety subsystems—supporting scalable configurations from just a few points to several thousand.
1. Key Features
| Item | Description |
|---|---|
| Modular Design | Controllers, I/O, power supplies, and bus interfaces are plug-in modules supporting DIN-rail installation—facilitating field expansion and maintenance. |
| Wide Operating Temperature Range | -40 °C to +70 °C; designed to withstand extreme temperature, corrosion, shock, and vibration. |
| Intrinsic Safety (IS) | Supports wiring for Zone 2/Division 2 and even Zone 0/Division 1 intrinsic safety requirements, suitable for hazardous areas. |
| Redundancy & Safety | The SafetyNet subsystem provides SIL 2 (up to SIL 3 for certain modules) safety certification, offering redundant controllers, networks, and power supplies for fault tolerance. |
| Multi-Protocol Compatibility | Supports Ethernet, RS-232/RS-485, Modbus, Profibus, Railbus, and HART fieldbus communication. |
| Programming Environment | The Workbench software complies with IEC 61131-3 standards (Ladder Diagram, Structured Text, Function Block, etc.) and includes engineering, diagnostics, and online maintenance tools. |
| High Reliability | Features dual-hardware and fail-safe mechanisms with a reliability rating of up to 99.999%. |
2. Main Hardware Specifications (Example: 8521-LC-MT Logic Controller)
- CPU: 32-bit RISC
- Memory: 256 KB RAM; 1 MB program storage
- Analog I/O: 8 analog inputs, 4 analog outputs
- Digital I/O: 16 digital inputs, 8 digital outputs
- Communication Interfaces: RS-232, RS-485, Ethernet
- Dimensions/Weight: 229 mm × 178 mm × 45 mm; approx. 2 kg
Common Module Examples
| Module Model | Type | Channels | Key Parameters |
|---|---|---|---|
| 8101-HI-TX | Analog Input (Safety) | 8 × 4–20 mA | HART support; 16-bit resolution; ±0.1% accuracy |
| 8115-DO-DC | Digital Output | 8 NPN/PNP channels | 2 A per channel; over-current and short-circuit protection |
| 8121-DI-DC | Digital Input | 16 × 24 V DC | High isolation; ideal for industrial monitoring |
| 8106-TI-RT | RTD Input | 4 channels | Designed for temperature measurement in oil, gas, and chemical industries |
| 8920-PS-DC | Intrinsically Safe DC Module | Multiple I/O | Suitable for explosive zones; meets ISA SP71.04 G3 protection rating |
3. Application Areas
- Oil, Gas & Chemical Industries: Process parameter monitoring (temperature, pressure, flow) and control with intrinsically safe I/O.
- Power, Metallurgy & Energy: Real-time control and safety monitoring in power plants, boilers, and transmission/distribution systems.
- Water & Environmental Engineering: Automation for pumping stations and wastewater treatment facilities.
- Manufacturing, Transportation & Building Automation: Discrete and process control for production lines, rail systems, and building management.
4. Key Advantages Summary
- Reliability: Dual-redundant hardware and fail-safe design support continuous 24/7 operation.
- Flexibility: Modular architecture, open bus design, and rich I/O and communication options to meet multi-industry needs.
- Safety: SafetyNet and intrinsically safe I/O comply with IEC 61508 / ISA safety standards, providing SIL 2/3 functional safety levels.
- Ease of Maintenance: Hot-swappable I/O, comprehensive diagnostics, and unified engineering software reduce commissioning and maintenance costs.
