Product Overview

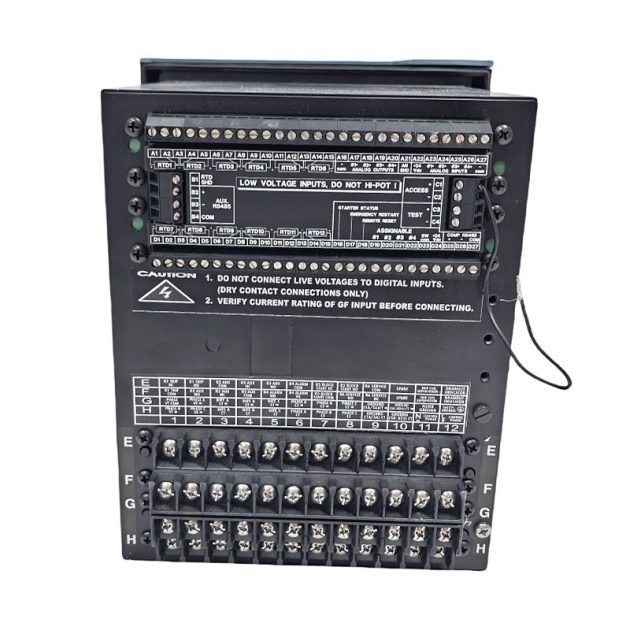

The GE SR465-P5-HI-A20 is a advanced power management relay designed for industrial and utility applications. This versatile protection relay offers comprehensive monitoring, protection, and control functions for electrical power systems.

Technical Specifications

Parameter Specification
Model SR465-P5-HI-A20
Manufacturer GE (General Electric)
Input Voltage 85-265 VAC/VDC
Frequency Rating 50/60 Hz
Number of Analog Inputs 5 Current Transformer Inputs
Relay Outputs 5 Form C (changeover)
Communication Protocols Modbus RTU, DNP3.0, IEC 60870-5-103
Display Backlit LCD with user-friendly interface
Operating Temperature -40°C to +85°C (-40°F to +185°F)
Enclosure Rating IP50 (front panel), IP20 (overall)
Mounting DIN rail or panel mount
Dimensions 177.5mm H × 128.5mm W × 119mm D (7.0″ H × 5.06″ W × 4.69″ D)

Key Features

  • Advanced power management and protection functions
  • Comprehensive metering capabilities
  • Multiple communication protocol support
  • User-configurable settings and logic
  • Event recording and oscillographic capabilities
  • High immunity to electromagnetic interference
  • Front-accessible communications ports
  • LED status indicators for quick visual assessment

Applications

  • Industrial power distribution systems
  • Utility substation automation
  • Generator protection and control
  • Motor protection applications
  • Feeder protection and management
  • Renewable energy integration systems

Ordering Information

The SR465-P5-HI-A20 is part of GE’s Multilin SR series. When ordering, specify the complete model number to ensure correct configuration. Contact authorized GE distributors for pricing and availability.
