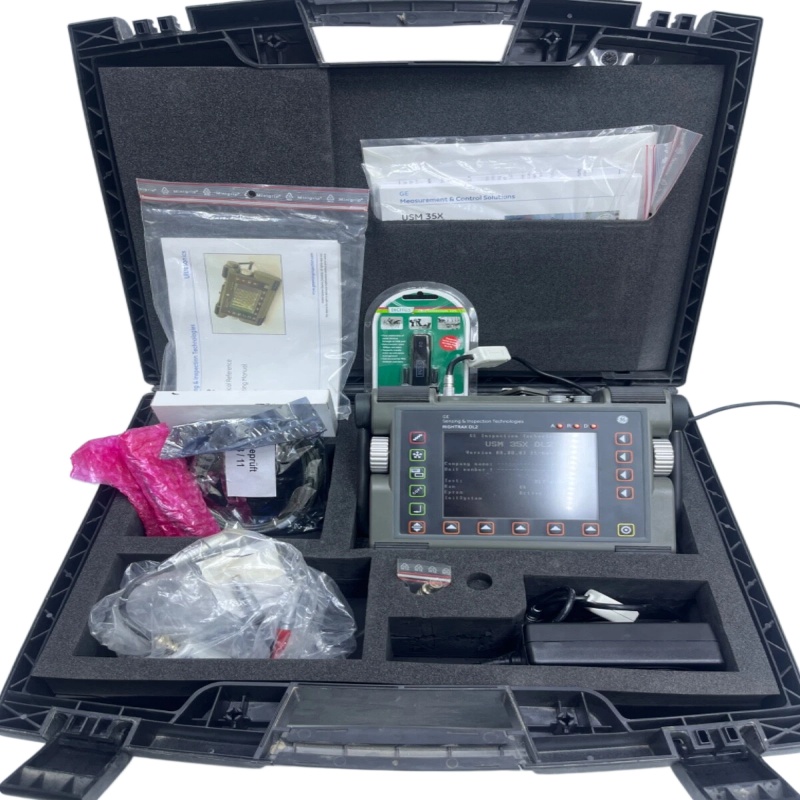

GE USM35X Ultrasonic Flaw Detector – Portable NDT Solution for Weld and Material Inspection
The GE USM35X Ultrasonic Flaw Detector from GE Inspection Technologies is a rugged, high-performance portable instrument designed for non-destructive testing (NDT). Built for field and workshop environments, the USM35X delivers reliable detection of internal defects in welds, pipes, pressure vessels, and metal structures.
This proven Krautkramer-series device remains widely used in the global NDT industry thanks to its durability, accuracy, and powerful ultrasonic performance.
Product Overview
The GE USM35X is engineered for fast and accurate flaw detection across a wide range of industrial applications. Its compact design, long battery life, and IP66 protection rating make it ideal for demanding inspection environments such as oil & gas, power generation, aerospace, and heavy manufacturing.
Primary Functions
- Detection of internal cracks, voids, inclusions, and lack of fusion
- Weld inspection and evaluation
- Thickness measurement and corrosion monitoring
- Inspection of forgings, castings, and structural components
Key Features and Benefits
Rugged Portable Design
- IP66 rated for dust-tight and water-resistant operation
- Designed for outdoor and harsh industrial environments
- Lightweight and ergonomic for field inspection
- Approx. 14-hour battery operation for full-day use
Advanced Color Display
- 5.7-inch high-resolution color TFT screen
- Color-coded A-scan and gates for improved visibility
- VGA output for external monitor connection
- Easy operation with intuitive interface
High-Performance Ultrasonic Capability
- Wide frequency range: 0.2 – 20 MHz
- Gain range up to 110 dB for deep penetration
- Measurement range up to 9,999 mm (steel)
- Dual independent gates for accurate defect positioning
- Supports DAC, TCG, and DGS evaluation methods
Data Storage and Reporting
- Stores up to 800 inspection records
- RS232 and VGA communication interfaces
- Supports inspection documentation and traceability
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 0.2 – 20 MHz |
| Measurement Range | Up to 9,999 mm (steel) |
| Sound Velocity Range | 1,000 – 15,000 m/s |
| Gain Range | 0 – 110 dB |
| Pulse Repetition Frequency | 4 – 1000 Hz |
| Display | 5.7″ 1/4 VGA Color TFT |
| Data Storage | 800 files |
| Protection Rating | IP66 |
| Battery Life | Up to 14 hours |
| Weight | Approx. 2.2 kg |
Typical Applications
The USM35X is widely used across industries requiring reliable ultrasonic inspection:
- Oil & Gas pipeline inspection
- Power plant and turbine maintenance
- Shipbuilding and offshore structures
- Aerospace component inspection
- Manufacturing quality control
- Structural steel and bridge inspection
Available Models
The USM35X series includes several versions tailored to specific inspection standards:
- USM35X Standard – General flaw detection
- USM35X DAC – Includes Distance Amplitude Curve functionality
- USM35X S – Includes DGS evaluation mode
- USM35X JE – Japanese standards (JIS/JSNDI) compliant
Replacement and Lifecycle Status
The GE USM35X has been officially discontinued, but it remains highly demanded in the secondary market and service sector. Recommended newer models include:
- USM Go+
- USM 36
Many facilities continue using the USM35X due to its proven reliability and compatibility with existing inspection procedures.
Why Choose the GE USM35X?
- Proven and trusted ultrasonic flaw detector
- Rugged IP66 design for field inspections
- Excellent detection performance across multiple industries
- Long battery life and portable design
- Reliable data storage and reporting capabilities
