Heidenhain 748880-21
Heidenhain 748880-21 is a scale body parts kit of the LC 201 series linear encoders. Its main technical parameters are as follows:
| Parameter | Value | Description |
|---|---|---|
| Product name | Scale body assembly (Parts kit) | For long-travel enclosed linear encoders |
| Order No. / ID | 748880-21 | — |
| Measuring length | 7,240 mm | Suitable for ultra-long travel measurements |
| Grating period | 40.000 µm | Standard LC 201 grating |
| Accuracy class | ± 5.0 µm | Absolute error range |
| Thermal expansion coefficient | ≈ 10 × 10⁻⁶ K⁻¹ (steel) | Linear expansion coefficient |

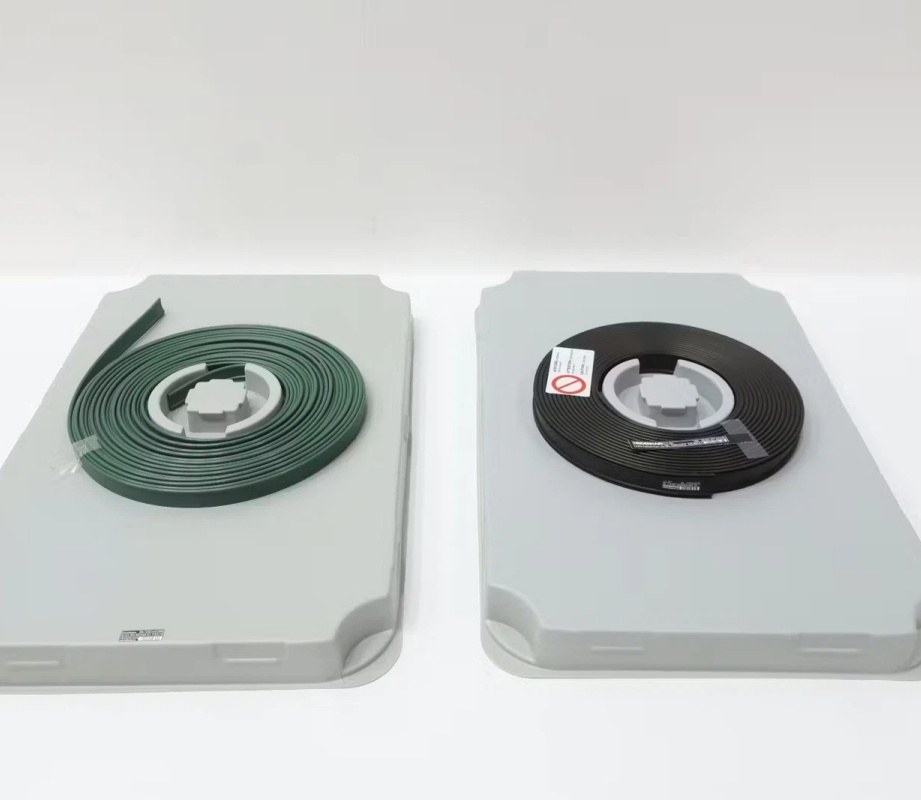

| Structural components | 1 grating tape, 1 tape clamping unit, 1 tape tensioning unit, 2 sealing lips, 3 bearing strips, 2 housing seals, and various small parts | Complete enclosed linear scale assembly |
| Mounting method | Mirrored fixing | Enables symmetrical installation at both ends |
| Operating temperature range | −10 °C to +80 °C | Suitable for industrial environments |
| Weight | Approx. 20 g (including grating tape) | Lightweight design |
| Power supply / interface | 12-pin M23 cable (approx. 1 m) | Compatible with Heidenhain encoder readheads |
| Protection rating | IP40 (rear cover) / IP54 (front cover) | Dust and splash protection |
| Applicable machines | Large CNC machine tools, coordinate measuring machines (CMMs), linear positioning systems, etc. | For high-precision, long-travel industrial measurement applications |
