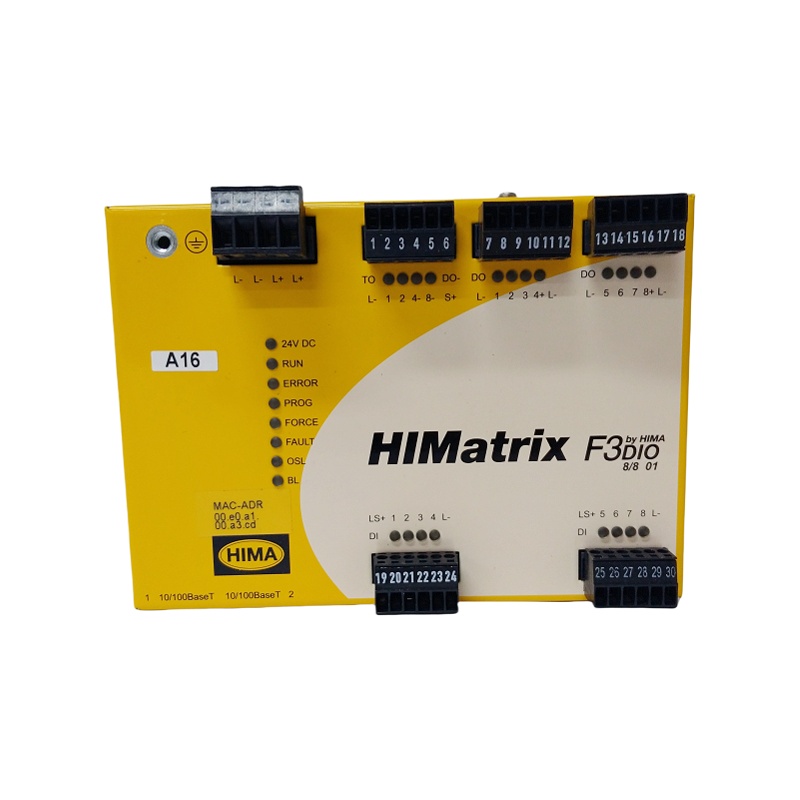

HIMA F3 DIO 8/8 01
HIMA F3 DIO 8/8 01 Overview
The HIMA F3 DIO 8/8 01 is a safety-related digital I/O module from the HIMA HIMatrix series, designed for use in process industries, machine automation, and other safety-critical systems. The following sections provide an overview of its structure, technical specifications, functional features, and typical applications, with key reference standards noted.
1. Basic Structure and Functions
| Item | Description |
|---|---|
| Model | F3 DIO 8/8 01 (also written as F3 DIO 88 01 or F3DIO8/801) |
| Part No. | 982200425 (Made in Germany) |
| Input Channels | 8 digital inputs (DI) |
| Output Channels | 8 digital outputs (DO), including 8 × DO+ (L-GND), 2 × DO– (S+ GND), and 2 × pulse outputs |
| Communication | Safe-Ethernet (SILworX / ELOP II) connection to HIMax / HIMatrix controllers; the module itself does not run user programs |
| Safety Integrity Level | TÜV-certified, up to SIL 3 (in compliance with IEC 61508, IEC 61511, IEC 62061) |
| Applicable Standards | IEC 61508, IEC 61511, EN 50125-3, EN 50155, IEC 61373, EN 60079-15, EN 60529, and others |
2. Key Technical Specifications
| Parameter | Description |
|---|---|
| Operating Voltage | 24 V DC (for both digital inputs and outputs) |
| Output Current | Typically 500 mA (suitable for industrial loads) |
| Isolation | Electrical isolation ensures safe signal transmission |
| Operating Temperature | 0 °C ~ +60 °C |
| Storage Temperature | –25 °C ~ +70 °C (T1 class) |
| Protection Class | IP54 (dust- and splash-proof) |
| Power Consumption | 9 W – 27 W; recommended 10 A time-delay fuse and safety-isolated power supply |
| Installation | Metal housing, supports hot-swap for easy field maintenance |
| Compatibility | Integrates with PLC, DCS, or TSI systems via HART, Modbus, Profibus DP, OPC, and other fieldbus protocols |
| Fault Diagnosis | Built-in self-test, fault LED indication, error codes, and line monitoring for short/open circuits |
3. Functional Features
- Redundant Design:
Dual-channel internal redundancy allows safe operation even in case of a single-point failure, ideal for continuous industrial processes. - Flexible Output Configuration:
Provides both DO+ (low-level) and DO– (high-level) output options to meet various load requirements. - Pulse Output:
Two pulse outputs can be used for counter or frequency signal generation. - Safe Ethernet Communication:
Connects to HIMax / HIMatrix controllers via Safe-Ethernet for high-speed, deterministic, and safety-certified data transmission. - Self-Diagnostics and Fault Alarming:
Continuously monitors I/O channel status; automatically illuminates the FAULT LED and reports error codes for rapid troubleshooting. - Hot-Swap Capability:
Allows module replacement during system operation, minimizing downtime and improving system availability.
4. Typical Applications
- Process Industries:
Safety interlocking and emergency shutdown (ESD) in oil, gas, chemical, and petrochemical plants. - Machine Automation:
Safety door monitoring, light curtain input, and emergency-stop control in robots, packaging lines, and printing machines. - Energy Facilities:
Safety monitoring and protection in power generation and distribution systems. - Transportation Systems:
Safety interlocks for railway automation, port handling, and material transport systems.
Summary
The HIMA F3 DIO 8/8 01 is a SIL 3-certified digital I/O expansion module providing 8 inputs, 8 outputs (including DO+ and DO–), and 2 pulse outputs. Featuring Safe-Ethernet communication, redundant design, self-diagnostics, and hot-swap support, it delivers high reliability and safety for demanding industrial automation and process control environments.
