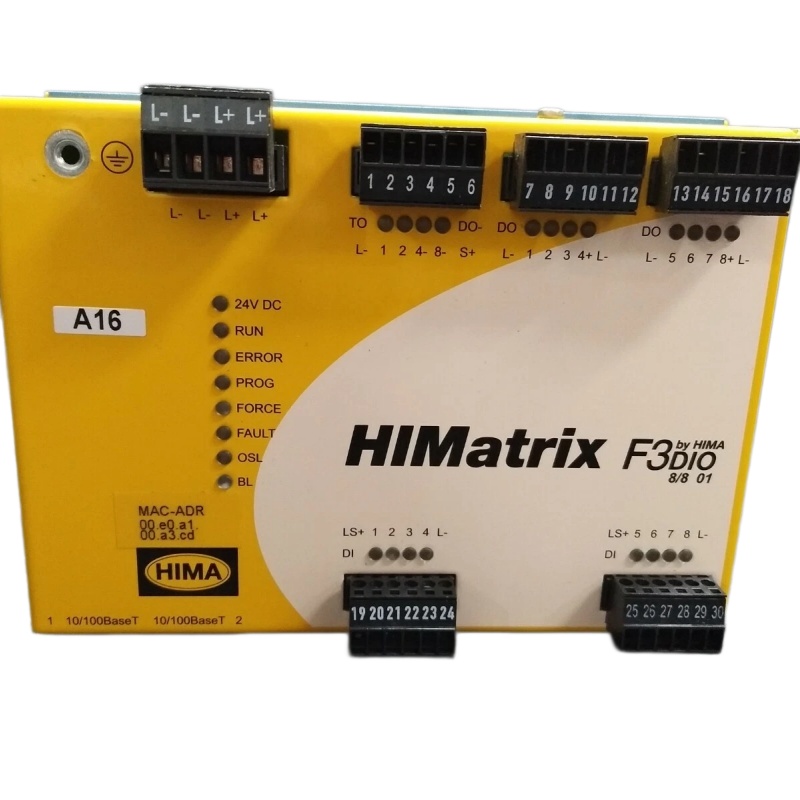

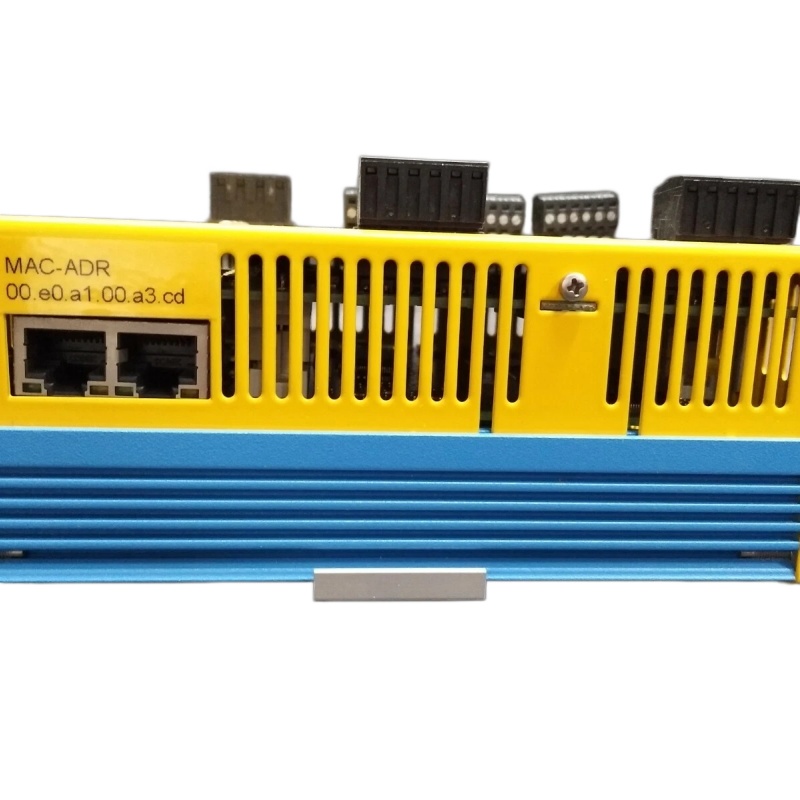

The HIMA F3 DIO 8/8 01 is a safety-related digital input/output (Digital I/O) module manufactured by HIMA. It is commonly used in industrial automation systems where high safety integrity is required.

1. Basic Parameters

• Model: F3 DIO 8/8 01 (Alternative designation: F3DIO8801)
• Manufacturer: HIMA (Germany)
• Type: Safety-Related Digital I/O Module
• Application Areas: Process industries, machine automation, process control, energy management, and other safety-critical systems

2. Functional Features

Channel Configuration

• Digital Inputs: 8 channels
• Digital Outputs: 8 channels (including 8 DO+ outputs and 2 DO− outputs)
• Special Functions: Typically equipped with 2 pulse outputs

Safety and Certification

• Safety Level: Complies with SIL 3, Cat. 4, and PL e safety standards
• Certification: TÜV certified
• Protection Rating: IP54, suitable for Zone 2 hazardous environments (dust and water protection)

Interfaces and Compatibility

• Communication Protocols: Supports Safety Ethernet, Modbus, Profibus DP, OPC, and other industrial protocols
• System Integration: Compatible with various PLC, DCS, and ESD systems, including platforms from ABB, GE, Allen-Bradley, Honeywell, and Yokogawa.

3. Physical Characteristics

• Power Supply: 24 V DC (requires a safety-isolated power supply)
• Output Current: Typically 500 mA (depending on the output type)
• Temperature Range:
  • Operating temperature: 0°C to +60°C
  • Storage temperature: –25°C to +70°C
• Weight: Approximately 1 kg
• Enclosure Material: Metal housing with strong resistance to vibration and shock

Conclusion

The HIMA F3 DIO 8/8 01 is a highly reliable digital I/O expansion module designed specifically for industrial safety systems. It provides an 8-input/8-output channel configuration and SIL 3 safety certification, enabling stable and dependable safety control in demanding industrial environments such as oil & gas, energy, and manufacturing.
