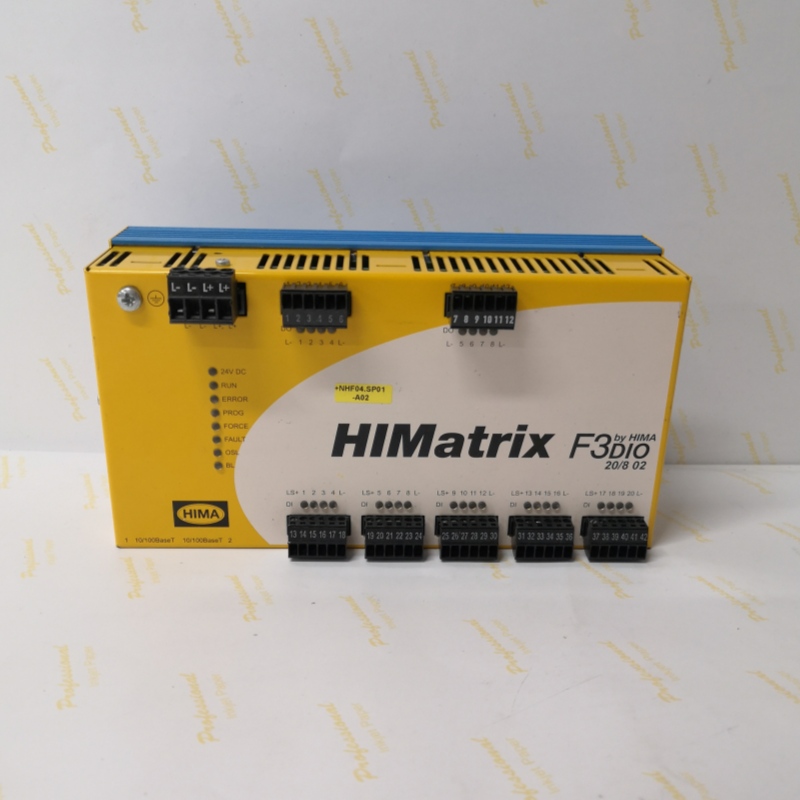

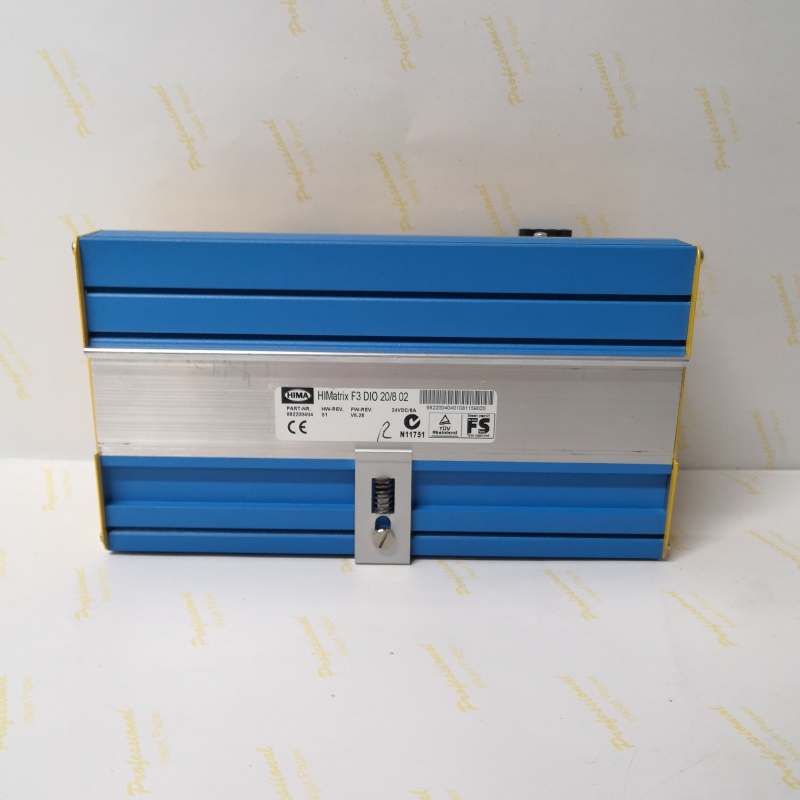

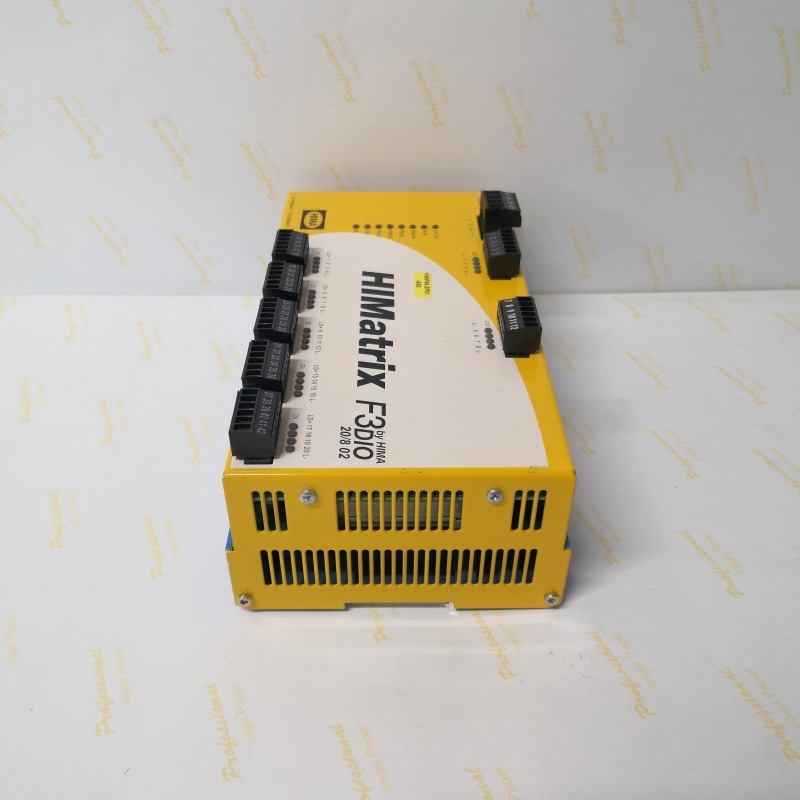

HIMA F3DIO20/802
The HIMA F3DIO20/802 is a high-performance digital input/output module designed for safety-critical applications in industrial automation. Below is a detailed overview of its technical specifications, features, and applications, synthesized from the search results.
📊 1. General Overview
- Function: The HIMA F3DIO20/802 is a safety-related digital I/O module used for industrial automation and control systems. It is part of HIMA’s F3 series and is designed to handle both input and output signals in safety-critical environments .
- Safety Certification: It complies with SIL 3 (Safety Integrity Level 3) as per the IEC 61508 standard, making it suitable for applications where high reliability and safety are paramount .
⚙️ 2. Technical Specifications
Here is a summarized table of the key technical parameters:
| Parameter | Specification |
|---|---|
| Input Channels | 20 digital inputs |
| Output Channels | 8 digital outputs |
| Input Current | 5mA |
| Output Current | 500mA (sourcing or sinking) |
| Operating Voltage | 24V DC |
| Voltage Range | DC 24V |
| Operating Temperature | -40°C to +70°C |
| Protection Level | IP20 or IP65 |
| MTBF (Mean Time Between Failures) | >150 years |
| Dimensions | 86 mm (W) × 246 mm (H) × 122 mm (D) |
| Weight | Approximately 1.7 kg |
| Interface | F3 interface or safeEthernet for connecting to HIMax or HIMatrix controllers |
| Safety Level | SIL 3 (IEC 61508) |
💡 3. Key Features
- Redundancy and Diagnostics: The module incorporates redundant design and fault self-diagnosis capabilities, ensuring high reliability and quick fault detection .
- Protection Mechanisms: It includes overload protection, overvoltage protection, and short-circuit protection to safeguard the system and connected devices .
- Hot-Swappable: Supports hot-swapping, allowing for maintenance and replacement without shutting down the entire system .
- Compact Design: The metal housing is compact and robust, making it suitable for space-constrained applications .
- Logic Operations: Supports basic safety functions like AND, OR, NOT logic operations and time delay functions .
ABB Allen-Bradley Alstom Bently Emerson Foxboro
GE MOOG Schneider Woodward HIMA Honeywell
ABB 5SHY series hot selling//large inventory//brand new//affordable price
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
HIMA Company Introduction
HIMA is a leading global manufacturer of safety control systems, headquartered in Landau, Germany.
The company was founded in 1908 and has a history of over 110 years. HIMA is committed to providing safe and reliable solutions for industrial automation applications, and its products are widely used in industries such as oil and gas, chemical, power, steel, and automotive.
