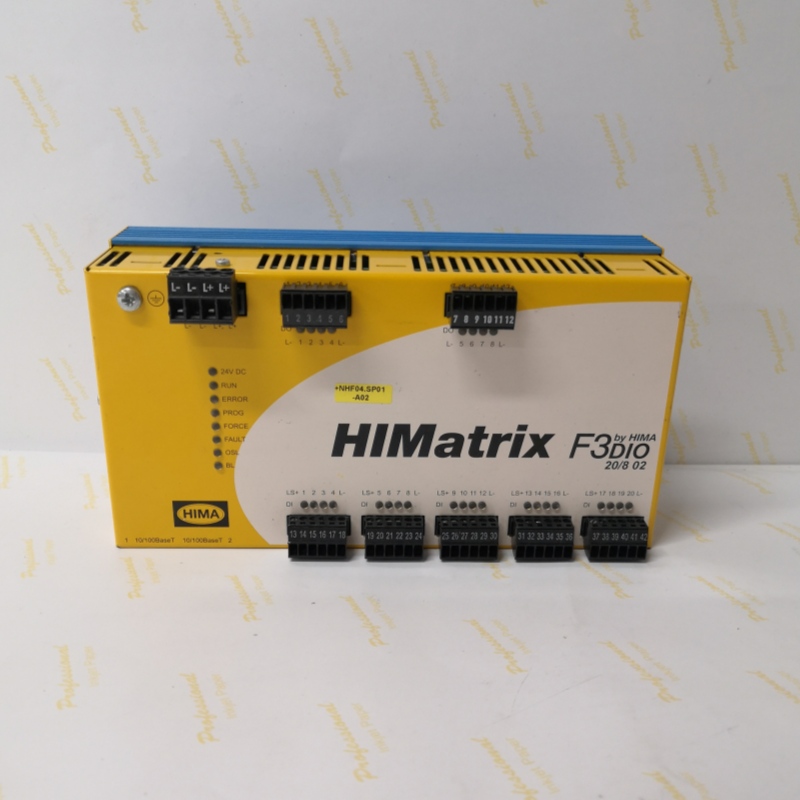

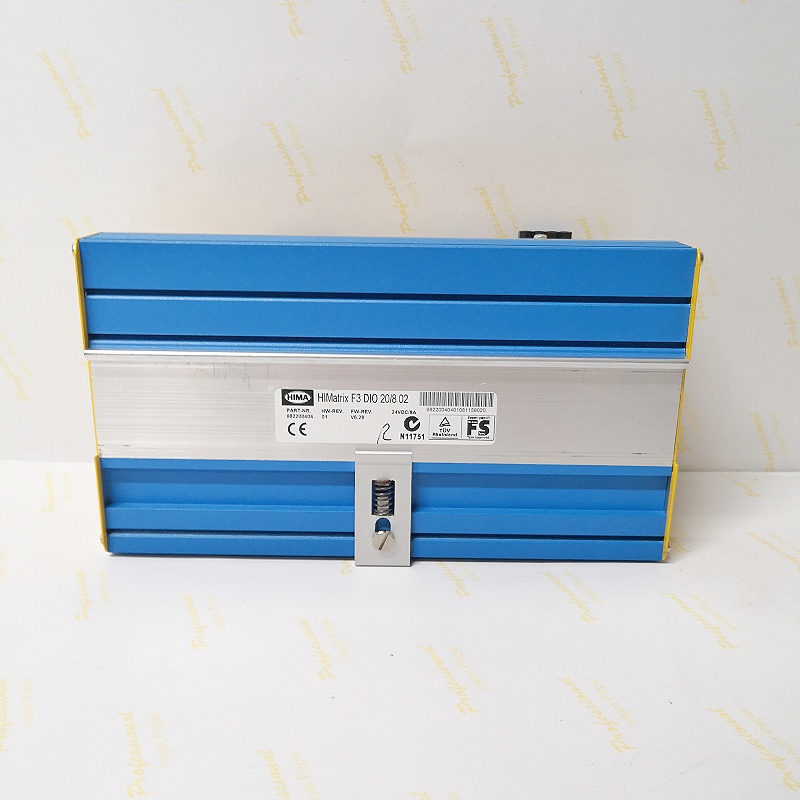

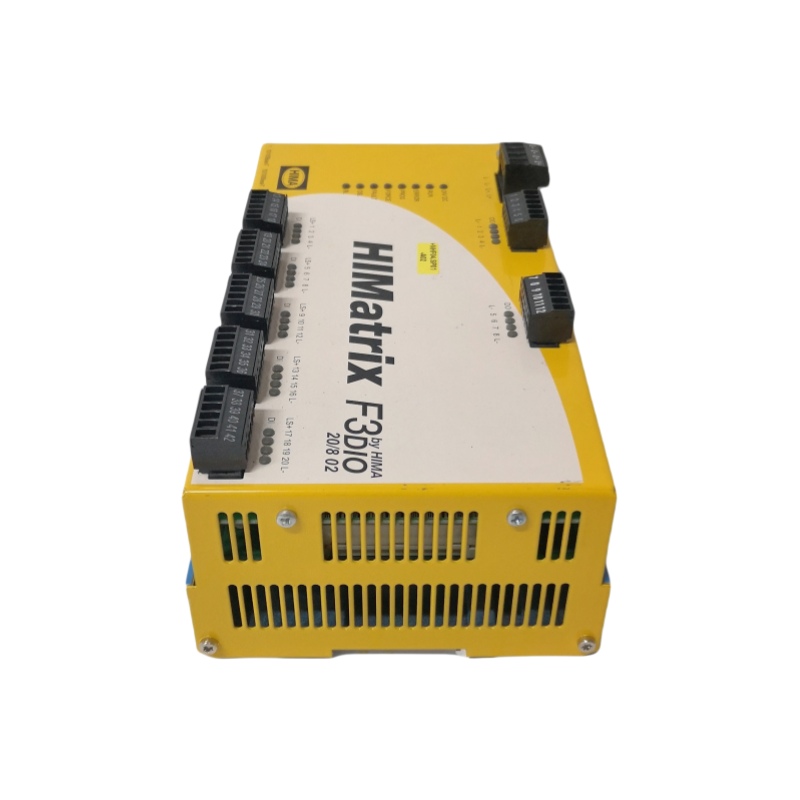

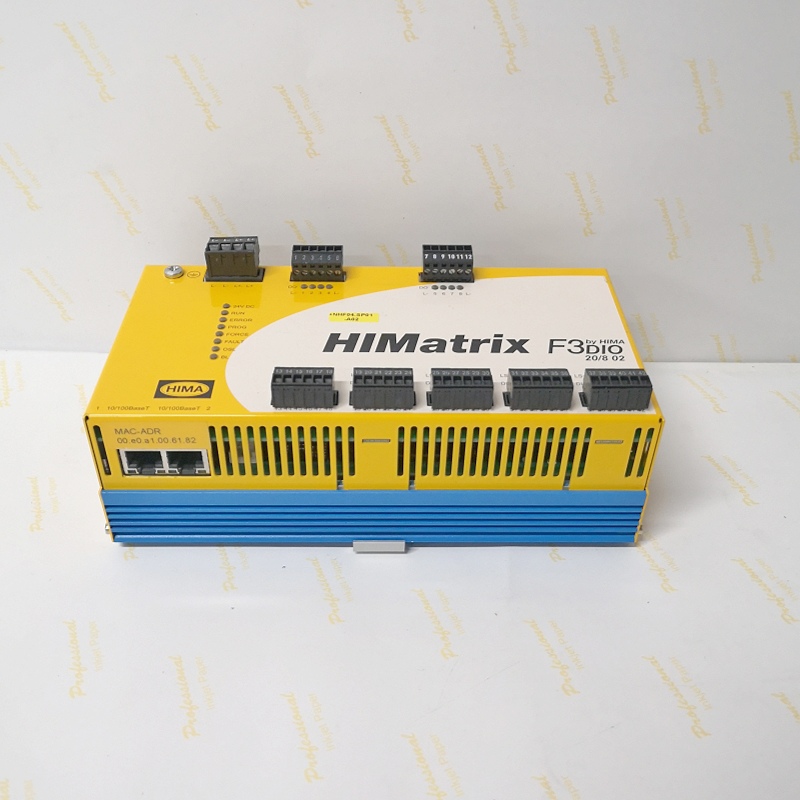

HIMA F3DIO20/802 982200442 Safety Relay Module

HIMA F3DIO20/802 982200442

HIMA F3DIO20/802 (Part No. 982200442) Technical Specifications Overview

1. General Information

Product Type: Safety-related Remote I/O Module / Safety Relay Module
Brand/Model: HIMA F3DIO20/802
Part Number: 982200442
Compliance with Safety Standards: IEC 61508, ISO 13849, SIL 3 (IEC 61508)

2. Electrical Parameters

Parameter	Specification
Rated Operating Voltage	24 V DC (optional 48 V DC)
Input Current	5 mA (nominal), ≤ 8 mA (max.)
Output Current	0.5 A (nominal), ≤ 0.5 A (max.)
Output Current (alternative spec)	2 A
Operating Voltage Tolerance	–15 % ~ +20 % (24 V DC)
Response Time	≤ 20 ms
Protection Class	IP67; IP20 version also available
Power Supply	DC 24 V (–15 % ~ +20 %)

3. I/O Channels

Digital Inputs: 20 channels
Digital Outputs: 8 channels (can receive up to 16 digital outputs via SafeEthernet)
Channel Count (alternative description): 2 channels (possibly referring to safety-redundant channels)

4. Communication & Interfaces

Connection: SafeEthernet (via RJ-45) to HIMax or HIMatrix controllers
Ethernet Ports: 2 × RJ-45, supporting 10BASE-T / 100BASE-Tx, with built-in switch
Enclosure: Compact metal housing system

5. Mechanical Dimensions & Weight

Parameter	Specification
Dimensions (W × H × D)	64 mm × 22.5 mm × 112 mm
Alternative Dimensions	86 mm × 246 mm × 122 mm (different model or packaging)
Weight	0.12 kg
Alternative Weight	≈ 1.7 kg

6. Environmental & Reliability Data

Operating Temperature Range: –40 °C ~ +70 °C
MTBF: > 150 years
Protection Class: IP67 (dustproof & waterproof) or IP20 (depending on version)

7. Functions & Limitations

Functional Limitation: Cannot run user programs independently, used only as a safety I/O extension
Safety Features: Overcurrent, overvoltage, and short-circuit protection; compliant with SIL 3 reliability requirements
Supported Platforms: Compatible with SILworX, ELOP II, and other plant models

8. Main Application Areas

Process safety, machine safety, functional safety systems
Power generation, chemical industry, manufacturing, and other high-safety-demand sectors
