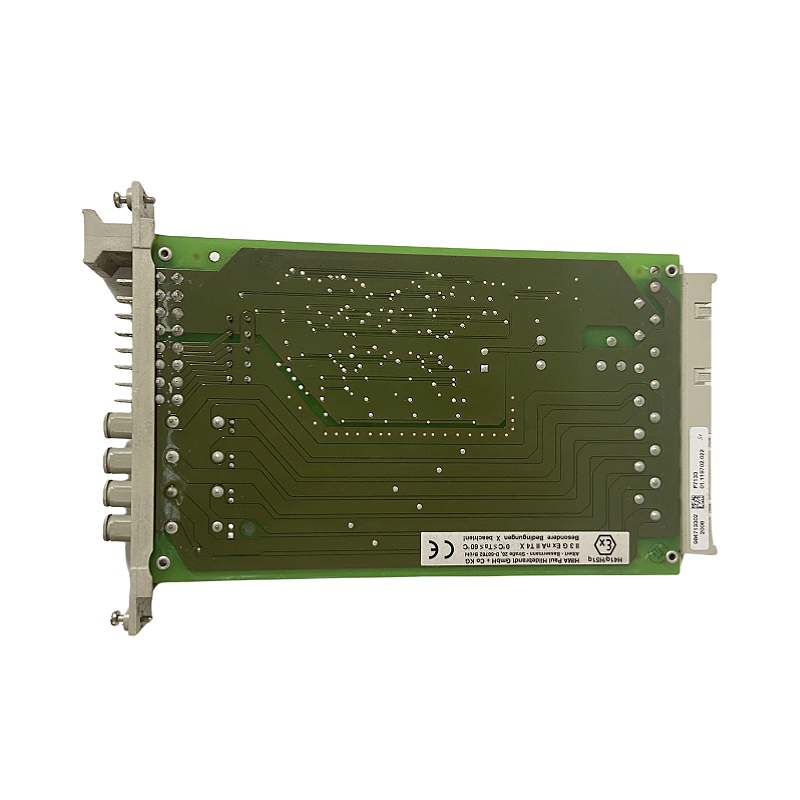

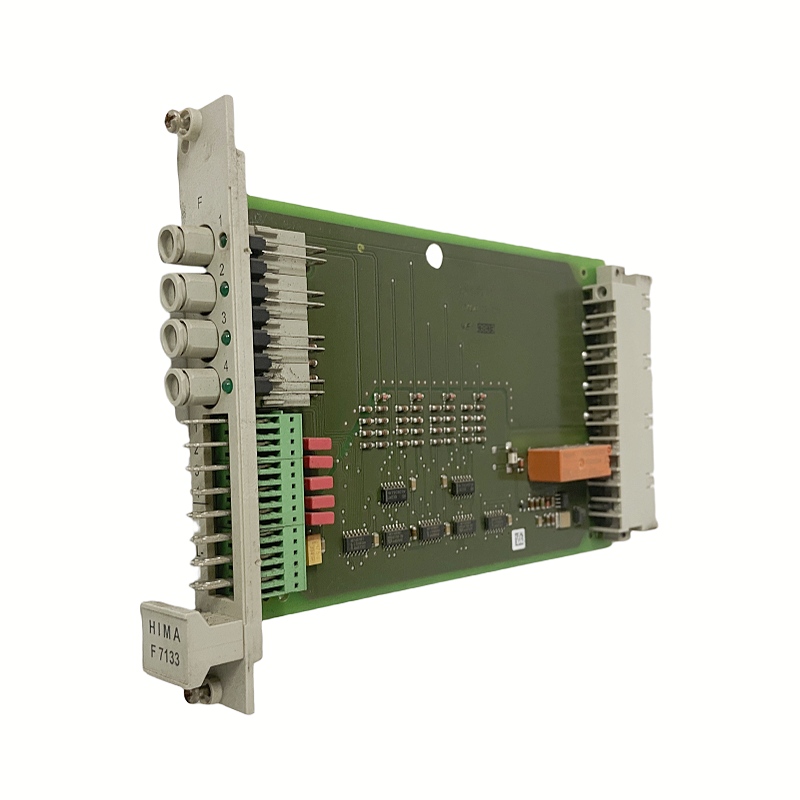

The HIMA F7133 is a 4-channel power distribution module designed for industrial automation and safety systems. Here’s a detailed overview of its technical specifications and features:

⚙️ 1. General Specifications

• Channels: 4 independent distribution channels .
• Input Voltage: Supports 24V DC or 48V DC .
• Residual Voltage: 0V, enhancing safety by reducing electrocution risks .
• Protection Rating: IP20 (suitable for controlled industrial environments) .
• Certifications: Complies with CE and UL standards .

🔧 2. Electrical Characteristics

• Switching Time: Approximately 100 ms (relay-based) .
• Load Capacity: Relay contacts support 30V/4A continuous load per channel .
• Fuse Protection: Each channel has a micro-fuse for overcurrent protection, monitored via an evaluation logic system .
• LED Indicators: Each fuse is paired with an LED for real-time status monitoring (e.g., blown fuse detection) .

📡 3. Communication and Processing

• Communication Interfaces: RS485 and Ethernet .
• Wireless Data Communication: Includes A/D conversion functionality, enabling analog-to-digital signal conversion and transmission via wireless networks .
• Central Controller Functionality: Supports complex control tasks with built-in programming elements and facilitates decentralized control and centralized management .

🏗️ 4. Physical and Environmental Specifications

• Dimensions: 35 mm (width) × 32 mm (height) × 82 mm (depth) .
• Weight: Approximately 0.3 kg .
• Operating Temperature: -40°C to +70°C .
• Installation: DIN rail mounting .

🔩 5. Additional Features

• Redundancy Support: Designed for redundant configurations (e.g., dual, quadruple redundancy) .
• Diagnostics: Built-in diagnostics with maintenance logging (e.g., records of operations like downloads, starts, stops) .
• Modularity: Modular design for easy installation and maintenance .

📊 6. Application Areas

• Widely used in safety-critical systems like Safety Instrumented Systems (SIS) and process control .
• Industries: Oil and gas, power generation, pharmaceuticals,轨道交通 (rail transportation), and manufacturing .
