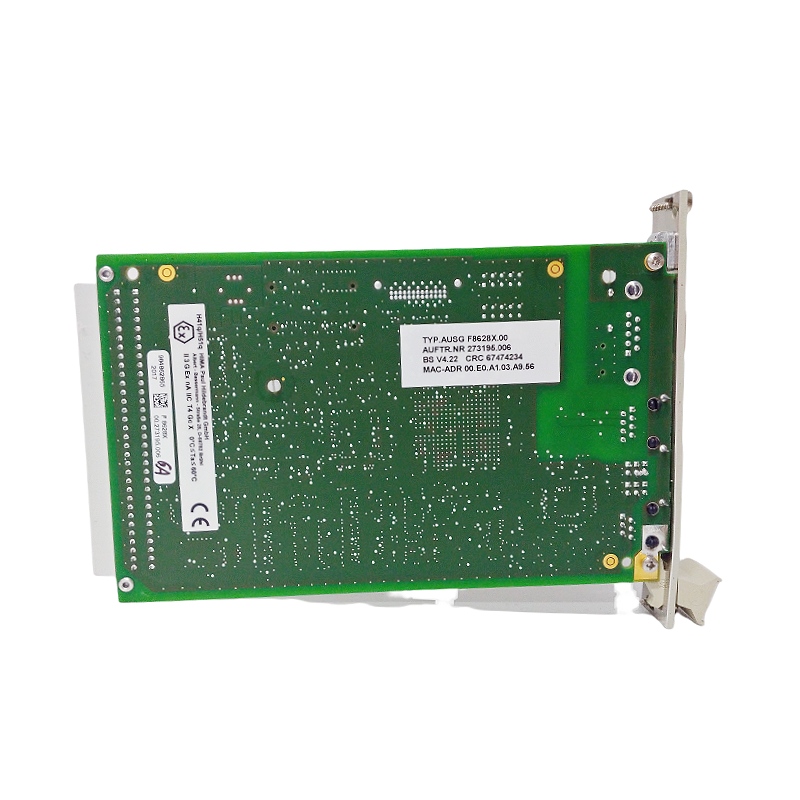

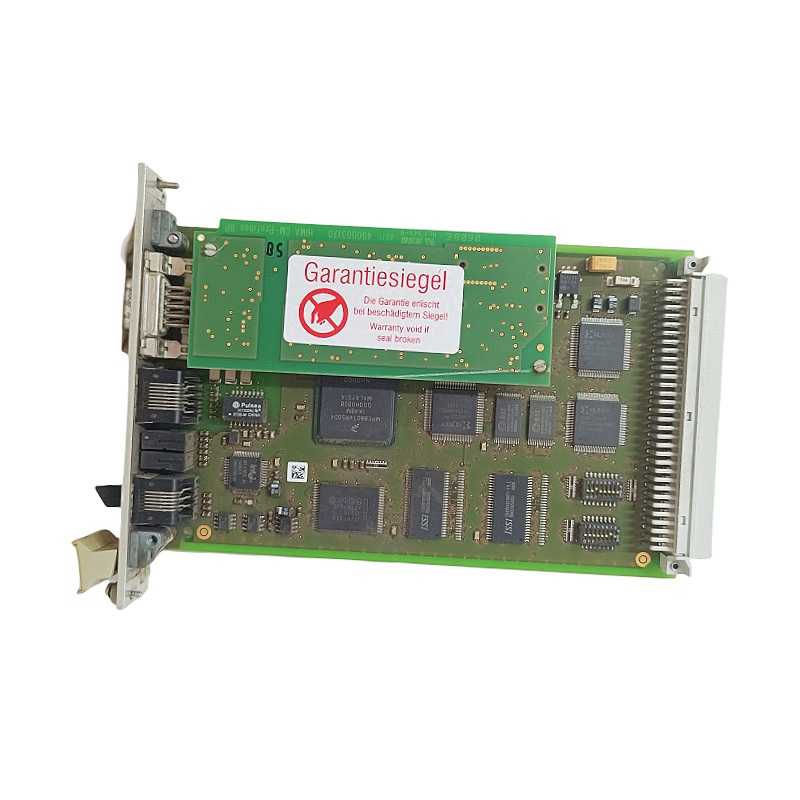

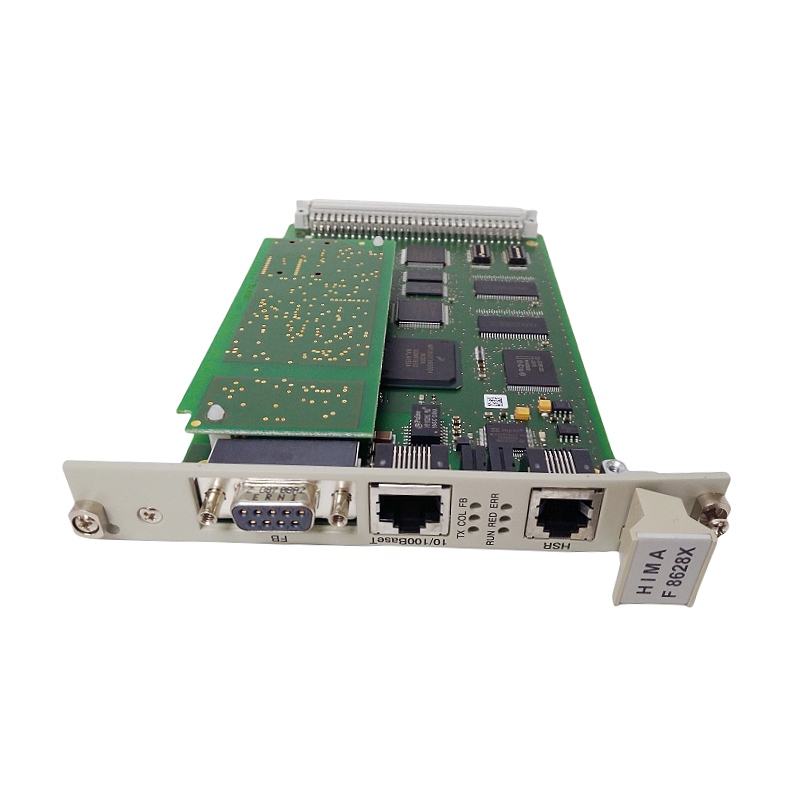

HIMA F8628X
HIMA F8628X Overview
The HIMA F8628X is a dedicated communication module developed by HIMA (Germany) for Safety Instrumented Systems (SIS). It complies with IEC 61511 and IEC 62443 standards, employs SafeEthernet to enable secure and redundant Ethernet communication, and supports multiple industrial protocols.
Key Technical Specifications
| Parameter | Description |
|---|---|
| Communication Protocols | SafeEthernet (single or dual redundancy), compatible with Modbus TCP, IEC 61850, OPC UA, etc. |
| Power Supply | 24 V DC; input voltage 110 – 380 V |
| Dimensions | 3 HU × 4 WU (approx. 3 × 44.45 mm × 4 × 5.08 mm) |
| Operating Temperature | -25 – 55 °C |
| Protection Class | IP20 |
| Certification | IEC 61511 SIL 2/3 certified |
| Part Number | 98 4862865 (F8628X) |
Hardware Features
- Dedicated Safety CPU and OS: The module runs an operating system designed specifically for safety-critical applications. Applications execute within containers, preventing direct access to program code or other CPU firmware components, thereby enhancing security.
- Port Locking: Unused Ethernet ports can be physically locked or disabled to prevent misconnection or unauthorized access.
- Redundant Communication: Supports single or dual redundancy configurations, ensuring high reliability of communication links.
Software and Integration
- Configuration Tool: Network and safety policy configuration, debugging, and validation are performed using HIMA SILworX software.
- Compatibility: Compatible with HIMA controller platforms such as HIMA X-CPU01 and HIMA X-AI 320, as well as the entire HIMA safety controller series.
Typical Application Areas
- Oil & gas, petrochemical, and refining industries
- Power generation and distribution systems
- Metallurgy, pharmaceuticals, and food processing
- Other industrial automation scenarios requiring SIL 2/3 functional safety
Usage and Maintenance Guidelines
- Pre-installation Check: Verify cabinet dimensions, power supply conditions, and port locking requirements.
- Configuration: Use SILworX to complete network topology, protocol mapping, and safety policy setup.
- Commissioning: Check link status and perform functional safety tests to ensure redundant paths operate correctly.
- Routine Maintenance: Inspect interfaces regularly, upgrade firmware, and maintain logs to ensure system reliability.
Conclusion
The HIMA F8628X is a key communication module for SIS applications. With secure and redundant Ethernet communication, broad industrial protocol compatibility, and stringent functional safety certification, it is ideally suited for high-risk industrial environments, enabling safety control at the SIL 2/3 level.
