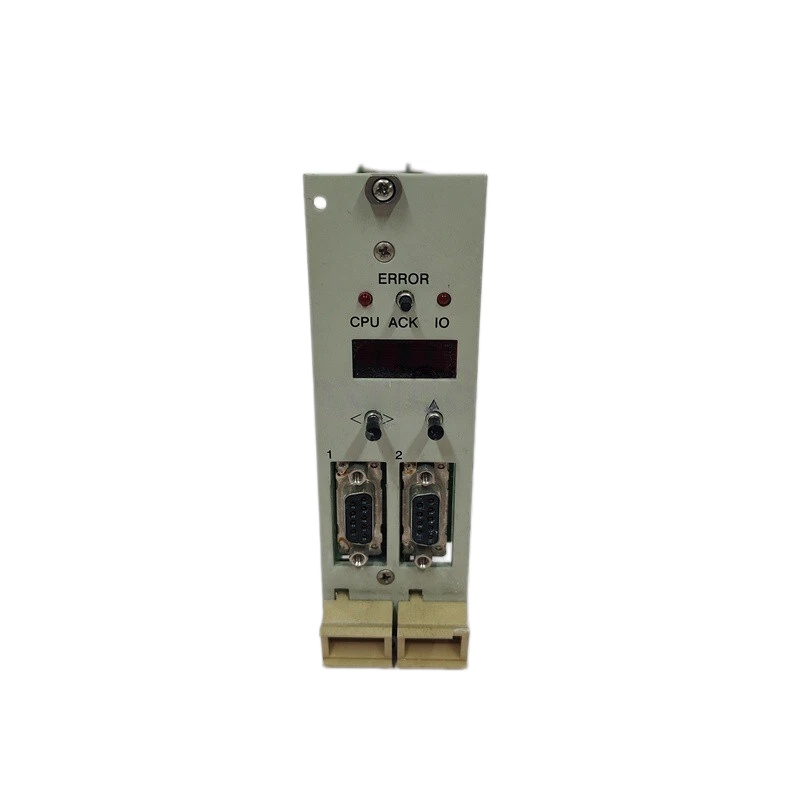

HIMA F8650E is a high-performance industrial safety system module manufactured by the German company HIMA. It is primarily used in industrial environments that require strict safety control, such as petrochemical, power generation, and metallurgy industries.

1. Core Functions and Applications

Safety Core Component:
As a core module of the HIMA Safety Instrumented System (SIS), it is mainly used to build high-reliability process control systems that meet SIL 3 safety integrity level requirements.

Main Application Fields:
It is widely used in industries such as oil and gas, energy, nuclear power, chemical processing, power generation, and transportation to implement process safety systems, emergency shutdown systems (ESD), and safety interlock systems.

2. Key Technical Specifications

Processor:
Equipped with dual microprocessors, Intel 386EX, 32-bit architecture, with a clock frequency of 25 MHz.

Storage and Memory:

• Each microprocessor includes 1 MB Flash-EPROM.
• The operating system occupies 512 KB, while 256 KB SRAM is used for user programs.
• The total memory capacity typically ranges from 512 KB to 8 GB (depending on different data sources).

Communication Interfaces:

• RS-485 Serial Ports: Two electrically isolated RS-485 ports supporting protocols such as Modbus and Profibus.
• Ethernet: Some versions support Ethernet communication.

I/O Channels:
Provides multiple input/output channels, supporting up to 16 I/O channels (depending on the specific model).

Display and Diagnostics:

• 4-digit matrix display capable of showing requested system information.
• Built-in self-diagnostic functions, including a fail-safe watchdog and fault shutdown mechanisms.

Electrical Parameters:

• Input/Output Voltage: 24 VDC
• Maximum Current: Approximately 1.5 A to 2 A

Weight:
Approximately 0.15 kg to 0.34 kg.

Summary

The HIMA F8650E is an industrial control module specifically designed for high-safety applications. With its dual-microprocessor architecture, multiple communication interfaces, and powerful self-diagnostic capabilities, it serves as a key component for building highly reliable and safety-critical process control systems.
