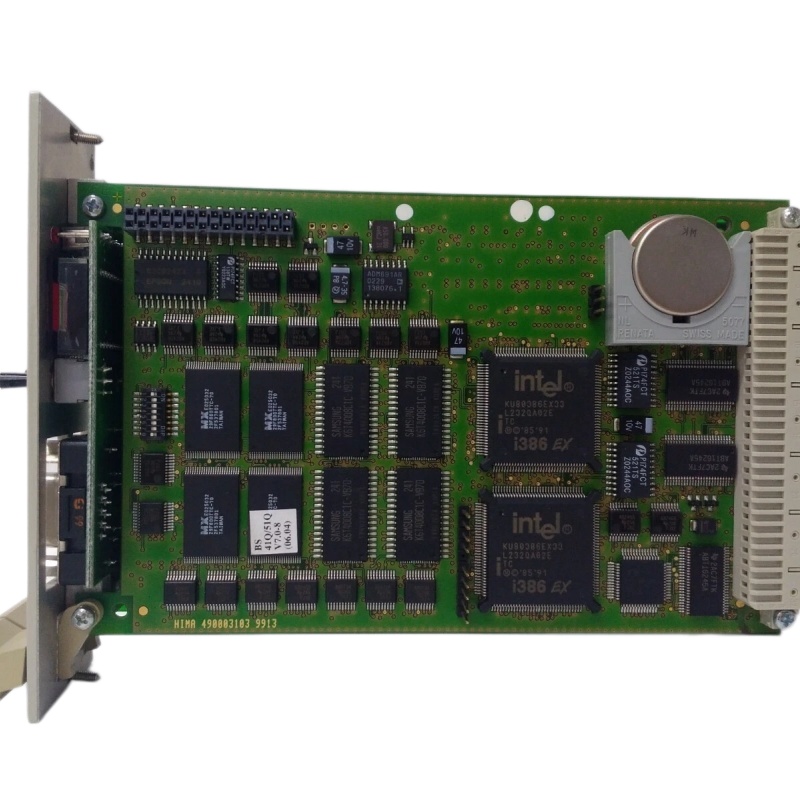

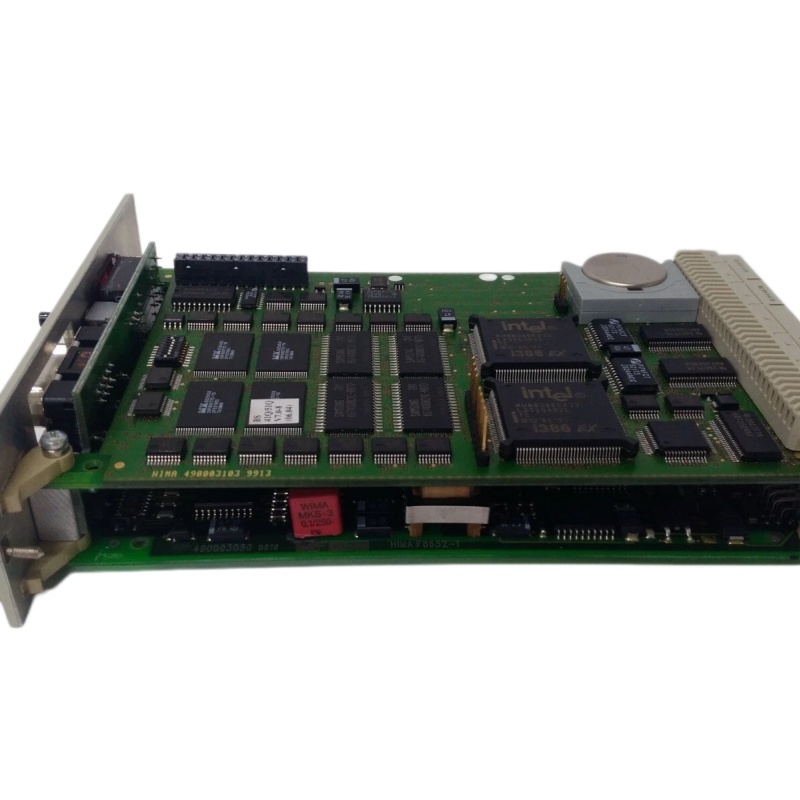

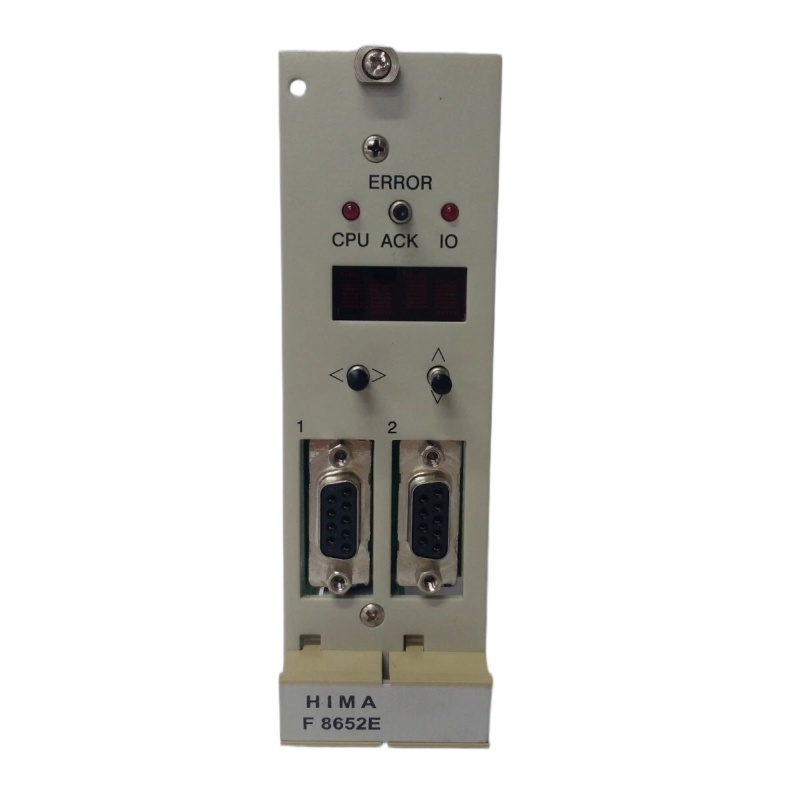

HIMA F8652E core component

HIMA F8652E is a core component of the Safety Instrumented System (SIS) produced by HIMA. It belongs to the F8 series Central Processor Module (CPM).

This module is one of the most critical parts of the HIMA system, primarily responsible for executing safety logic operations and monitoring and controlling on-site safety input/output devices. It is widely used in high-risk industries such as petrochemicals, natural gas, power generation, pharmaceuticals, and manufacturing for process control and safety interlocking.

1. Core Functions

Safety Logic Processing:
Executes safety functions up to SIL 3 and PL e (Cat.4) levels, including emergency stop (E-Stop), safety interlocking, speed monitoring, and other critical safety tasks.

Redundant Design:
Utilizes a dual-core or multi-core redundant architecture to ensure the system can continue operating safely even in the event of a single-point failure.

Communication and Integration:
Supports industrial communication protocols such as Ethernet (PROFIsafe, PROFINET, Ethernet/IP) and PROFIBUS, enabling easy integration with fieldbus systems.

2. Technical Specifications

Processor:
Typically equipped with a high-performance NXP MPC8572E or dual-core PowerPC processor, with clock speeds up to 1 GHz or higher.

Storage:
Built-in 2 GB Flash memory for storing programs and configuration files.

Memory:
Includes 128 MB DDR or 512 MB DDR2/DDR3 memory to ensure stable data processing.

Input/Output:
Supports up to 16 safety digital inputs and 16 safety digital outputs (depending on the specific model configuration).

Operating Environment:
Industrial-grade design with an operating temperature range typically from –20°C to +60°C (some models support –40°C to +70°C), providing strong resistance to heat and vibration.

3. Typical Application Scenarios

Process Control:
Process control and safety monitoring in chemical plants.

Power Systems:
Safety protection for power plants and power distribution systems.

Manufacturing:
Safety interlocking for automated production lines and robotic systems.

Oil and Gas:
Explosion protection and safety monitoring at wellheads and oil/gas pipelines.
