⚙️ 1. Basic Product Information

• Model: HIMA K9203 (also referenced as part number 996920302 in some contexts) .
• Product Type: High-Integrity Pressure Protection System (HIPPS) or industrial safety controller, designed for safety-critical applications .
• Primary Function: Provides safety control in industrial processes (e.g., pressure protection, burner control, boiler protection) with a focus on high reliability and compliance with international safety standards .

📊 2. Key Technical Parameters

• Safety Certification: SIL 3 (IEC 61508) and AK6/TÜV certification, ensuring compliance with rigorous safety standards .
• Diagnostic Coverage: High diagnostic coverage (99.99%) for hardware and software, with real-time fault detection .
• Operating Temperature Range: -20°C to +60°C (Note: This is based on the HIMA K9203A variant; the K9203 may have similar specifications) .
• Power Supply: Typically 24V DC .
• Power Consumption: Approximately 10W (based on HIMA K9203A variant) .
• Dimensions: 200mm × 150mm × 50mm (based on HIMA K9203A variant) .

🏗️ 3. Design and Architecture

• Modular Design: Allows for easy expansion and maintenance. Supports various I/O modules and communication protocols .
• Redundancy: Supports redundant architectures (e.g., quadruple modular redundancy [QMR] in HIMA H41q/H51q systems) for high availability .

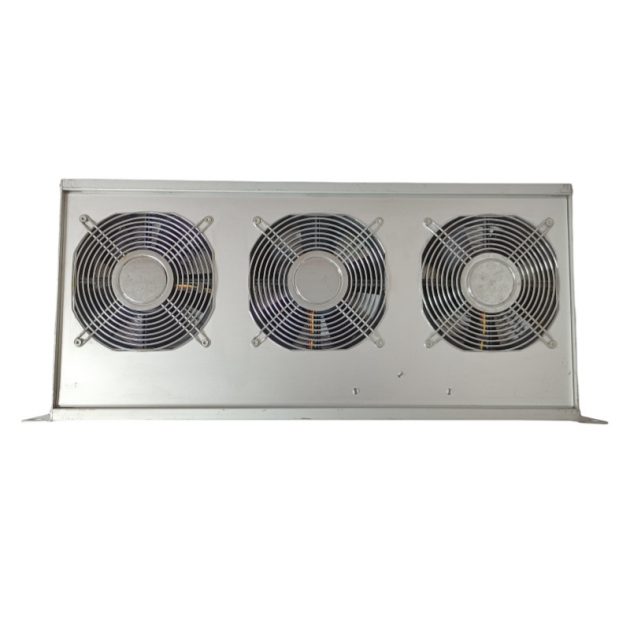

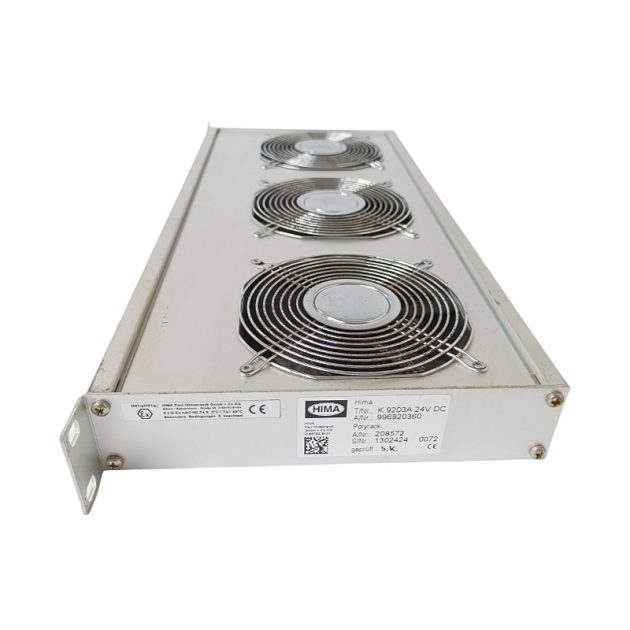

• Cooling System: Some variants (e.g., K9203 996920360) include a cooling fan module for efficient heat dissipation .
• Enclosure Protection: IP20 rating, suitable for industrial environments .

🔌 4. I/O Modules and Communication

• Supported I/O Modules:
  • Analog Input (e.g., F6217): 8-channel, 4–20 mA DC input, SIL 3 certified .
  • Digital Input (e.g., F3236): 16-channel, dry contact input, SIL 3 certified .
  • Digital Output (e.g., F3330): 8-channel, 0.5A load capacity, SIL 3 certified .
• Communication Protocols:
  • Supports Modbus TCP/IP, OPC UA, and proprietary HIMA protocols .
  • Ethernet modules (e.g., F8627X) provide SIL 3-certified communication .
