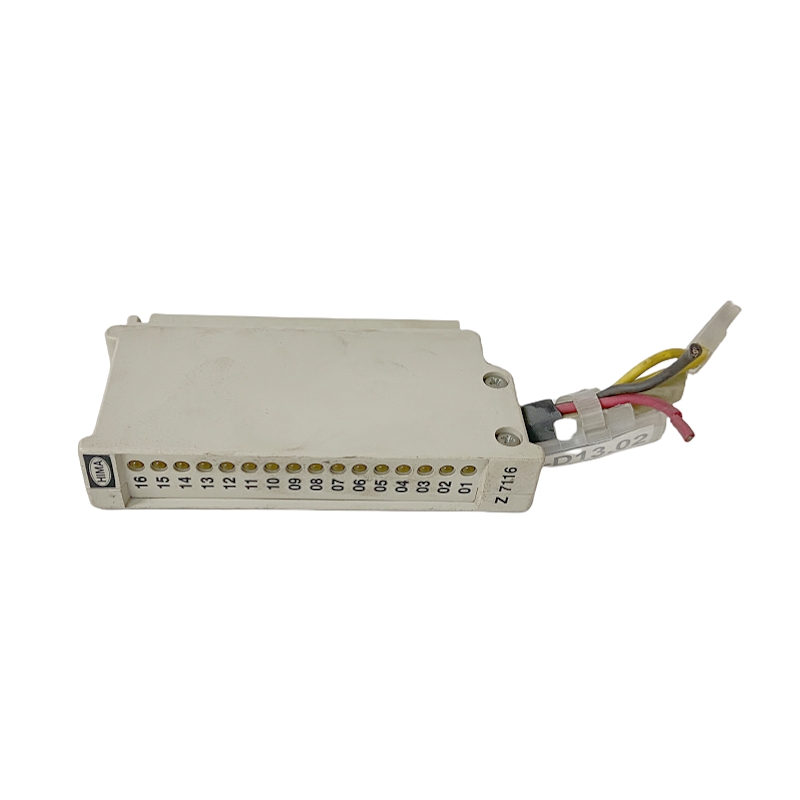

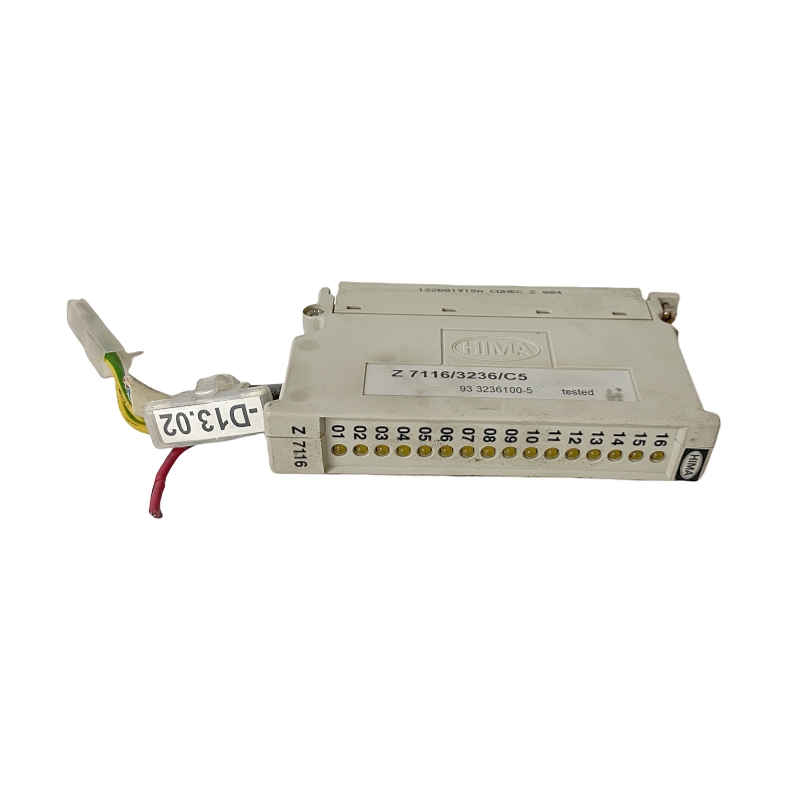

HIMA Z7116/3236/C5

🛠️ HIMA Z7116/3236/C5 Technical Specifications Overview

The HIMA Z7116/3236/C5 is a high-performance industrial automation control module designed for safety control systems. Below are the detailed technical specifications compiled based on available information:

Feature Category	Detailed Specification Description
Model Number	HIMA Z7116/3236/C5
Brand	HIMA
Form Factor	Modular
Mounting	Snap-on mounting onto HIMA HIMATRIX I/O modules, or connection via screw-clamp terminal blocks
Input Voltage	24V DC
Operating Temp.	-20℃ to +70℃ (Some sources mention -40℃ to +85℃, possibly referring to different components or operating conditions)
Communication	Supports multiple industrial protocols, including PROFIBUS, Modbus, Ethernet, etc.
Safety Certs.	Complies with IEC 61508 standard, certified for SIL 3 or SIL 4
Processing Power	Associated central modules use dual clock-synchronized microprocessors (e.g., Intel 386EX, 32-bit, 25MHz clock frequency)
Memory Capacity	Associated central modules: OS Flash EPROM 1MB, User Program Flash EPROM 1MB, Data SRAM 1MB
I/O Capacity	16-channel digital input (when paired with an F3236 module)
Diagnostics	LED status indicators, four-digit matrix diagnostic display (on some central modules)
Mechanical	Compact dimensions (e.g., cable plug approx. 8.4cm x 7.7cm x 5.2cm), light weight (module ~1kg, cable plug ~0.5kg)
Special Features	Supports redundant design, hot-swapping, fail-safe watchdog (Output 24V, 500mA, short-circuit protected)

⚙️ Detailed Description

1. Overview & Purpose:
   Its core functions include safety control, redundant configuration, flexible programming, and communication capabilities. It is widely used in Emergency Shutdown Systems (ESD), Fire & Gas Systems (F&G), process control, and machinery safety control. This module typically works in conjunction with other HIMA components (like the F3236 digital input module) to form a complete safety solution.
2. Application Fields:

          This module is widely used in industries with extremely high safety and reliability requirements, including:

• • Oil & Gas: Emergency Shutdown (ESD) and Fire & Gas (F&G) systems on offshore platforms, refineries, and pipelines.
  • Chemical & Petrochemical: Safety interlocks and critical process control in process automation.
  • Power Generation: Turbine control, generator excitation control.
  • Metallurgy & Manufacturing: Safety monitoring and emergency shutdown systems for large machinery.
  • Transportation: Railway signaling systems.

HIMA Company Introduction

HIMA is a leading global manufacturer of safety control systems, headquartered in Landau, Germany.

The company was founded in 1908 and has a history of over 110 years. HIMA is committed to providing safe and reliable solutions for industrial automation applications, and its products are widely used in industries such as oil and gas, chemical, power, steel, and automotive.
