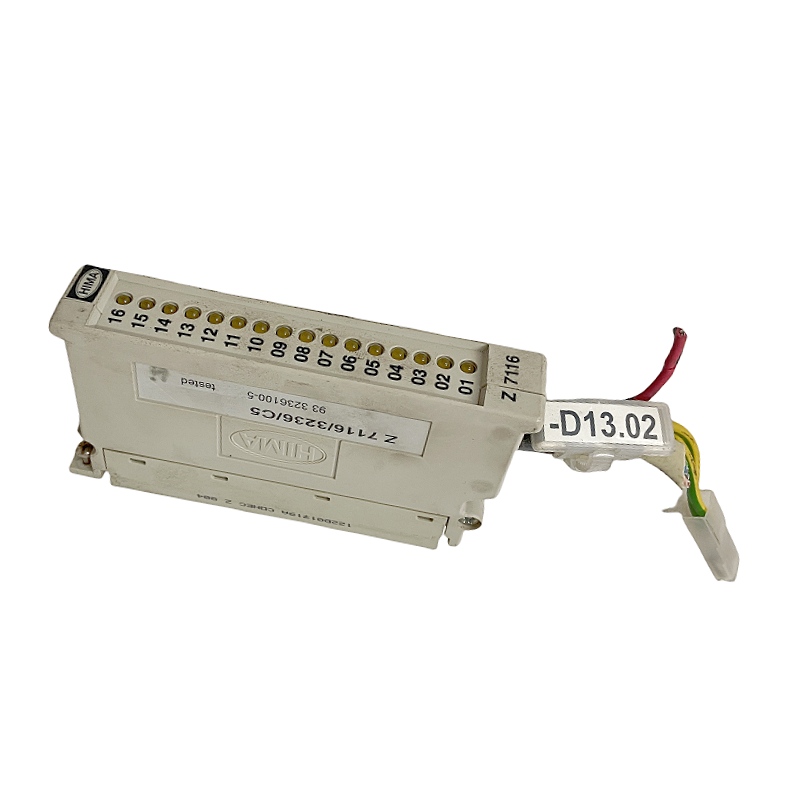

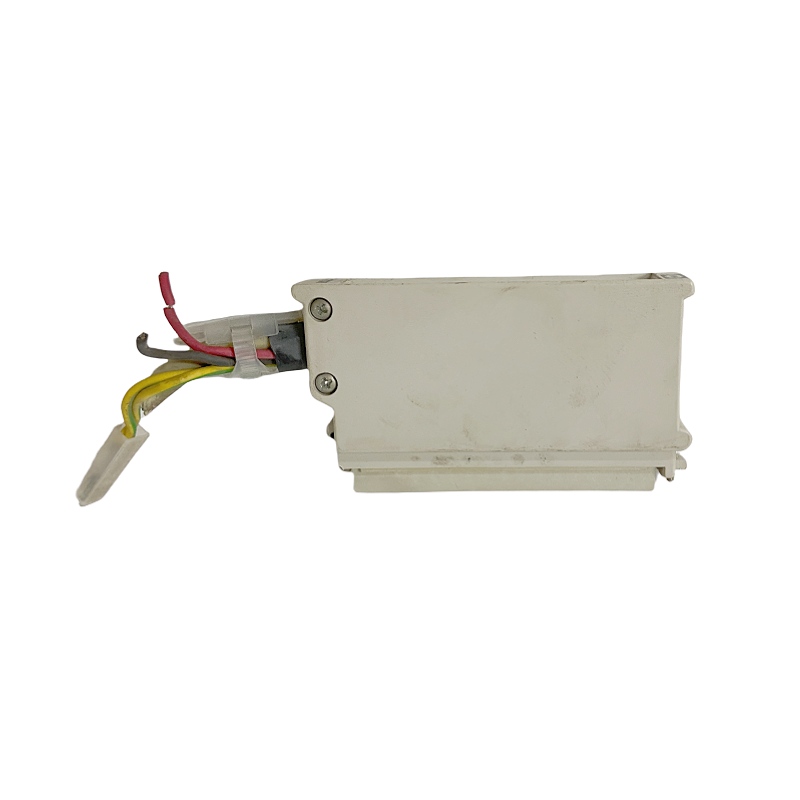

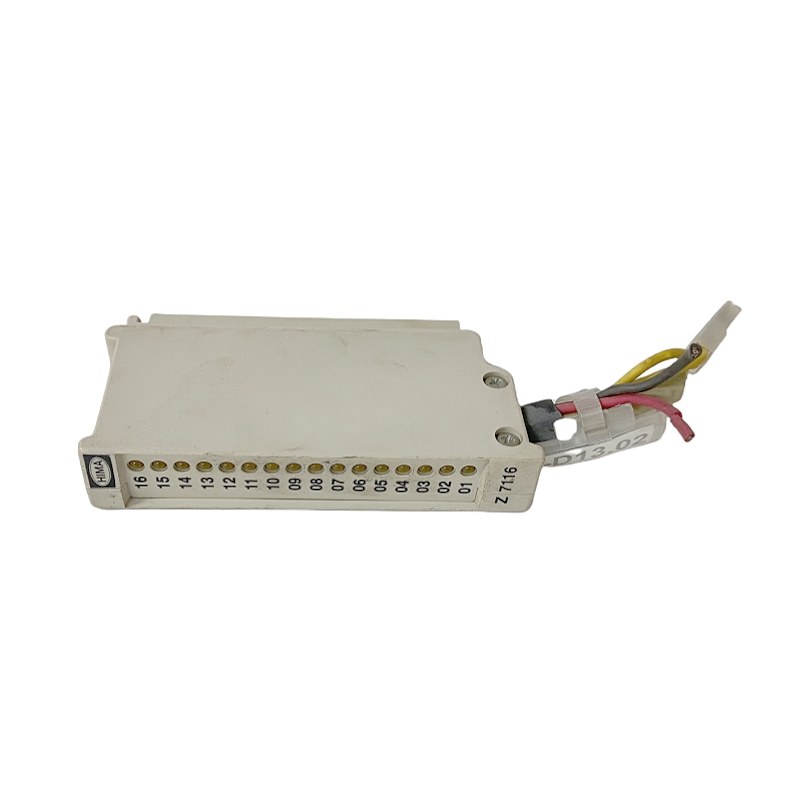

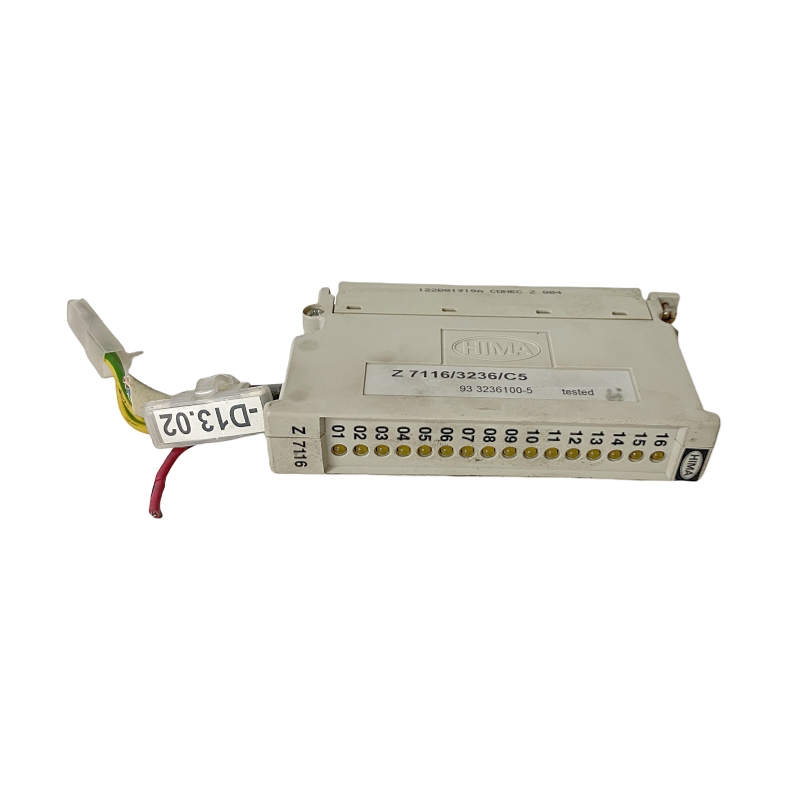

HIMA Z7116

🔧 1. General Overview

Product Model: HIMA Z7116
Manufacturer: HIMA (Germany)
Type: Industrial controller module, specifically designed for safety-critical systems .
Primary Function: Used in safety control systems like Emergency Shutdown (ESD), fire and gas detection, and machinery safety control . It is known for high reliability and often carries SIL3/SIL4 certifications according to IEC 61508 standards .

⚙️ 2. Key Technical Parameters

The specifications for the Z7116 are spread across different sources, and some parameters might vary or be specified for different contexts. The most consistent ones are listed below.

Parameter Category	Specification
Input Voltage	24V DC
Operating Temperature	-40°C to +70°C (most common); A range of -40°C to +85°C is also listed.
Communication Interfaces	Supports Ethernet, Modbus, Profibus, and other industrial protocols.
Safety Certification	SIL 3 / SIL 4 (IEC 61508)
I/O Points	50 (mentioned in one source, but context suggests this might be a placeholder).
Structure/Form	Modular
Weight	1 kg

📊 3. Detailed Functional Specifications

Design: Features a modular design for easy installation, maintenance, and potential hot-swapping in redundant configurations .
Processing: While specific CPU details aren’t listed for the Z7116 itself, related HIMA central modules (e.g., F8650X) use dual clock-synchronized 32-bit microprocessors (Intel 386EX) .
Memory: Related central modules have 1 MB Flash EPROM for the operating system, 1 MB Flash EPROM for user programs, and 1 MB SRAM for data .
Diagnostics: Typically includes LED indicators for status and fault diagnosis .
Redundancy: Designed to support redundant configurations for enhanced system availability and fault tolerance .

📋 4. Additional Attributes (From Various Sources)

Some search results list other attributes, but their context and accuracy concerning the specific Z7116 safety controller should be verified:

Output Frequency: 2645A (likely a misattribution or error) .
Processing Speed: 150/60Hz (likely a misattribution or error) .
Program Capacity: 50000 .
Data Capacity: 100 .
Environmental Humidity: -40°C to 85°C.

🏭 5. Application Fields

The HIMA Z7116 is engineered for critical safety applications in various industries :

Oil and Gas (e.g., platform shutdown, pipeline protection)
Chemical and Petrochemical plants
Power Generation
Metallurgy
Manufacturing (machine safety)
