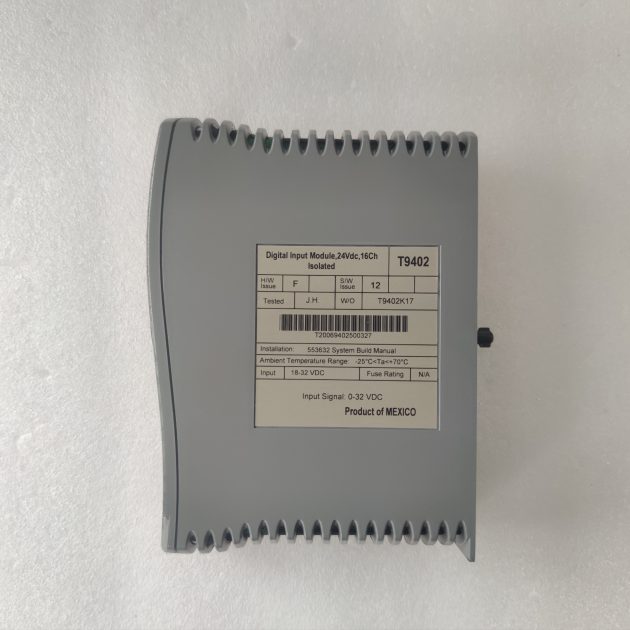

ICS T9402
ICS TRIPLEX T9402 Series Overview
The ICS TRIPLEX T9402 series (now under Honeywell Process Solutions) is a high-reliability modular controller family designed for industrial automation, process control, and DCS/PLC applications. The series includes a variety of modules such as digital input, digital output, mixed I/O, and communication gateways. Each model adopts a redundant architecture, programmable logic, and comprehensive field/network interfaces, ensuring real-time and reliable monitoring and control even under harsh industrial environments.
1. Key Features
| Feature | Description | Reference |
|---|---|---|
| Multi-channel I/O | Supports 16–40 digital input/output channels; some models provide 32 analog I/O channels for connection to multiple sensors and actuators simultaneously. | |
| High Programmability | Equipped with a 32-bit RISC CPU, 1 MB RAM, and 2 MB Flash memory. Supports multiple programming languages and development tools for secondary development and customized control logic. | |
| Redundant Safety Design | Utilizes Triple Modular Redundancy (TMR) architecture to achieve channel-level fault tolerance. Built-in self-diagnosis, fault detection, and fault-tolerant mechanisms comply with IEC 61508 SIL 1-3 safety standards. | |
| Comprehensive Communication Interfaces | Supports Ethernet, Modbus TCP/RTU, CAN, RS-232/RS-485, USB, and other field/network protocols, enabling seamless integration with upper-level systems such as SCADA and MES. | |
| Real-time Control & SOE | Output state changes can trigger Sequence-of-Events (SOE) reporting with 1 ms resolution, meeting high-speed process monitoring requirements. | |
| Environmental Adaptability | Operating temperature range -40 °C to +70 °C (some models -20 °C to +60 °C), IP65 protection rating, vibration and shock resistance, suitable for harsh industrial environments. | |
| Modular & Scalable Design | Compact plug-in design (approx. 120 mm × 80 mm × 35 mm or 140 mm × 60 mm × 24 mm), weight 0.3-0.4 kg, easy to install in control cabinets and expand within systems. | |
| Power & Consumption | Powered by 24 V DC, typical power consumption ≈ 4 W, heat dissipation 13.6 BTU/h, supports dual-redundant power supply for reliability. |
2. Main Technical Specifications (Example: Digital Input/Output Module)
| Parameter | Value | Description |
|---|---|---|
| Input Channels | 16 digital / 8–32 analog | |
| Output Channels | 16–40 digital | |
| Input Voltage Range | 0–32 V DC (digital) | |
| Output Voltage Range | 5–35 V DC, max 0.5 A (digital output) | |
| Isolation Voltage | 2500 VAC (digital output) | |
| Communication Protocols | Modbus RTU/TCP, Ethernet/IP, CAN, Profibus etc. | |
| Operating Temperature | -40 °C ~ +70 °C (some models -20 °C ~ +60 °C) | |
| Protection Rating | IP65 | |
| Dimensions | 120 mm × 80 mm × 35 mm (for PLC/DCS models) | |
| Weight | 0.3–0.4 kg |
3. Typical Application Scenarios
- Process Control Systems (DCS):
Real-time monitoring and redundant safety control in continuous industries such as chemical, petrochemical, and metallurgy. - Discrete Manufacturing:
High-speed I/O acquisition and actuator control in machinery, electronics, and packaging production lines. - Building & Energy Management:
Works with SCADA for building automation, power distribution monitoring, and energy metering. - Safety Instrumented Systems (SIS):
Supports critical safety loops meeting SIL 1-3 integrity requirements. - Remote Monitoring & Data Acquisition:
Integrates with upper-level systems via Ethernet/Modbus for cloud-based monitoring and historical data storage.
Summary
The ICS TRIPLEX T9402 series, featuring multi-channel I/O, redundant safety architecture, comprehensive communication capability, and industrial-grade environmental resilience, serves as a reliable core module in industrial automation and process control.
Whether deployed in new DCS/PLC systems or used to upgrade existing platforms, the T9402 delivers efficient, stable, and secure control solutions.
***************************************************
