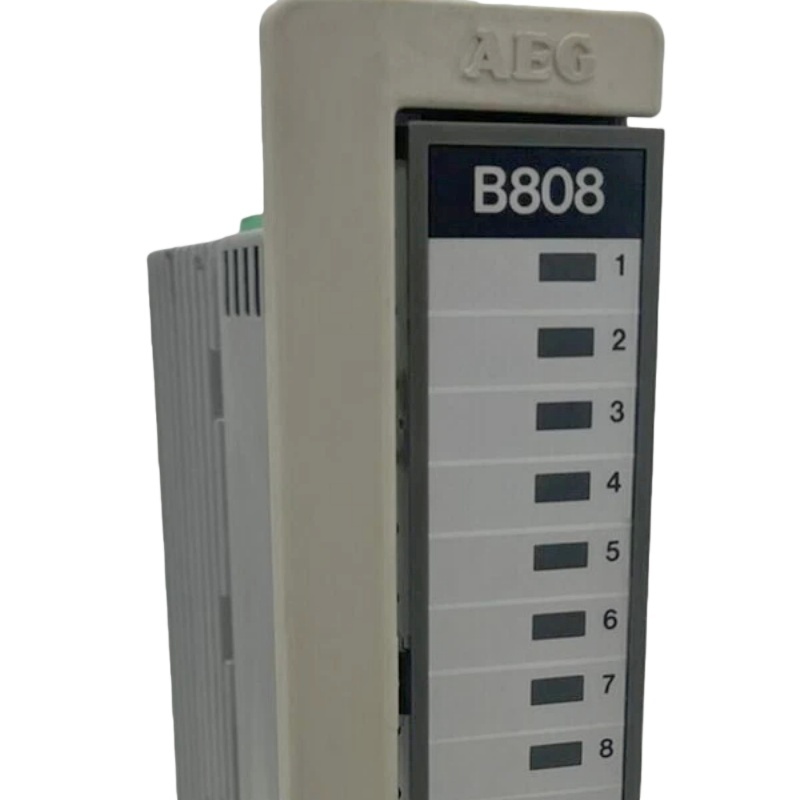

SCHNEIDER AS-B808-016

AS-B808-016 is a DC Isolated Output Module in the Modicon 800 series PLC (Programmable Logic Controller) product line from Schneider Electric.

The main technical specifications and features of this module are as follows:

1. Basic Characteristics

Model: AS-B808-016
Product Type: Modicon 800 series I/O module
Function: Provides 16 channels of DC isolated outputs
Applicable Voltage: 12 V to 250 V DC (supports commonly used industrial DC voltages such as 24 V and 48 V)

2. Electrical Specifications

Output Type: Isolated output, meaning the output side is electrically completely isolated from the input side, effectively preventing ground loop interference
Output Voltage Range: 12 V – 250 V DC
Output Current Capacity:
- Maximum continuous current: 0.75 A at 250 V DC, or 1.5 A at 48 V DC
Surge Current Protection: 5 A for 10 ms

3. Performance Characteristics

Response Time:
- OFF to ON: 1 ms
- ON to OFF: 5 ms
Overcurrent / Surge Protection: Equipped with an internal fuse for overcurrent protection
Space Requirement: Occupies one slot, suitable for high-density installations

4. Typical Applications

Industrial Automation: Control of DC loads such as solenoid valves, indicator lamps, and heating elements
Process Control: Applications requiring electrical isolation to avoid interference, such as process instrumentation control
Energy Management: Suitable for DC control modules in power and energy systems

5. Compatibility

Series Compatibility: Compatible with Modicon 800 series CPUs and other I/O modules; supports use in combination with 230 V AC input modules (such as AS-B809-016)

Summary

The AS-B808-016 is a high-performance DC isolated output module designed specifically for the Modicon 800 series. It offers fast response times and excellent electrical isolation, making it well suited for a wide range of industrial control environments.
